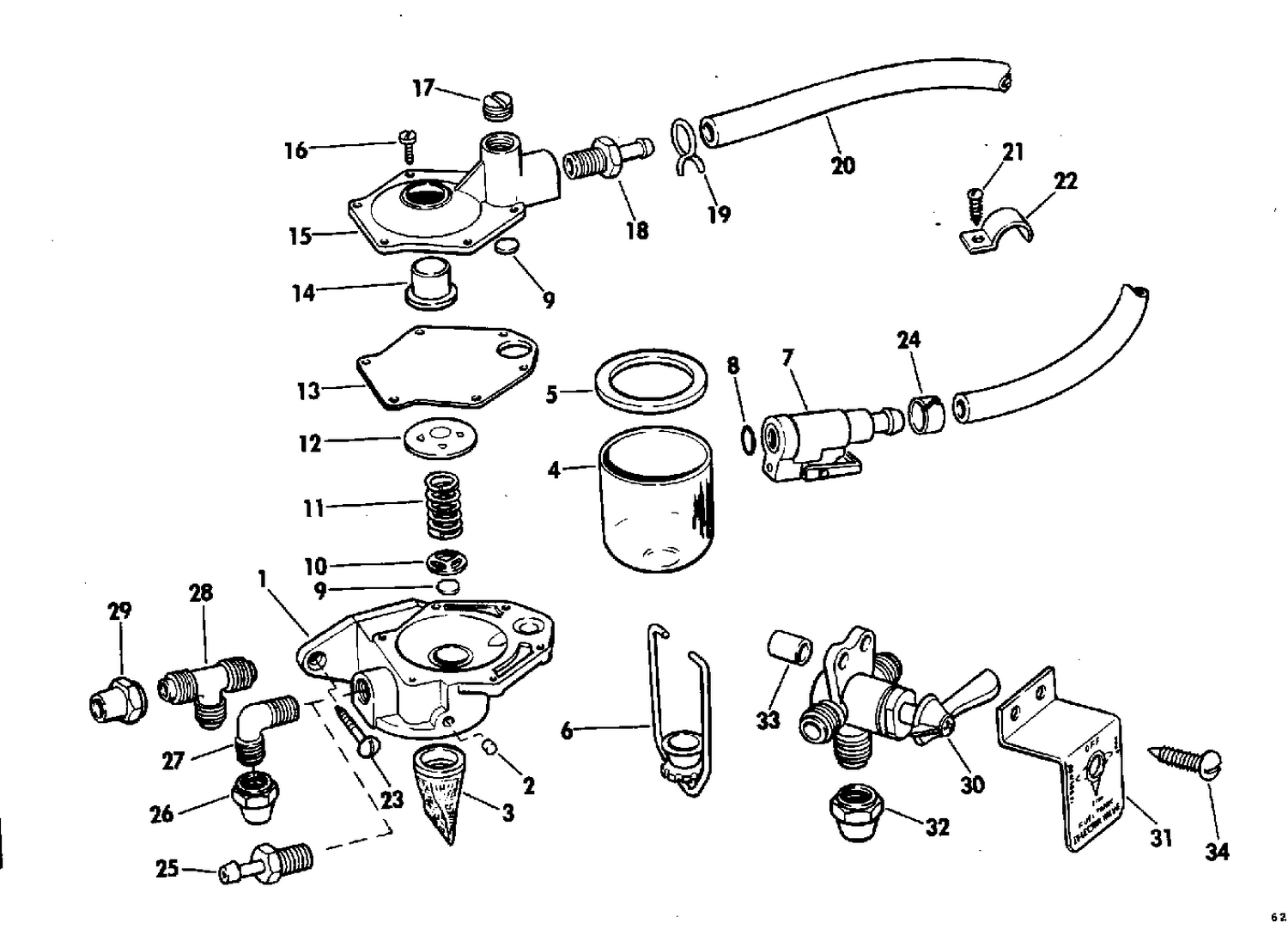

PRIMER PUMP KIT
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0378735 | BODY, Plug and filter |
| 17 | 0307543 | PLUG, Pipe |
| 26 | 3003608 | NUT, Flare |
| 28 | 0121198 | CONNECTOR, "t" fuel line |
| 30 | 0975090 | VALVE, Three way |
| 31 | 0900726 | PLATE, Instruction |
| 33 | 0121200 | SPACER |
| 0171643 | 0171643 | TEE- ADAPTER KIT FOR TWIN MOTOR INSTALLATION ONLY |
| 0320107 | 0320107 | ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 0377381 | 0398540 | PRIMER PUMP KIT ASSY. This part replaces 0377381. |
| 0387122 | 0387122 | ELBOW & NUT KIT |
