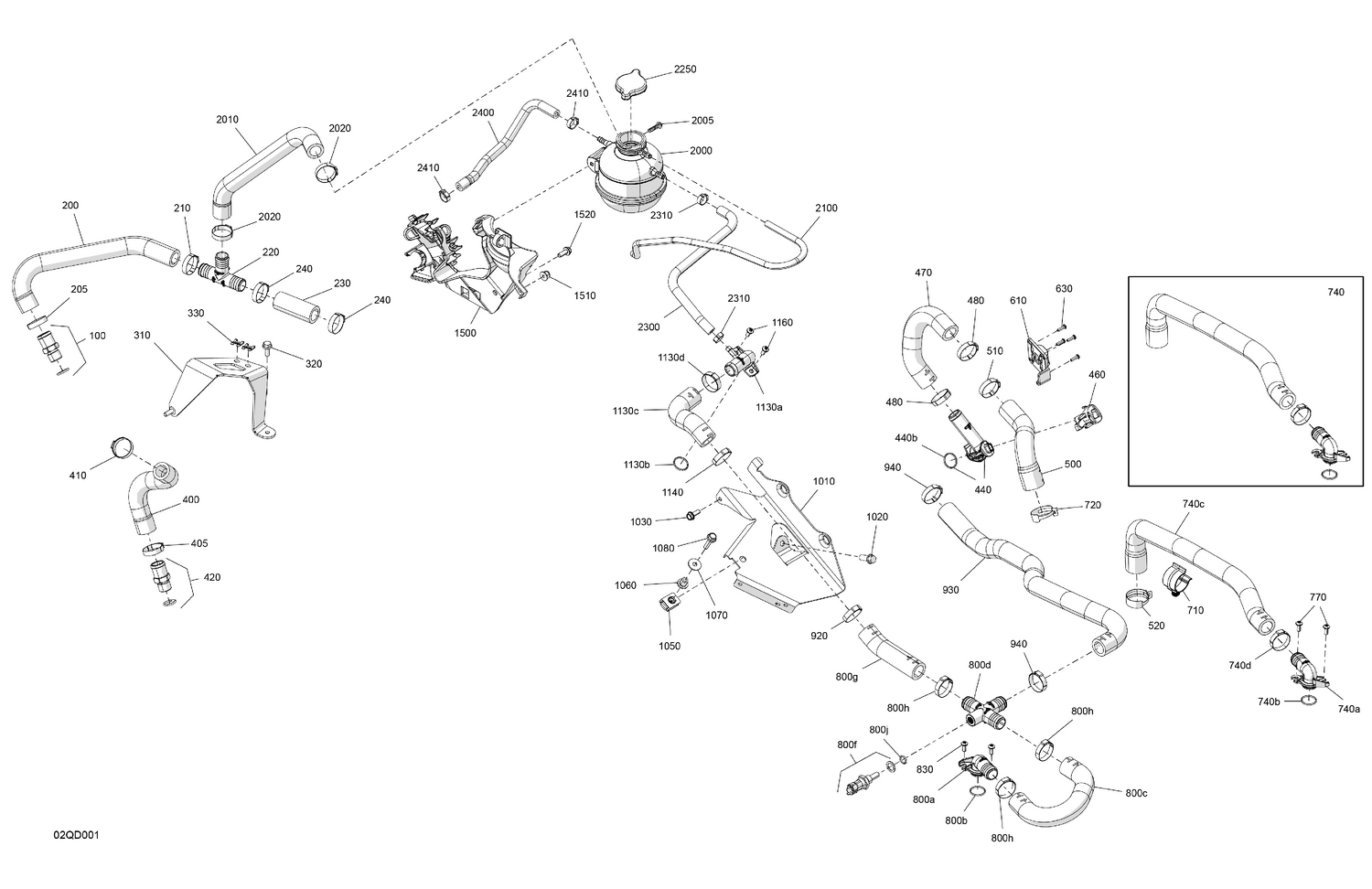

02- Engine - Cooling
Parts (67)
| Ref | Part Number | Description |
|---|---|---|
| 100 | 509001406 | Coolant Manifold Ass'y |
| 200 | 509001352 | Hose |
| 205 | 293650165 | Oetiker Gear Clamp |
| 210 | 293650099 | Oetiker Gear Clamp |
| 220 | 509001334 | T Fitting |
| 230 | 509001353 | Hose |
| 240 | 293650099 | Oetiker Gear Clamp |
| 310 | 509001419 | Pump Support |
| 320 | 207661644 | Hex. Flange Screw M6 X 16 |
| 330 | 509001420 | External Retaining Ring |
| 400 | 509001358 | Hose |
| 405 | 293650165 | Oetiker Gear Clamp |
| 410 | 293650099 | Oetiker Gear Clamp |
| 420 | 509001406 | Coolant Manifold Ass'y |
| 440b | 293300248 | Seal |
| 460 | 509001428 | Lock |
| 470 | 509001434 | Hose |
| 480 | 293650165 | Oetiker Gear Clamp |
| 500 | 509001362 | Hose |
| 510 | 293650165 | Oetiker Gear Clamp |
| 520 | 293650166 | Norma Spring Clamp |
| 610 | 509001363 | Valve Support |
| 630 | 250001269 | Torx Screw K35 X 12 |
| 710 | 275500526 | Retainer |
| 720 | 293650166 | Norma Spring Clamp |
| 740a | 509001390 | Coolant Manifold |
| 740b | 293300248 | Seal |
| 740c | 509001364 | Hose |
| 740d | 293650165 | Oetiker Gear Clamp |
| 770 | 250001241 | Screw Torx M5 X 12 |
| 800a | 509001390 | Coolant Manifold |
| 800b | 293300248 | Seal |
| 800c | 509001374 | Hose |
| 800d | 509001400 | Fitting |
| 800f | 278002895 | Temperature Sensor |
| 800g | 509001375 | Hose |
| 800h | 293650165 | Oetiker Gear Clamp |
| 800j | 293300281 | Seal |
| 830 | 250001241 | Screw Torx M5 X 12 |
| 920 | 293650165 | Oetiker Gear Clamp |
| 930 | 509001376 | Hose |
| 940 | 293650165 | Oetiker Gear Clamp |
| 1010 | 509001463 | Support |
| 1020 | 250001046 | Screw-Hex.Flange M10 X 20 S.Grip |
| 1030 | 250001062 | Hex. Flanged Screw M6 X 16 |
| 1050 | 250100208 | Panel Nut M6 X 1.0 |
| 1060 | 293900151 | Bushing |
| 1070 | 250200082 | Flat Washer |
| 1080 | 207562544 | Hex. Flange Screw M6 X 25 |
| 1130a | 509001381 | Coolant Manifold |
| 1130b | 293300248 | Seal |
| 1130c | 509001378 | Hose |
| 1130d | 293650165 | Oetiker Gear Clamp |
| 1140 | 293650165 | Oetiker Gear Clamp |
| 1160 | 250001241 | Screw Torx M5 X 12 |
| 1500 | 509001423 | Coolant Tank Support |
| 1510 | 233261416 | Elastic Flanged Nut M6 X 1.0 |
| 1520 | 250001062 | Hex. Flanged Screw M6 X 16 |
| 2000 | 509001033 | Cooling Tank |
| 2005 | 241152060 | Hex. Flange Screw K50 X 20 |
| 2010 | 509001365 | Hose |
| 2020 | 293650099 | Oetiker Gear Clamp |
| 2100 | 219704360 | Hose 6 Mm 15000Mm Long |
| 2250 | 509000187 | Pressure Cap |
| 2300 | 509001366 | Vent Hose |
| 2310 | 293650047 | Crimp Clamp, 15.3-706R |
| 2400 | 509001367 | Vent Hose |
