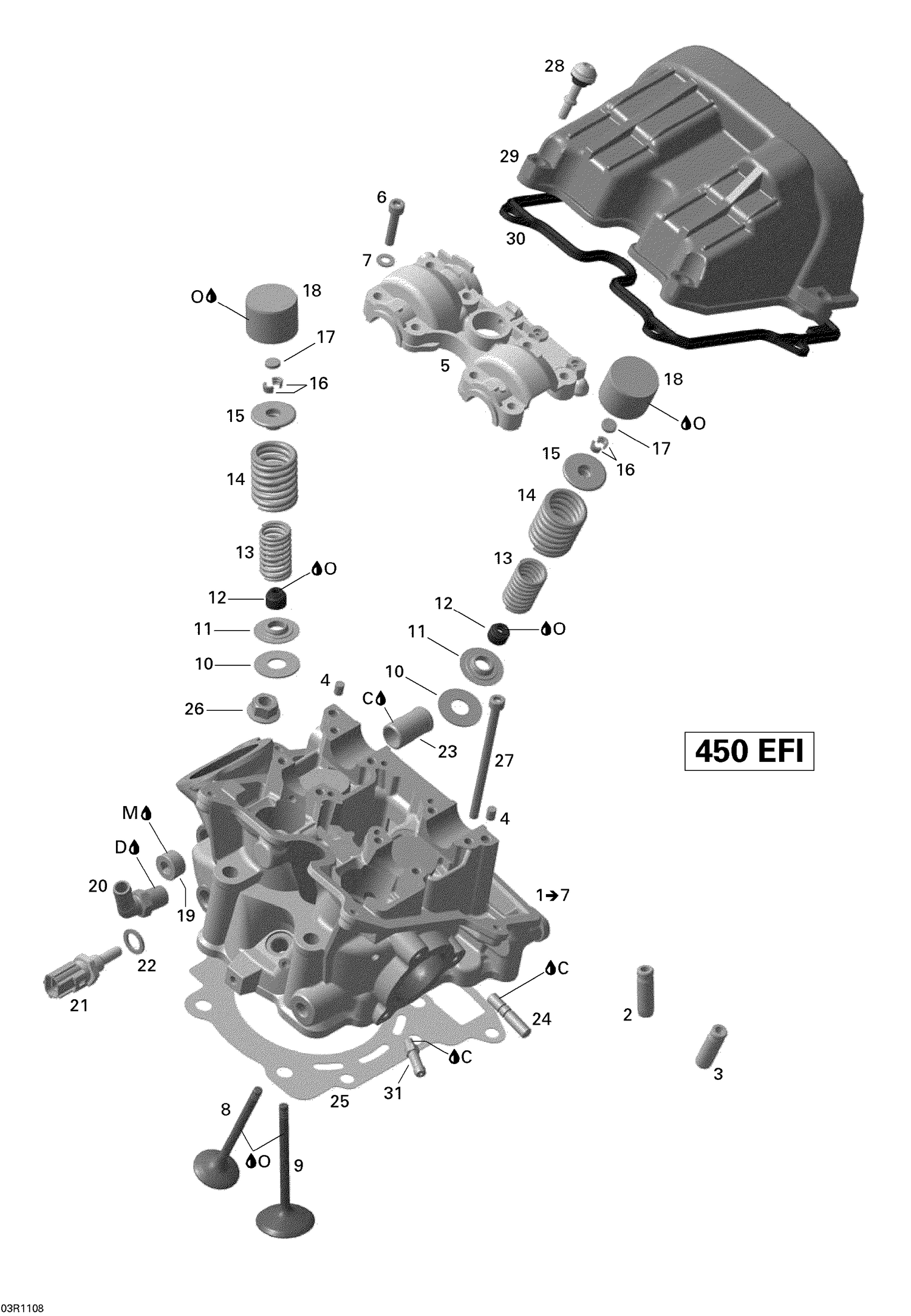

| Ref | Part Number | Description |
|---|
| B |
293800060 |
Loctite 243, 10 ml |
| C |
219703000 |
Sealant Loctite 648 This part replaces 413711400. |
| M |
420297433 |
Molykote G-N, 50 g |
| 2 |
420253926 |
VALVE GUIDE, EXHAUST - Call your local BRP dealership |
| 3 |
420253921 |
VALVE GUIDE, INTAKE - Call your local BRP dealership |
| 4 |
420232210 |
Center Pin |
| 5 |
Not |
Available As Spare Part - Camshaft Bridge |
| 6 |
205063044 |
Socket Head Screw M6 X 30 |
| 7 |
420927945 |
FLAT WASHER - Call your local BRP dealership |
| 8 |
420254027 |
Exhaust Valve 31 mm This part replaces 420254026. |
| 9 |
420254295 |
Intake Valve, 38 mm |
| 10 |
420227980 |
THRUST WASHER - Call your local BRP dealership |
| 11 |
420253967 |
Valve Spring Shim This part replaces 420253965. |
| 12 |
420230510 |
Seal |
| 13 |
420238201 |
Valve Spring, Inner |
| 14 |
420238211 |
VALVE SPRING, OUTER - Call your local BRP dealership |
| 15 |
420253957 |
Valve Spring Retainer |
| 16 |
420253645 |
Valve Cotter |
| 17 |
420253974 |
SHIM 2.3 - Call your local BRP dealership |
| 17 |
420253975 |
Shim 2.35 |
| 17 |
420253976 |
SHIM 2.4 - Call your local BRP dealership |
| 17 |
420253977 |
SHIM 2.45 - Call your local BRP dealership |
| 17 |
420253978 |
SHIM 2.5 - Call your local BRP dealership |
| 17 |
420253979 |
SHIM 2.55 - Call your local BRP dealership |
| 17 |
420253980 |
SHIM 2.6 - Call your local BRP dealership |
| 17 |
420253981 |
SHIM 2.65 - Call your local BRP dealership |
| 17 |
420253982 |
SHIM 2.7 - Call your local BRP dealership |
| 17 |
420253983 |
SHIM 2.75 - Call your local BRP dealership |
| 17 |
420253984 |
SHIM 2.8 - Call your local BRP dealership |
| 17 |
420253985 |
SHIM 2.85 - Call your local BRP dealership |
| 17 |
420253986 |
SHIM 2.9 - Call your local BRP dealership |
| 17 |
420253987 |
SHIM 2.95 - Call your local BRP dealership |
| 17 |
420253988 |
SHIM 3.0 - Call your local BRP dealership |
| 17 |
420253989 |
SHIM 3.05 - Call your local BRP dealership |
| 18 |
420253990 |
Tappet Valve |
| 19 |
420240170 |
Plug Screw M18 X 1.5 - Call your local BRP dealership |
| 20 |
420922242 |
Angular Tube |
| 21 |
420274040 |
Temperature Sensor |
| 22 |
420250640 |
Copper Washer |
| 23 |
420224090 |
Elbow Fitting |
| 24 |
420241560 |
STUB M8 X 16/20 - Call your local BRP dealership |
| 25 |
420650210 |
Cylinder Head Gasket |
| 26 |
233101414 |
Hex. Flange Nut M10 |
| 27 |
420241602 |
Socket Head Screw M6 X 100 This part replaces 420241601. |
| 28 |
420211662 |
VALVE COVER - Call your local BRP dealership |
| 29 |
420241625 |
Distance Screw |
| 30 |
420650345 |
Valve Cover Gasket |
| 31 |
420924722 |
HOSE NIPPLE - Call your local BRP dealership |
