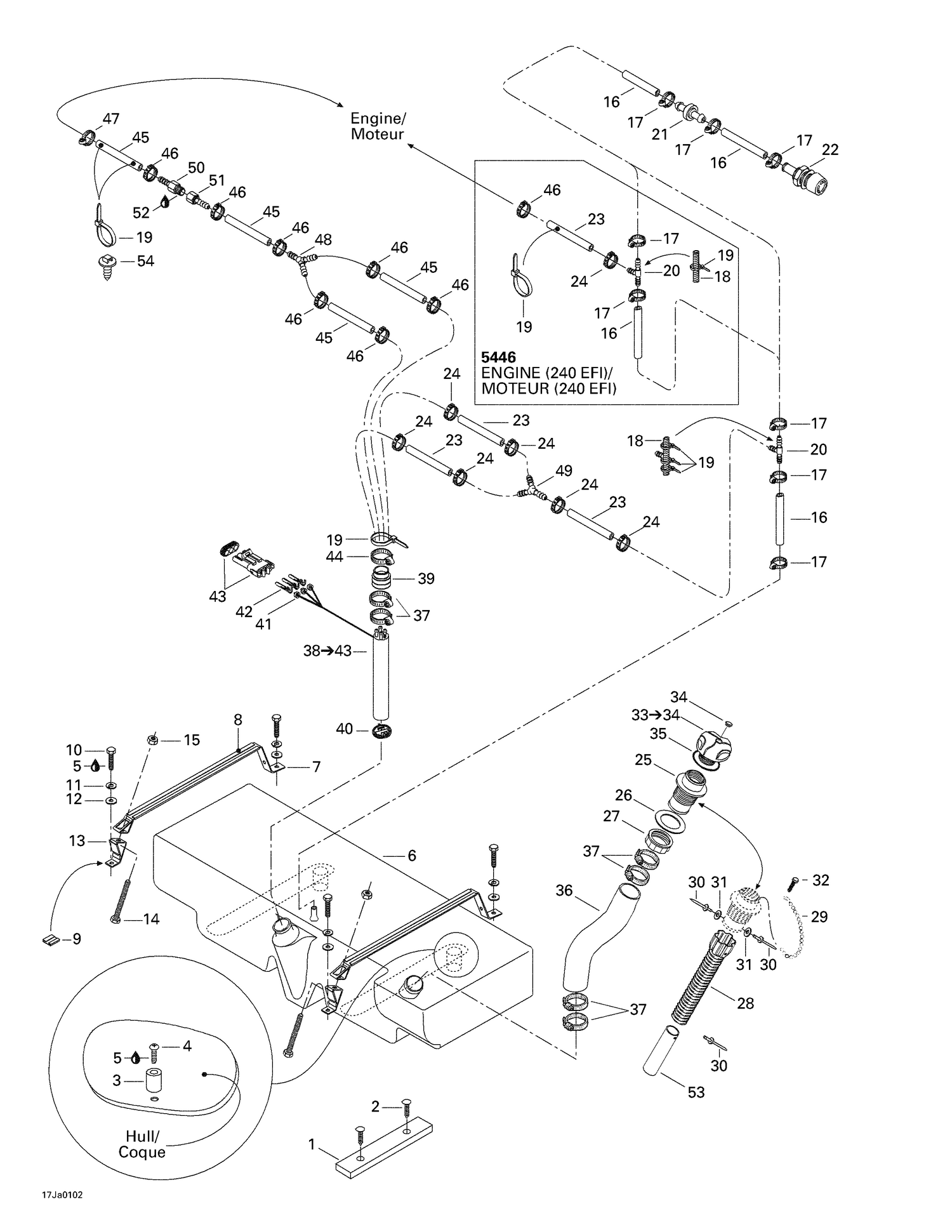

| Ref | Part Number | Description |
|---|
| 1 |
293830021 |
Rubber Pad |
| 2 |
293730006 |
Black, Dart |
| 3 |
204560039 |
Rubber Bumper |
| 4 |
208653560 |
Phillips Screw M5 X 35 |
| 5 |
293800005 |
Loctite 271, 10 ml |
| 6 |
204560073 |
Fuel Tank, Plastic |
| 7 |
204560011 |
Fuel Tank Strap |
| 8 |
204560037 |
Protector Pad |
| 9 |
204560027 |
Protecteur Pad |
| 10 |
207183060 |
Hex. Screw M8 X 30 |
| 11 |
234181601 |
Lock Washer 8 mm, Stainless |
| 12 |
234082600 |
Flat Washer 8 mm, Stainless |
| 13 |
275500252 |
TANK BRACKET - Call your local BRP dealership |
| 14 |
207185560 |
HEX. SCREW M8 X 55 - Call your local BRP dealership |
| 15 |
232581600 |
Hex. Elastic Nut M8 |
| 16 |
204560358 |
HOSE 16 MM - Call your local BRP dealership This part replaces 275500205. |
| 17 |
293650069 |
NORMA CLAMP - Call your local BRP dealership |
| 18 |
Not |
Available As Spare Part - Slit Conduit |
| 19 |
414115200 |
Tie-Rap 180 mm |
| 20 |
204560038 |
T-Fitting |
| 21 |
204560101 |
VENT FUEL SURGE PROTECTOR - Call your local BRP dealership |
| 22 |
275500206 |
VENT BOAT - Call your local BRP dealership |
| 23 |
204560178 |
HOSE 1/4 - Call your local BRP dealership |
| 24 |
293650121 |
NORMA CLAMP - Call your local BRP dealership |
| 25 |
275500247 |
Filler Neck |
| 26 |
293250029 |
Gasket |
| 27 |
211100012 |
Filler Neck Nut, Fuel |
| 28 |
275500757 |
FILLER NECK, INTERIOR - Call your local BRP dealership This part replaces 275500067. |
| 29 |
275500015 |
Oil Cap Chain |
| 30 |
293150057 |
Rivet 1/8” |
| 31 |
234032600 |
Flat Washer M3, Stainless |
| 32 |
241140060 |
Screw K40 X 10 |
| 34 |
293000034 |
Black, Snap Cap |
| 35 |
293250017 |
Gasket |
| 36 |
204560033 |
Filler Neck Hose |
| 37 |
293650081 |
Norma Clamp |
| 39 |
204560066 |
Fuel Tube Adaptor |
| 40 |
275500397 |
FUEL FILTER - Call your local BRP dealership |
| 41 |
278000218 |
Wire Seal |
| 42 |
278000223 |
Female Terminal |
| 43 |
278000273 |
Male Housing, 3 Circuits |
| 44 |
293650077 |
Norma Clamp This part replaces 293650078. |
| 45 |
204560177 |
Hose 5/16”, Meter |
| 46 |
293650070 |
NORMA CLAMP - Call your local BRP dealership |
| 47 |
293650172 |
Tridon Gear Clamp This part replaces 293650037. |
| 48 |
204550001 |
Y-Fitting |
| 49 |
293710059 |
Y-Fitting |
| 50 |
204560122 |
Anti-Siphon Valve |
| 51 |
293700038 |
HOSE FITTING - Call your local BRP dealership |
| 52 |
219704454 |
Was 293800013 Loctite 56765 |
| 53 |
Not |
Available As Spare Part - Aluminum Tube |
