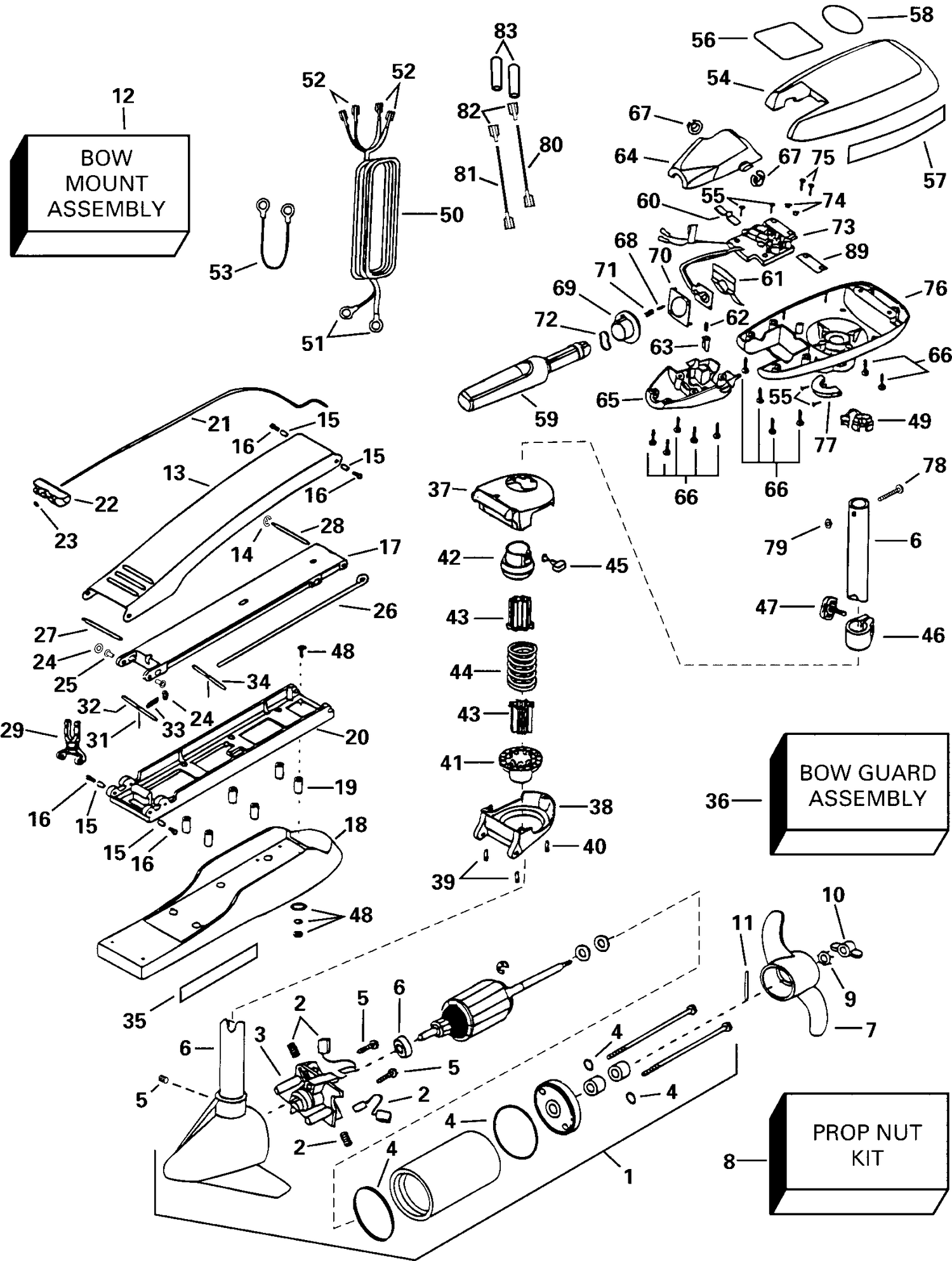

INTRUDER 54hp
Parts (39)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0128237 | MOTOR ASSEMBLY |
| 5 | 0128091 | SCREW, Set |
| 6 | 0128173 | TUBE, 52 in - Y |
| 7 | 0772775 | PROPELLER |
| 8 | 0172778 | PROP NUT KIT |
| 12 | 0128052 | BOW MOUNT ASSY |
| 35 | 0127995 | DECAL, Motor rest This part replaces 0127910. |
| 36 | 0128265 | BOW GUARD ASSY. |
| 46 | 0128086 | COLLAR, Depth |
| 48 | 0128039 | MOUNTING HARDWARE |
| 49 | 0128208 | STRAIN RELIEF |
| 50 | 0128178 | BATTERY CABLE |
| 53 | 0128280 | CONNECTOR CABLE |
| 56 | 0128284 | DECAL, Cover |
| 57 | 0128114 | DECAL, Side |
| 58 | 0127973 | DECAL, Cover |
| 59 | 0128231 | HANDLE ASSY. |
| 60 | 0127986 | SPRING, Detent |
| 61 | 0128182 | SPRING, Tilt detent |
| 62 | 0128183 | SPRING, Release |
| 63 | 0128184 | REALEASE BUTTON |
| 64 | 0128232 | HANDLE, Upper |
| 65 | 0128186 | HANDLE, Lower |
| 66 | 0127989 | SCREW |
| 67 | 0127940 | BEAING, Handle |
| 68 | 0127983 | PIN, Actuator |
| 69 | 0127987 | ACTUATOR , Cam |
| 70 | 0128233 | ACTUATOR, FWD./REV. |
| 71 | 0127984 | SPRING, Actuator |
| 72 | 0127985 | SPRING, Cam |
| 73 | 0128291 | CONTROL BOARD |
| 74 | 0128293 | WASHER, Insulator |
| 75 | 0128156 | SCREW |
| 76 | 0128301 | CONTROL BOX |
| 77 | 0128070 | COLLAR, Control box |
| 78 | 0128068 | SCREW |
| 79 | 0128069 | NUT |
| 80 | 0128349 | WIRE EXTENTION, Black |
| 81 | 0128350 | WIRE EXTENTION, Red |
