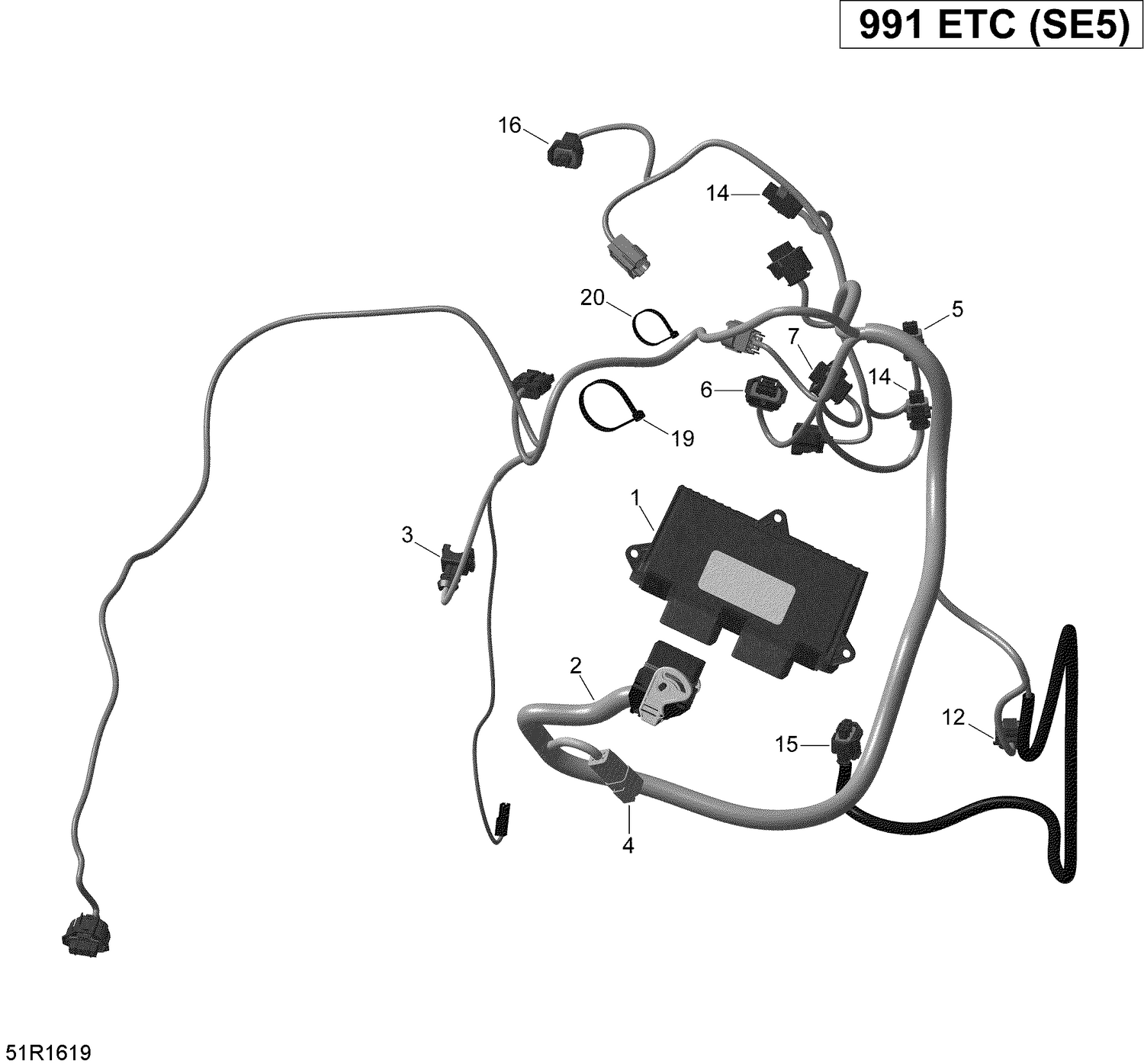

10- Engine Harness and Electronic Module
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420666950 | ECM, Engine Controle Module - SM5 |
| 1 | 420666952 | ECM, Engine Controle Module - SE5 |
| 3 | 415128500 | Female Terminal Housing, 2 Circuits |
| 4 | 278000635 | Female Housing, 4 Circuits |
| 5 | 278001005 | Male Housing, 2 Circuits |
| 6 | 278001830 | Housing Connector, 3 Circuits |
| 7 | 278001829 | Housing Connector, 3 Circuits |
| 12 | 278000997 | Male Housing, 3 Circuits |
| 14 | 278001005 | Male Housing, 2 Circuits |
| 15 | 278001830 | Housing Connector, 3 Circuits |
| 16 | 710001136 | Housing |
| 19 | 420651397 | Tie Rap |
