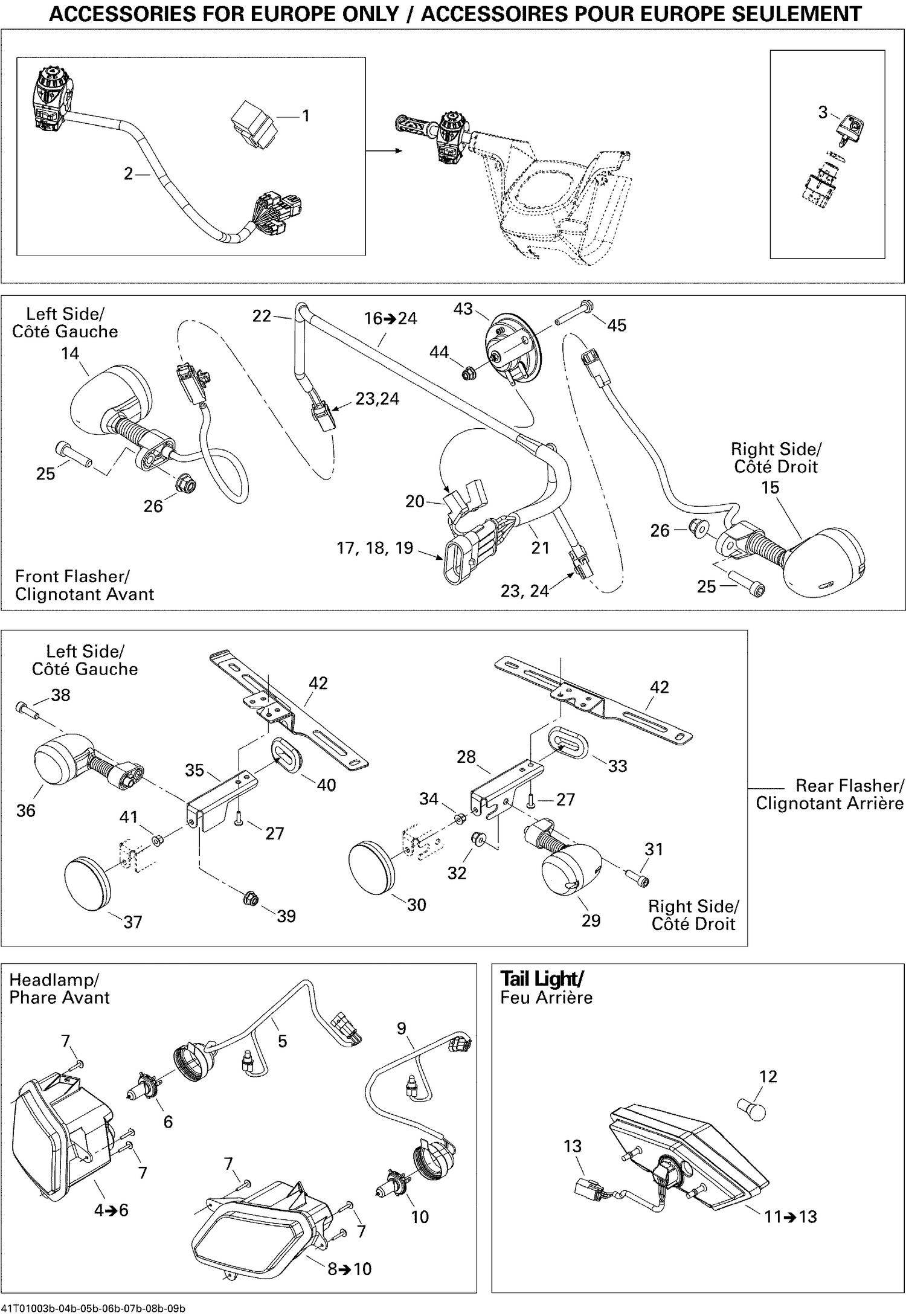

| Ref | Part Number | Description |
|---|
| 1 |
710001447 |
FLASHER UNIT - Call your local BRP dealership |
| 2 |
710001428 |
Multi function Handle |
| 3 |
710000817 |
Black, Electronic Key |
| 5 |
710000923 |
Headlamp Harness |
| 6 |
710000871 |
Bulb, 12V 35/35W |
| 7 |
250000101 |
Plastite Screw Type K-40, M4 X 25 |
| 9 |
710000923 |
Headlamp Harness |
| 10 |
710000871 |
Bulb, 12V 35/35W |
| 12 |
520000758 |
Bulb This part replaces 410504100. |
| 13 |
515175494 |
Male Housing, 3 Circuits |
| 14 |
710001079 |
FLASHING LIGHT ASS'Y - Call your local BRP dealership |
| 15 |
710001080 |
FLASHING LIGHT ASS'Y - Call your local BRP dealership |
| 17 |
515175231 |
Female Terminal |
| 18 |
409012900 |
Male Terminal |
| 19 |
710000576 |
HOUSING, 4CIRCUITS - Call your local BRP dealership |
| 20 |
278001013 |
Wire Seal |
| 21 |
409010300 |
Female Terminal |
| 22 |
219704425 |
Tubing 6 Mm 3000Mm Long |
| 23 |
219704399 |
Was 409901700 Tubing (9 mm) |
| 24 |
515176296 |
Female Terminal Housing, 2 Circuits |
| 25 |
205062544 |
Socket Head Screw M6 X 25 |
| 26 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 27 |
390402400 |
Pop Rivet 3/16" |
| 28 |
710001329 |
BRACKET - Call your local BRP dealership |
| 29 |
710001079 |
FLASHING LIGHT ASS'Y - Call your local BRP dealership |
| 30 |
705011221 |
Red Reflector This part replaces 705002408. |
| 31 |
205062044 |
Socket Head Screw M6 X 20 |
| 32 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 33 |
705003668 |
Oblong Grommet |
| 34 |
233251434 |
Flange Elastic Nut M5 This part replaces 233251414. |
| 35 |
710001330 |
BRACKET - Call your local BRP dealership |
| 36 |
710001080 |
FLASHING LIGHT ASS'Y - Call your local BRP dealership |
| 37 |
705011221 |
Red Reflector This part replaces 705002408. |
| 38 |
205062044 |
Socket Head Screw M6 X 20 |
| 39 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 40 |
705003668 |
Oblong Grommet |
| 41 |
233251434 |
Flange Elastic Nut M5 This part replaces 233251414. |
| 42 |
710001241 |
BRACKET - Call your local BRP dealership |
| 43 |
710004791 |
Horn This part replaces 710000983. |
| 44 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
