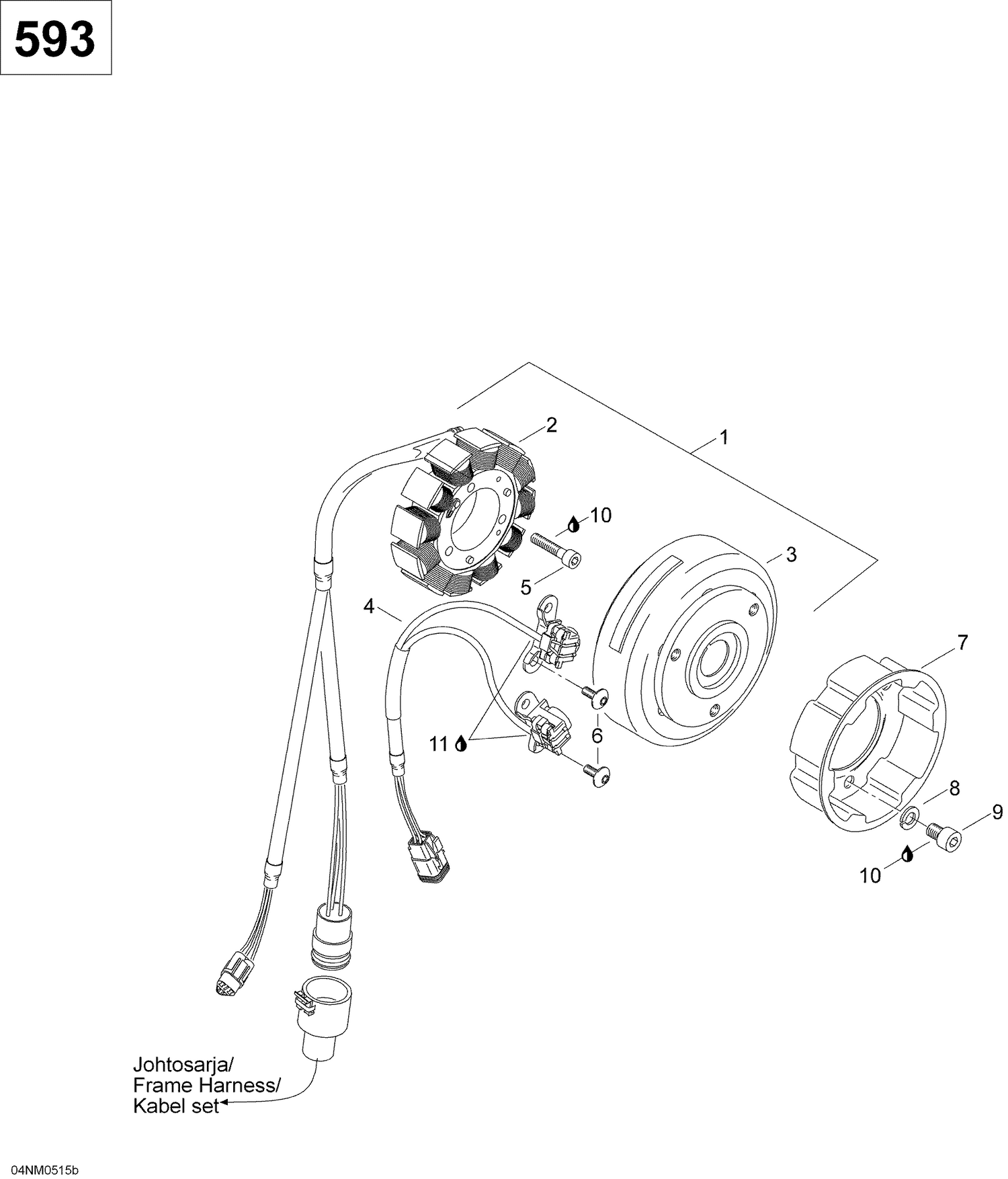

01- Ignition, 593
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 420888615 | Ankarplatta, kompl. |
| 3 | 420888626 | Magneto flywheel |
| 4 | 420966802 | Pick up ass'y |
| 5 | 205063044 | Allen screw M6x30 This part replaces 420840880. |
| 6 | 420640324 | Torx Screw M6 X 16 This part replaces 420640321. |
| 7 | 420852590 | Starting pulley |
| 8 | 420827405 | Lock washer 8 mm |
| 9 | 420841520 | Socket head screw M8 x 12 |
| 10 | 293800060 | Liima Loctite 243, 10ml |
