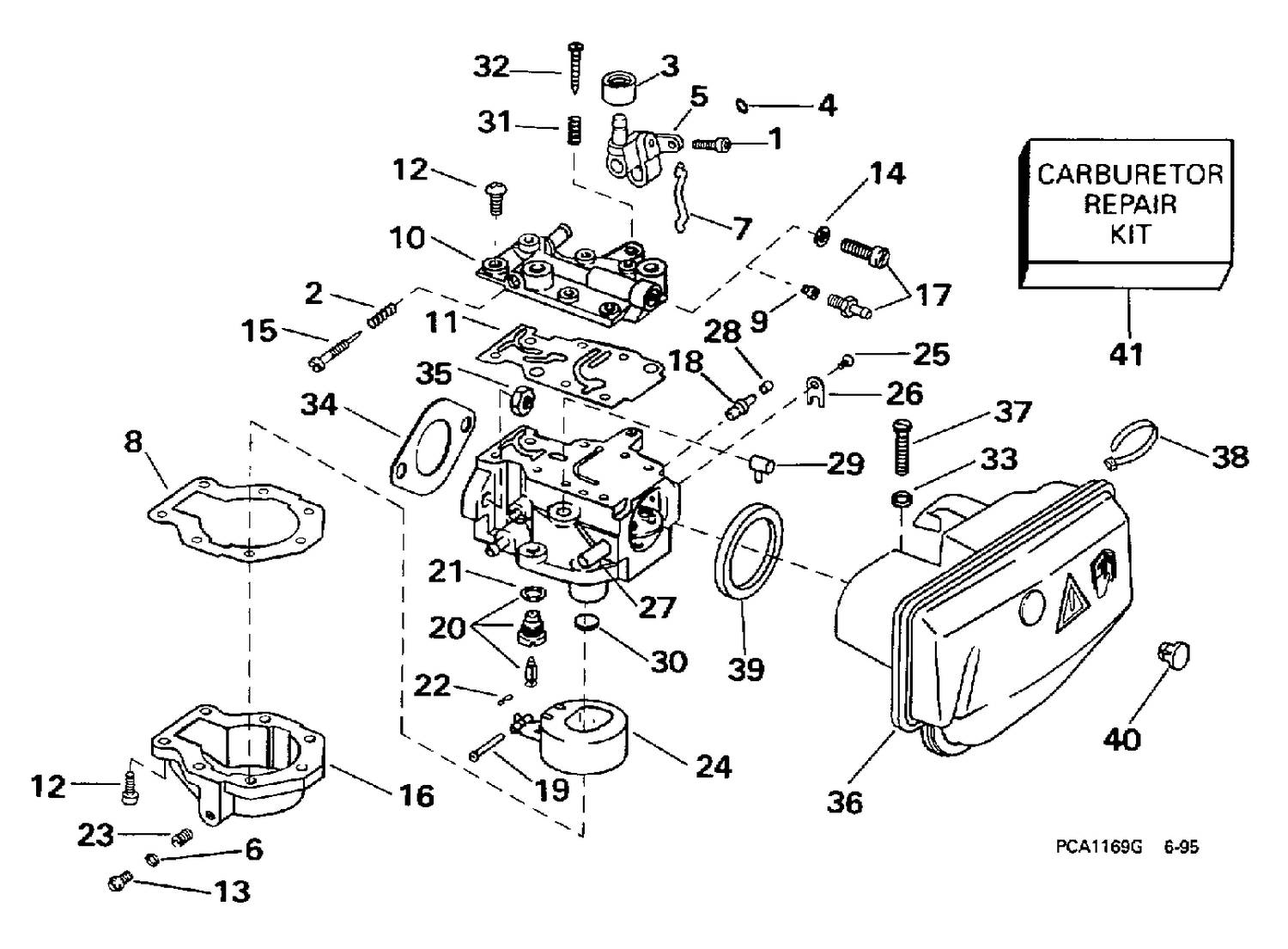

CARBURETOR
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 9 | 0333243 | ORIFICE, Idle air bleed, No. 16 |
| 17 | 0447013 | HOSE FITTING, Cover |
| 22 | 0336842 | CLIP, SPRING |
| 23 | 0326856 | HIGH SPEED ORIFICE, No. 62 |
| 29 | 0342425 | CAP, Restrictor |
| 35 | 0328742 | NUT |
| 36 | 0436296 | AIR SILENCER |
| 37 | 0331758 | SCREW, Air horn to carburetor |
| 40 | 0316337 | PLUG |
| 41 | 0439073 | CARBURETOR REPAIR KIT This part replaces 0436359. |
| 0437242 | 0437242 | CARBURETOR ASSY. |
| 0437879 | 0437879 | CARBURETOR ASSY. |
| 0439129 | 0439129 | CARBURETOR Assy |
