Home / BRP / 2027 / 003 - North America - FREERIDE Series / North America - FREERIDE 850 E-TEC - 146 / North America - FREERIDE - STD - 850 E-TEC - VBVG - Ultraviolet - 15X146X2.5P Track - SHOT starter, 2027 000VBVG00 / 07- Body - Cargo

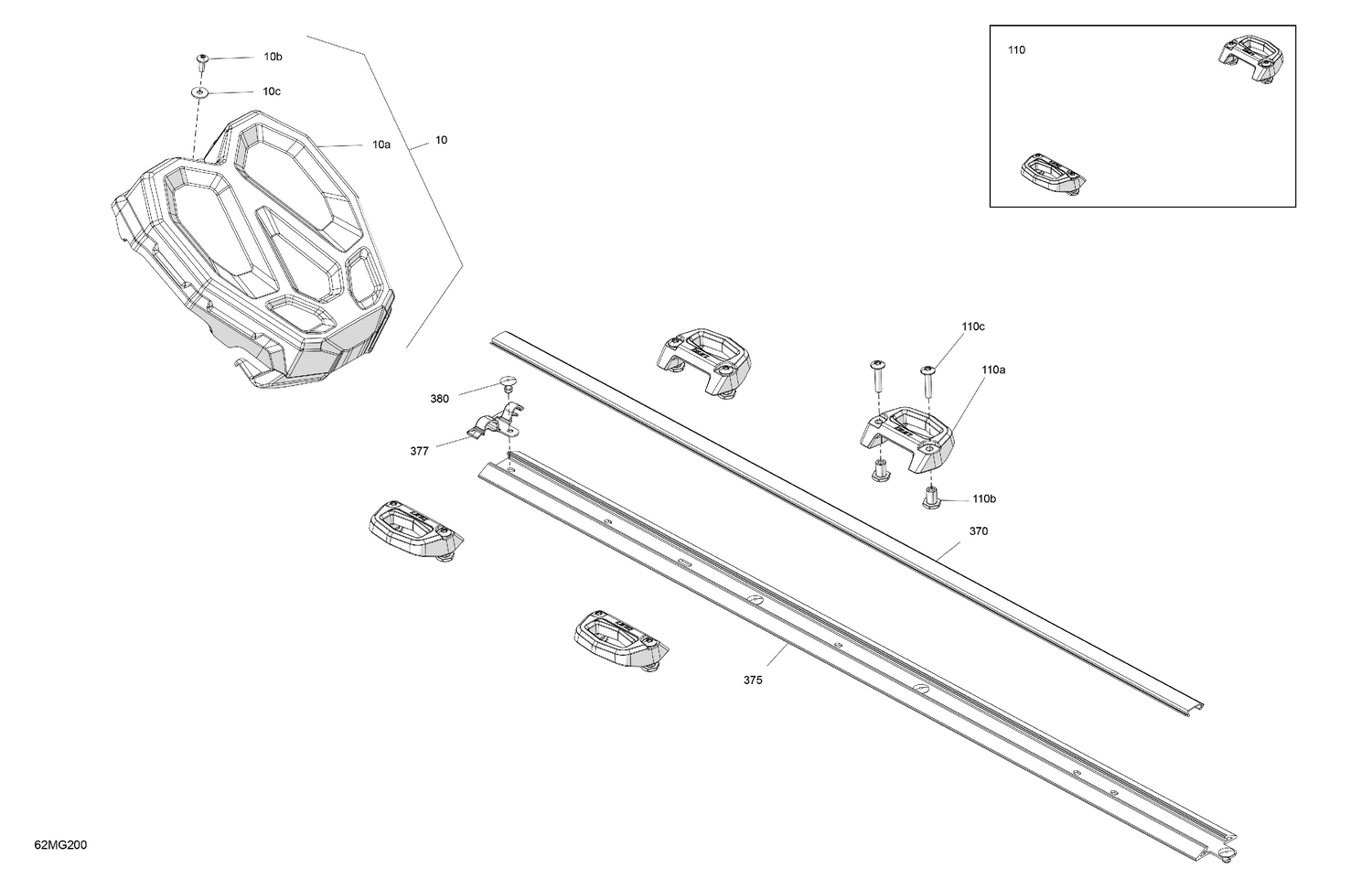

07- Body - Cargo

07- Body - Cargo

Parts (9)

RefPart NumberDescription
10a 417300605 Strap Cover
10b 250000742 Torx Screw M5 X 14
10c 250200025 Washer M5
110a 860203055 Linq Anchorage Kit
110b 511000822 Threaded Insert
110c 250000446 Torx Screw M6 X 20, Scotch Grip
370 520002921 Extruded Trim
375 511002023 Grommet
377 520001722 Cap
