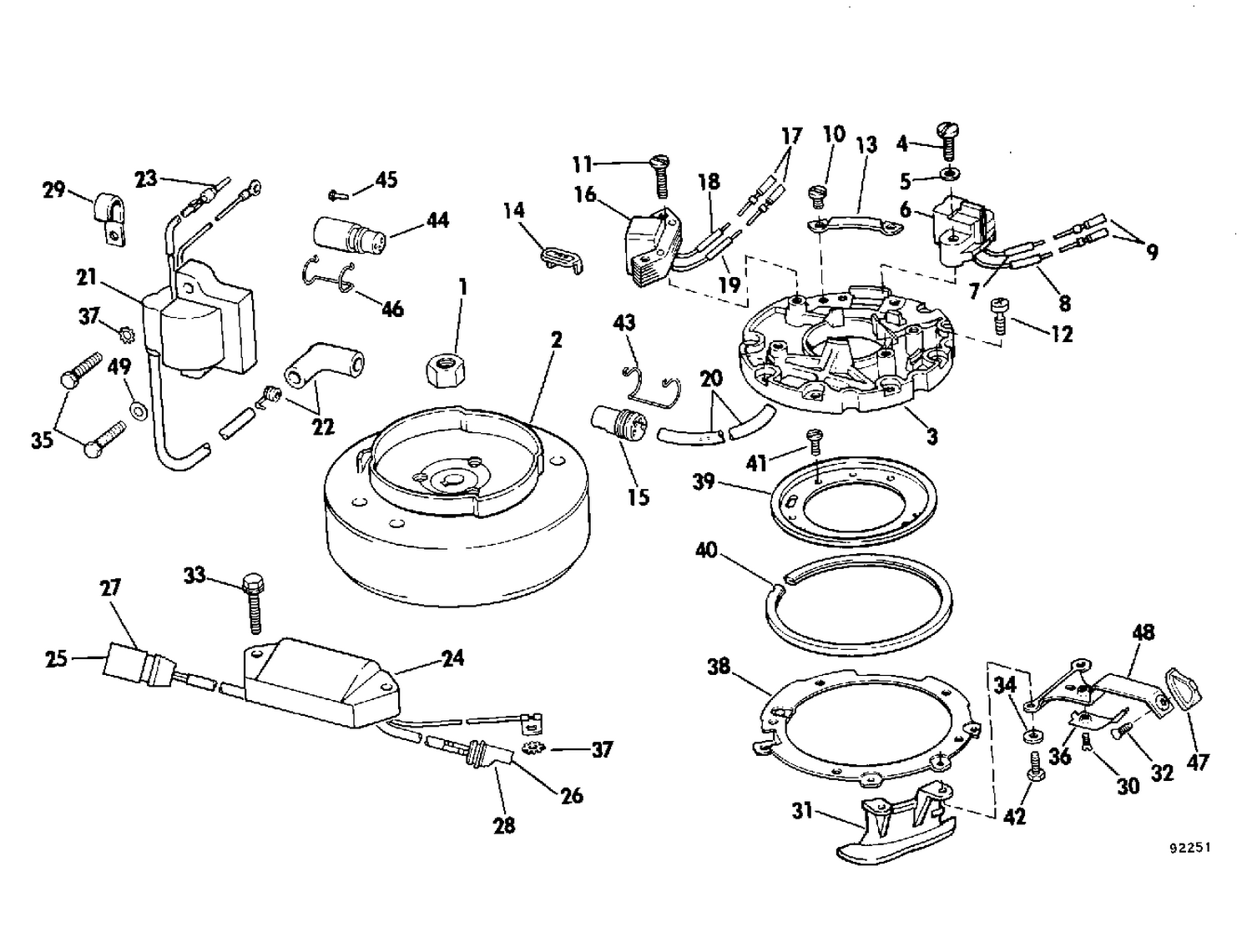

| Ref | Part Number | Description |
|---|
| 2 |
0582049 |
FLYWHEEL ASSY |
| 3 |
0582052 |
PLATE & SLEEVE ASSY. |
| 6 |
0583387 |
SENSOR ASSEMBLY This part replaces 0582069. |
| 12 |
0511460 |
VIS, dispositif de retenue |
| 13 |
0511458 |
COLLIER, fils |
| 14 |
0511679 |
GUIDE, Lead wires |
| 16 |
0581670 |
CHARGE COIL This part replaces 0582059. |
| 20 |
0512765 |
BRACKET This part replaces 0511680. |
| 21 |
0582330 |
COIL ASSY. |
| 24 |
0581927 |
POER PACK ASSY |
| 27 |
0511449 |
COMMECTOR, Coil to power pack |
| 30 |
0308544 |
SCREW, Bracket to box |
| 31 |
0511675 |
CAM, Throttle control |
| 32 |
0317502 |
SCREW, Handle knob |
| 33 |
0329110 |
VIS, boîtier d'échappement vers bloc cylindres-carter This part replaces 0324697. |
| 36 |
0324509 |
DETENT |
| 38 |
0511681 |
RETAINER |
| 39 |
0332063 |
PLATE, Support This part replaces 0323398. |
| 40 |
0322435 |
ROULEMENT, plaque d'allumage vers support |
| 41 |
0332070 |
SCREW, Retaining plate This part replaces 0304442. |
| 43 |
0322549 |
DISPOSITIF DE RETENUE, bouchon |
| 47 |
0324510 |
KNOB |
| 48 |
0511676 |
LEVER, Adjustment |
| 0582050 |
0582050 |
CHARGE COIL & PLATE ASSY |
