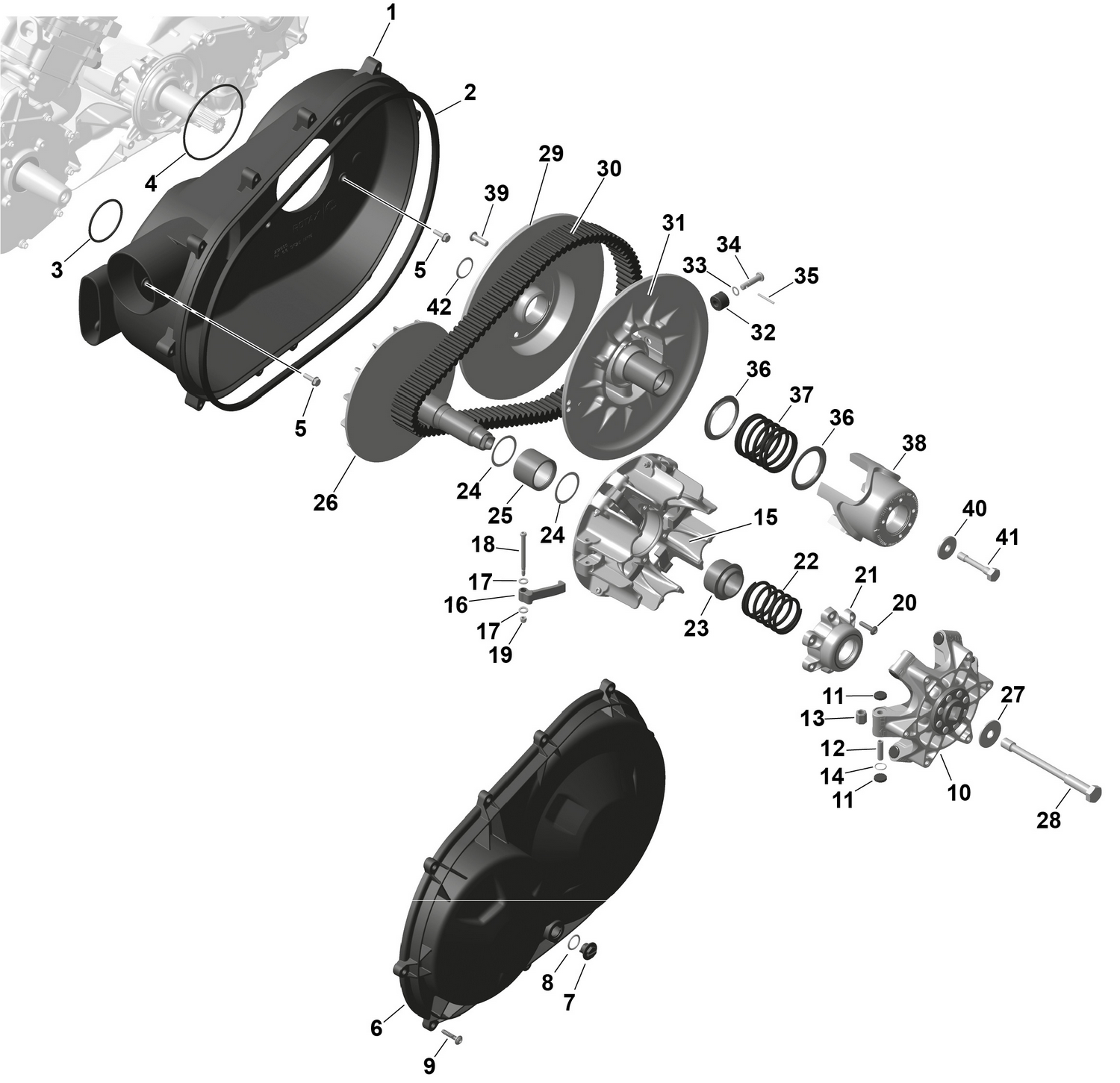

01- ROTAX - CVT
Parts (41)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420212604 | CVT Air Guide |
| 2 | 420450400 | Gasket |
| 3 | 420430409 | O-Ring |
| 4 | 420450431 | O-Ring |
| 5 | 420441311 | Hex.Screw M6 X 20 |
| 6 | 420212500 | Variator Cover |
| 7 | 420441820 | Cap |
| 8 | 420250050 | O-Ring |
| 8 | 420250052 | O-Ring |
| 9 | 420441575 | Torx Screw 6X30 |
| 10 | 420280727 | Governor Cup Ass'y |
| 12 | 417223257 | Roller Axle |
| 13 | 420229991 | Roller Thrust |
| 14 | 420230456 | O-Ring |
| 15 | 420280608 | Outer Half Ass'y |
| 17 | XXX | Not Available As Spare Parts |
| 18 | XXX | Not Available As Spare Parts |
| 19 | XXX | Not Available As Spare Parts |
| 20 | 420841549 | Torx Flange Screw M6 X 25 |
| 21 | 420280616 | Bearing Cover |
| 22 | 420638129 | Compression Spring |
| 23 | 420427211 | Spring Retainer |
| 24 | 420427220 | Washer |
| 25 | 420832351 | Needle Roller Bearing With Sleeves |
| 26 | 420280597 | Inner Half Ass'y |
| 27 | 420245690 | Washer |
| 28 | 420841161 | Hexagonal Screw M14X 165 |
| 29 | 420280635 | Inner Half Ass'y |
| 30 | 422280656 | Drive Belt |
| 31 | 420280627 | Outer Half Ass'y |
| 32 | 417127016 | Pulley Roller |
| 32 | 861805577 | QRS XD Roller Kit (2) |
| 33 | 250200009 | Lock Washer 8 mm |
| 34 | 417127294 | Pivot Stud |
| 35 | 420629200 | Dowel Pin |
| 36 | 417127116 | Swivel Abutment |
| 37 | 417127039 | Black, Return Spring |
| 38 | 420280647 | Cam |
| 39 | 420441981 | Binding Head Screw M8X25 |
| 40 | 420427243 | Collar Washer |
| 41 | 420441990 | Hexagonal Screw M10X 61 |
