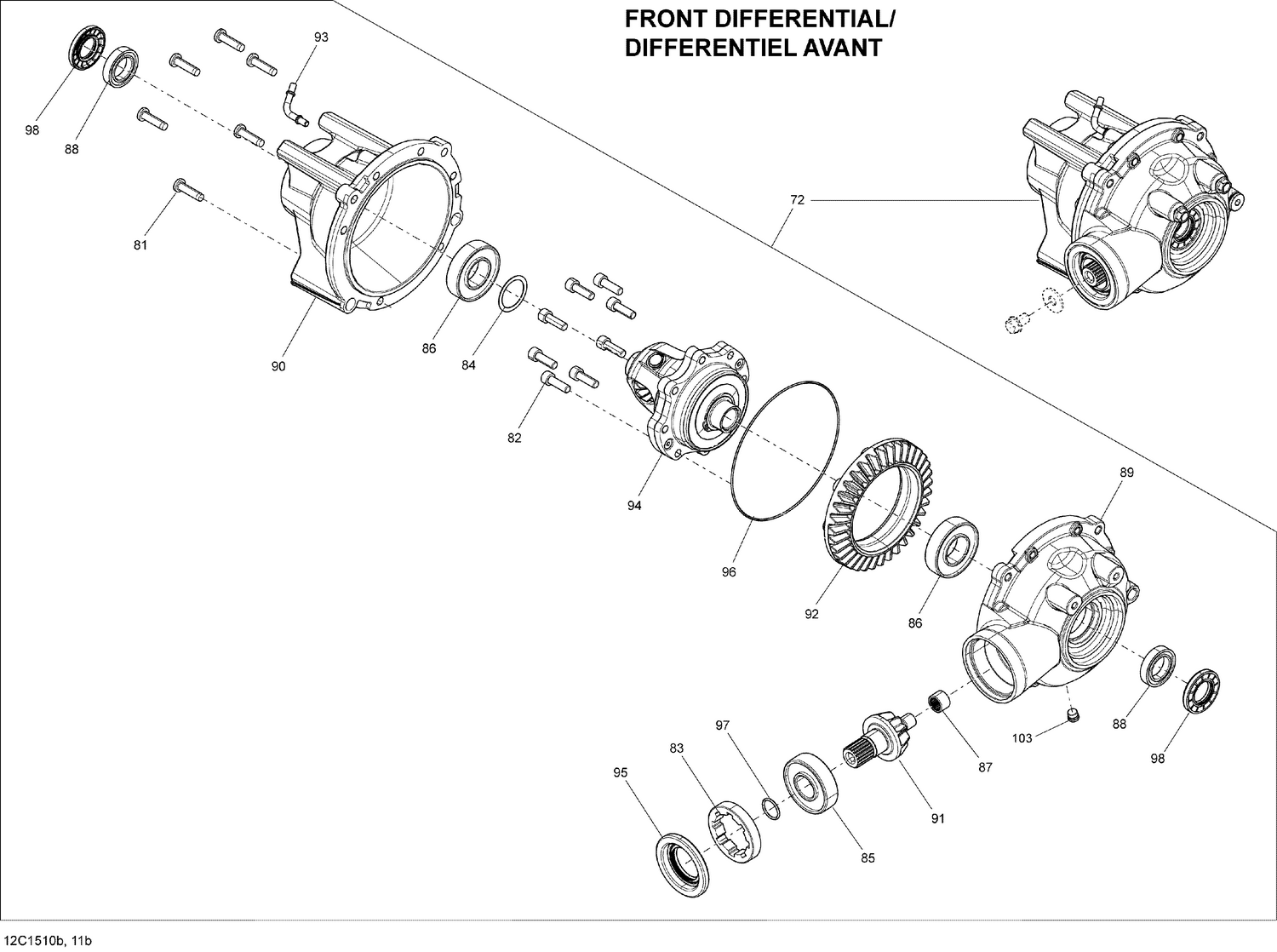

07- Drive System, Front Differential_12C1511b
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 72 | 703500908 | Front Differential This part replaces 705401511. |
| 81 | 705401601 | Screw |
| 82 | 705401602 | Screw |
| 83 | 705401603 | Nut |
| 84 | 705401604 | Shim |
| 85 | 705401605 | Ball Bearing |
| 86 | 705401606 | Ball Bearing |
| 87 | 705402848 | Ball Bearing This part replaces 705401607. |
| 88 | 705401608 | Ball Bearing |
| 89 | 705401792 | Front Pinion Cover This part replaces 705401609. |
| 90 | 705401610 | Front Cover |
| 91 | 705402841 | Pinion 10 Teeth This part replaces 705401611. |
| 92 | 705401612 | Gear 36 Teeth |
| 93 | 705401613 | Vent Valve |
| 94 | 705402182 | Differential This part replaces 705401506. |
| 95 | 705401615 | Oil Seal |
| 96 | 705401616 | Seal |
| 97 | 705401617 | O'Ring |
| 98 | 705401618 | Gasket |
