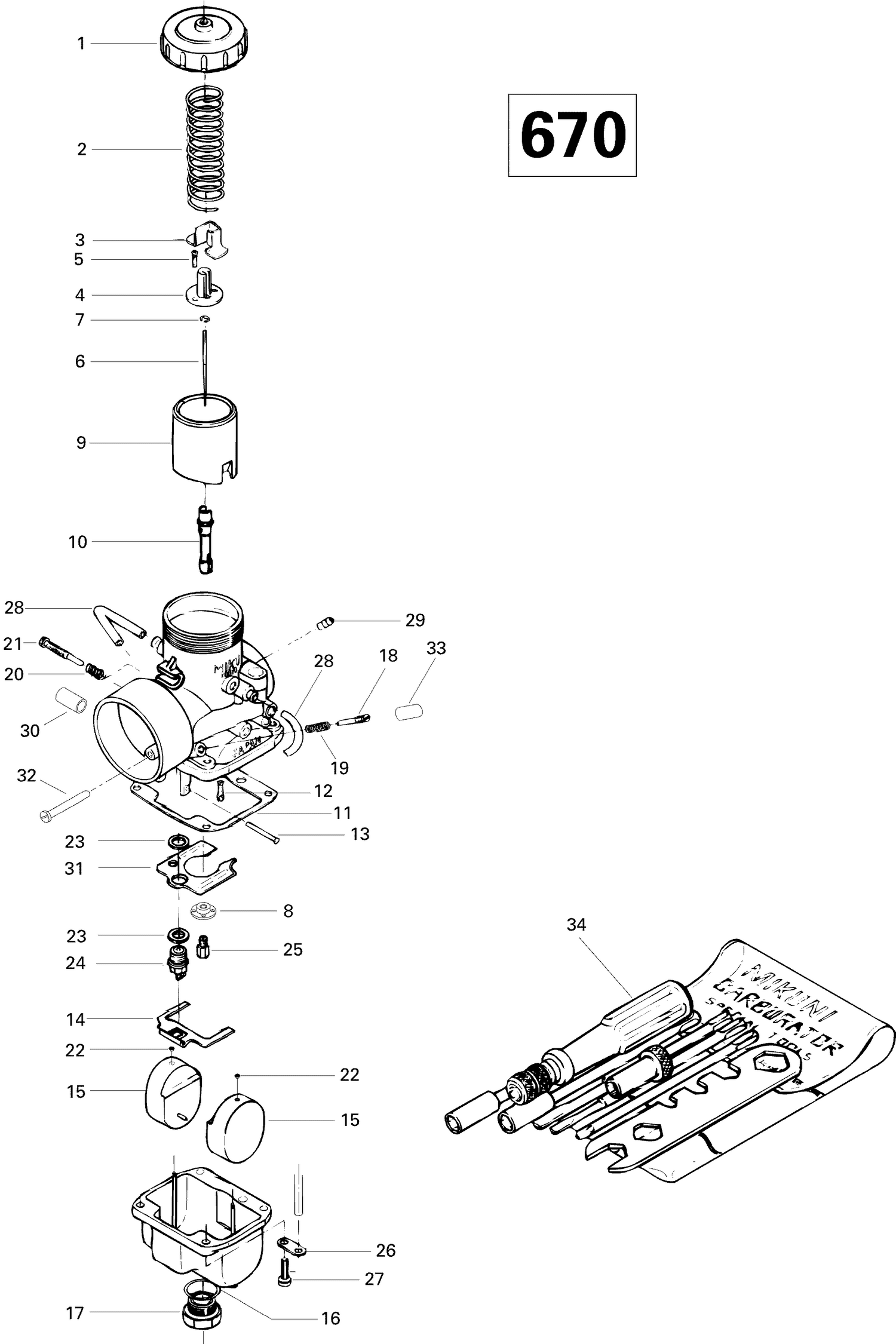

02- Carburetor 670
Parts (34)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 404126800 | Cover |
| 2 | 404156500 | Spring |
| 3 | 404128100 | Cover |
| 4 | 404160800 | CONNECTOR - Call your local BRP dealership This part replaces 404122900. |
| 5 | 404121300 | Screw With Washer |
| 6 | 404157700 | Jet Needle J8 7DPI1-3 |
| 7 | 404152200 | E-Ring |
| 8 | 404116700 | Washer |
| 9 | 404132300 | Piston Valve CA 2.5 |
| 10 | 404148300 | Needle Jet 224-AA-2 |
| 11 | 404104700 | GASKET - Call your local BRP dealership |
| 12 | 404148100 | Pilot Jet PJ 75 |
| 13 | 404103300 | Lever Pin |
| 14 | 404153300 | Float Arm |
| 15 | 404105400 | FLOAT - Call your local BRP dealership |
| 16 | 404112800 | Washer |
| 17 | 404112900 | Drain Plug Screw |
| 18 | 404149000 | AIR SCREW - Call your local BRP dealership |
| 19 | 404139800 | SPRING - Call your local BRP dealership |
| 20 | 404101700 | Spring |
| 21 | 404151900 | Throttle Adjustment Screw |
| 22 | 404105800 | Cap |
| 23 | 404101600 | Seat Washer |
| 24 | 404147400 | Needle Valve 1.5 |
| 25 | 404106200 | Main Jet MJ 370 (MAG) |
| 25 | 404106300 | Main Jet 380 |
| 26 | 404103000 | PLATE - Call your local BRP dealership |
| 27 | 404102000 | Screw With Lock Washer |
| 28 | 404109800 | Hose |
| 29 | 404127600 | NIPPLE - Call your local BRP dealership |
| 30 | 270500095 | Cap This part replaces 404140700. |
| 31 | 404112700 | Baffle |
| 32 | 404131700 | Plug Screw |
| 33 | 404155200 | Cap |
