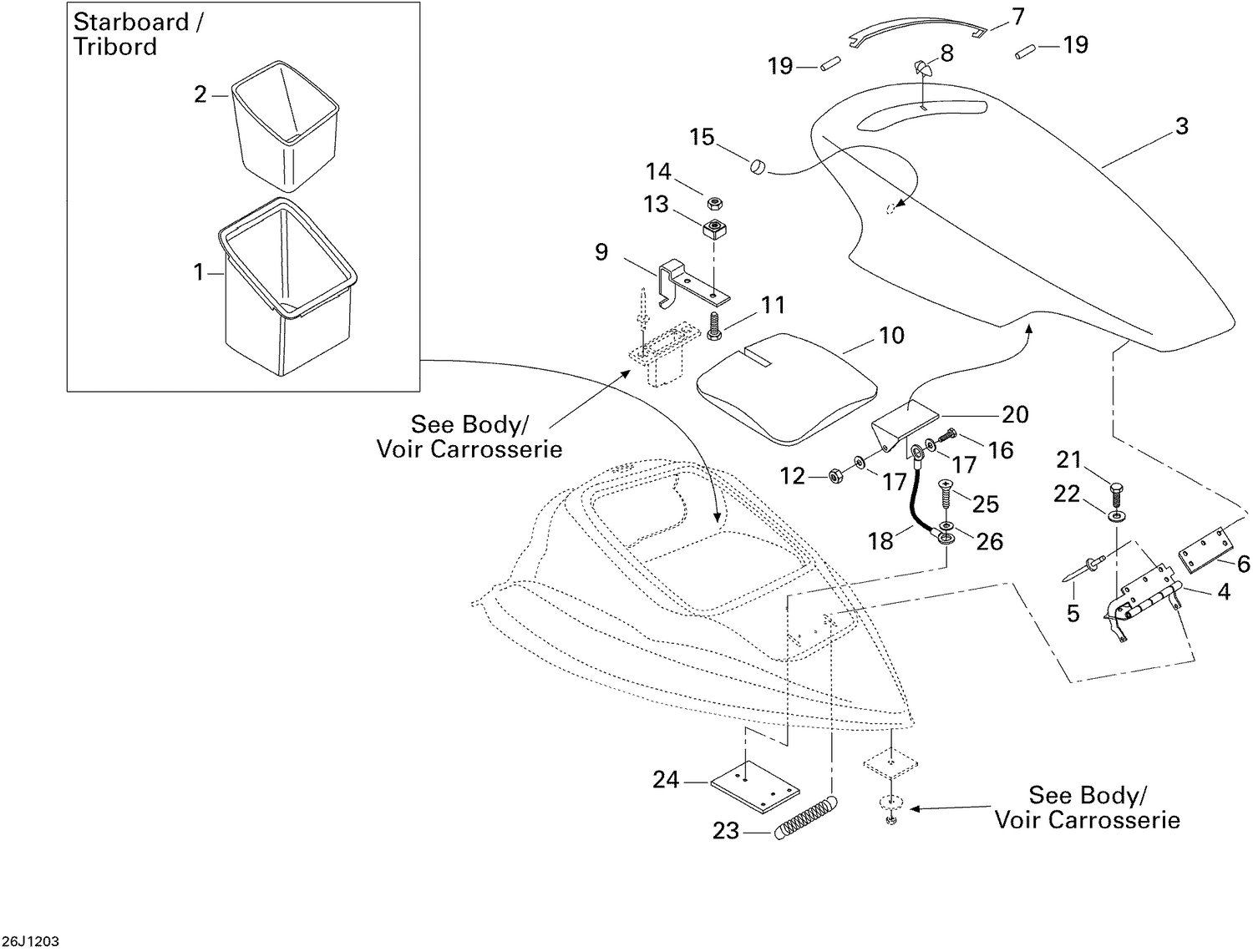

| Ref | Part Number | Description |
|---|
| 1 |
269501940 |
STORAGE TRAY - Call your local BRP dealership |
| 2 |
204630008 |
ICEBOX FOAM - Call your local BRP dealership |
| 3 |
291003861 |
Windshield This part replaces 204620079. |
| 4 |
204620281 |
HINGE ASS'Y - Call your local BRP dealership |
| 5 |
293150039 |
Pop Rivet 3/16" |
| 6 |
204620087 |
RETAINING PLATE - Call your local BRP dealership |
| 7 |
204073803 |
DEFLECTOR - Call your local BRP dealership |
| 8 |
204073804 |
REAR STOPPER - Call your local BRP dealership |
| 9 |
204620070 |
LATCH - Call your local BRP dealership |
| 10 |
204620080 |
FOAM, WINDSCREEN - Call your local BRP dealership |
| 11 |
207151260 |
HEX. SCREW M6 X 12 - Call your local BRP dealership |
| 12 |
232551600 |
Hex. Elastic Nut M5 |
| 13 |
204073798 |
NUT HOUSING - Call your local BRP dealership |
| 14 |
232551600 |
Hex. Elastic Nut M5 |
| 15 |
204620295 |
RUBBER STOPPER - Call your local BRP dealership |
| 16 |
207151260 |
HEX. SCREW M6 X 12 - Call your local BRP dealership |
| 17 |
234052600 |
Flat Washer 5 mm, Stainless |
| 18 |
204620194 |
RETAINER CABLE - Call your local BRP dealership |
| 19 |
204620126 |
ROLLED PIN 1.5 X 10 MM - Call your local BRP dealership |
| 20 |
204620127 |
CABLE ATTACHEMENT - Call your local BRP dealership |
| 21 |
207152060 |
Hex. Screw M5 X 20 |
| 22 |
234052600 |
Flat Washer 5 mm, Stainless |
| 23 |
204620018 |
HINGE SPRING - Call your local BRP dealership |
| 24 |
204620280 |
WINDSCREEN INSERT - Call your local BRP dealership |
| 25 |
208662560 |
PHILLIPS SCREW M6 X 25 - Call your local BRP dealership |
