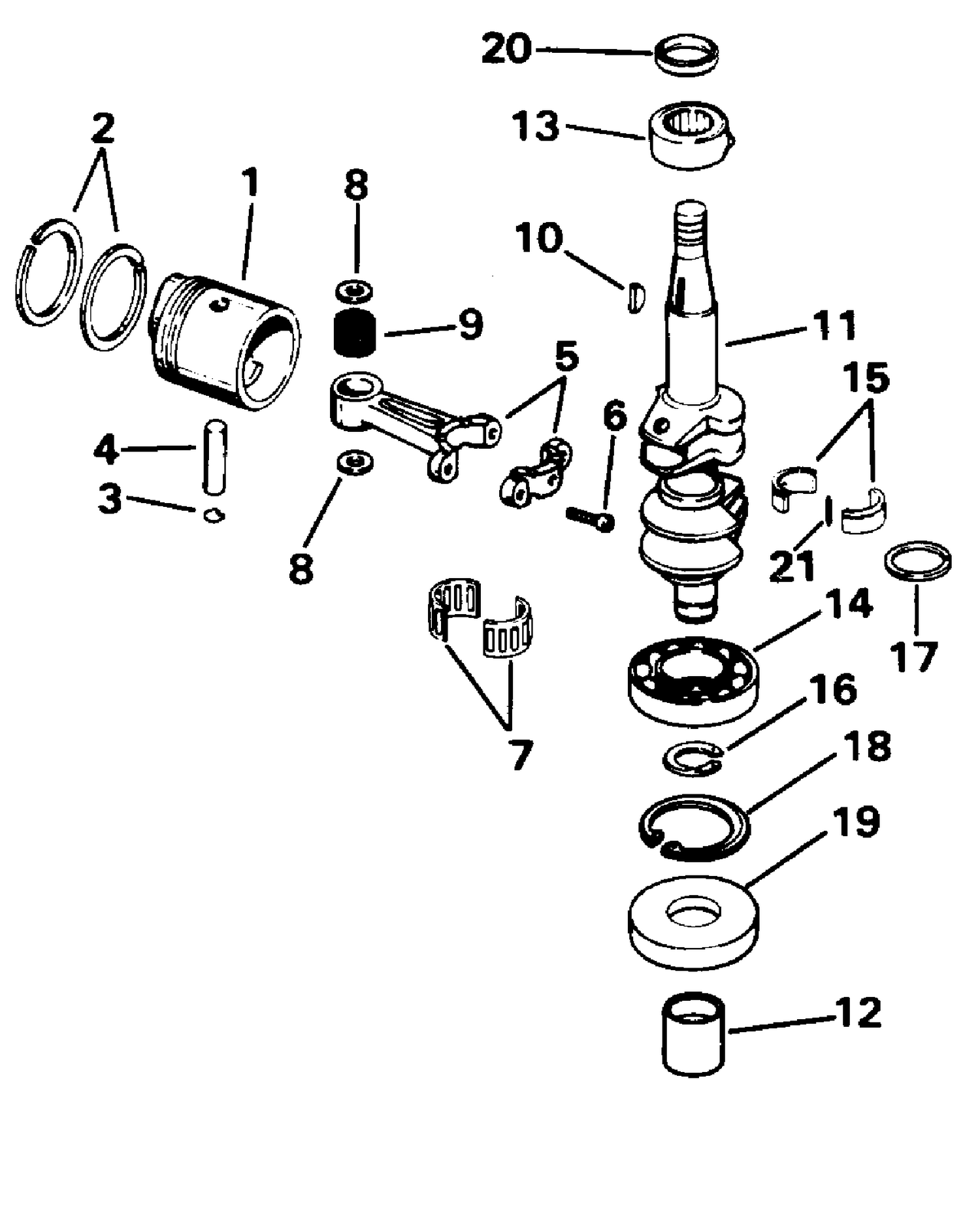

CRANKSHAFT & PISTON
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0432803 | PISTON ASSY., Std. |
| 1 | 0432804 | PISTON ASSY., 0.030 in. O.S. |
| 2 | 0390082 | RING SET, Stbd. |
| 2 | 0390083 | RING SET, .030 O.S. |
| 3 | 0334255 | RETAINING RING |
| 4 | 0331125 | WRIST PIN |
| 5 | 0434023 | CONNECTING ROD ASSY. |
| 10 | 0120395 | KEY |
| 11 | 0438015 | CRANKSHAFT |
| 13 | 0386008 | BEARING ASSEMBLY CRANKSHAFT |
| 14 | 0391849 | ROULEMENT À BILLES |
| 15 | 0318863 | LINERS, Center bearing |
| 16 | 0326904 | NEEDLE BEARING ASSY. |
| 17 | 0342717 | SEAL RING, Crankshaft |
| 18 | 0332934 | RETAINING RING |
