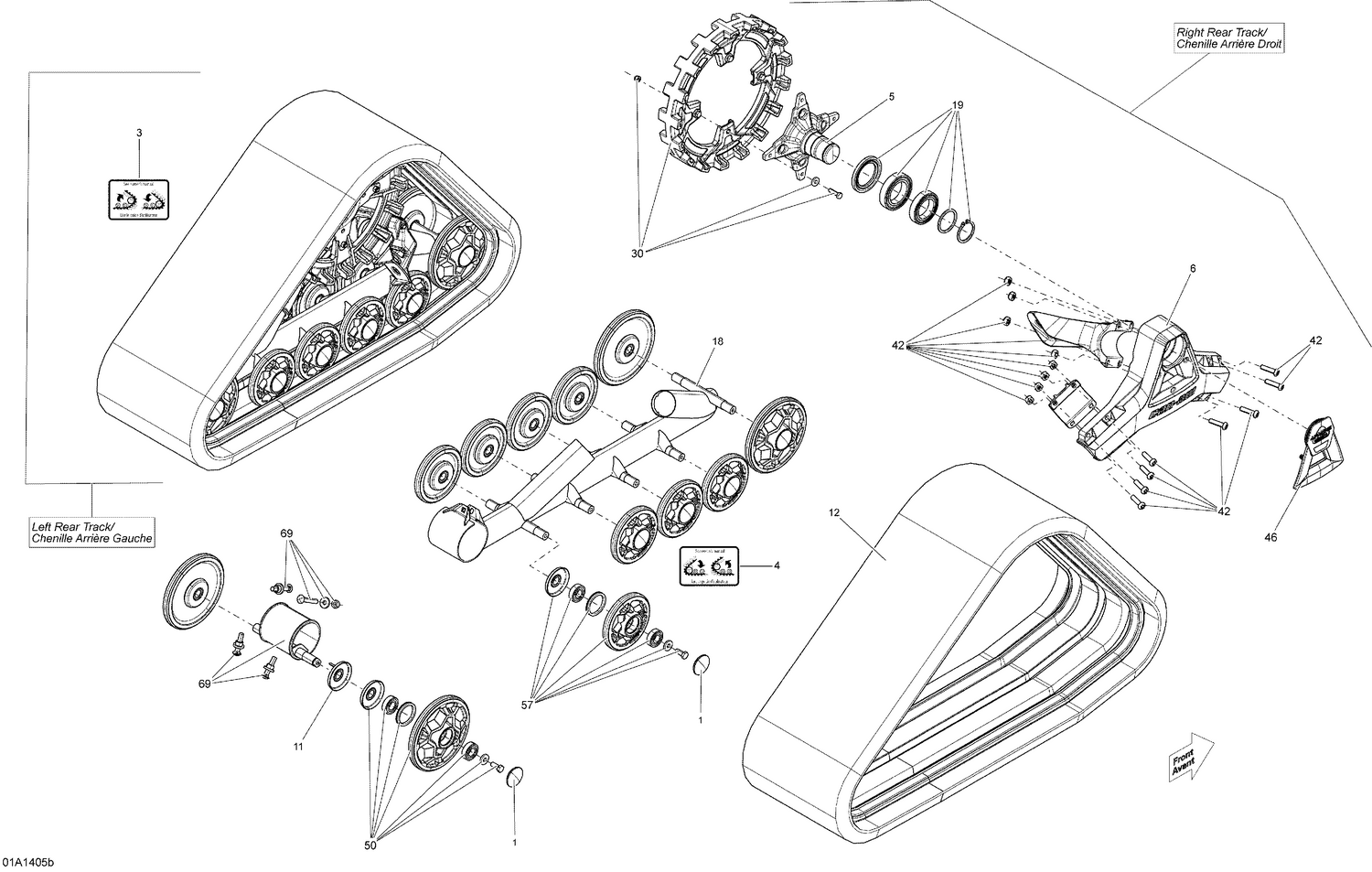

07- Track Kit Rear_01A1405b
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 570063600 | Wheel Cap |
| 3 | 704903854 | DECAL, SEE OWNER'S MANUAL - Call your local BRP dealership |
| 4 | 704903853 | Decal, See Owner's Manual |
| 5 | 705402653 | Main Axle - 360 This part replaces 705401210. |
| 6 | 705401212 | Aluminum Link |
| 11 | 705401469 | SEAL CAP - Call your local BRP dealership |
| 12 | 705503037 | Rear Track 360 This part replaces 705501614. |
| 18 | 705501954 | LH Rear Frame |
| 18 | 705501955 | RH Rear Frame |
| 19 | 715001602 | Bearing Kit |
| 30 | 715001604 | Sprocket Kit |
| 42 | 715001609 | LH CLAMP KIT - Call your local BRP dealership |
| 42 | 715001610 | RH CLAMP KIT - Call your local BRP dealership |
| 46 | 715002044 | Cover Kit |
| 50a | 503190396 | Ball Bearing |
| 57a | 503190396 | Ball Bearing |
