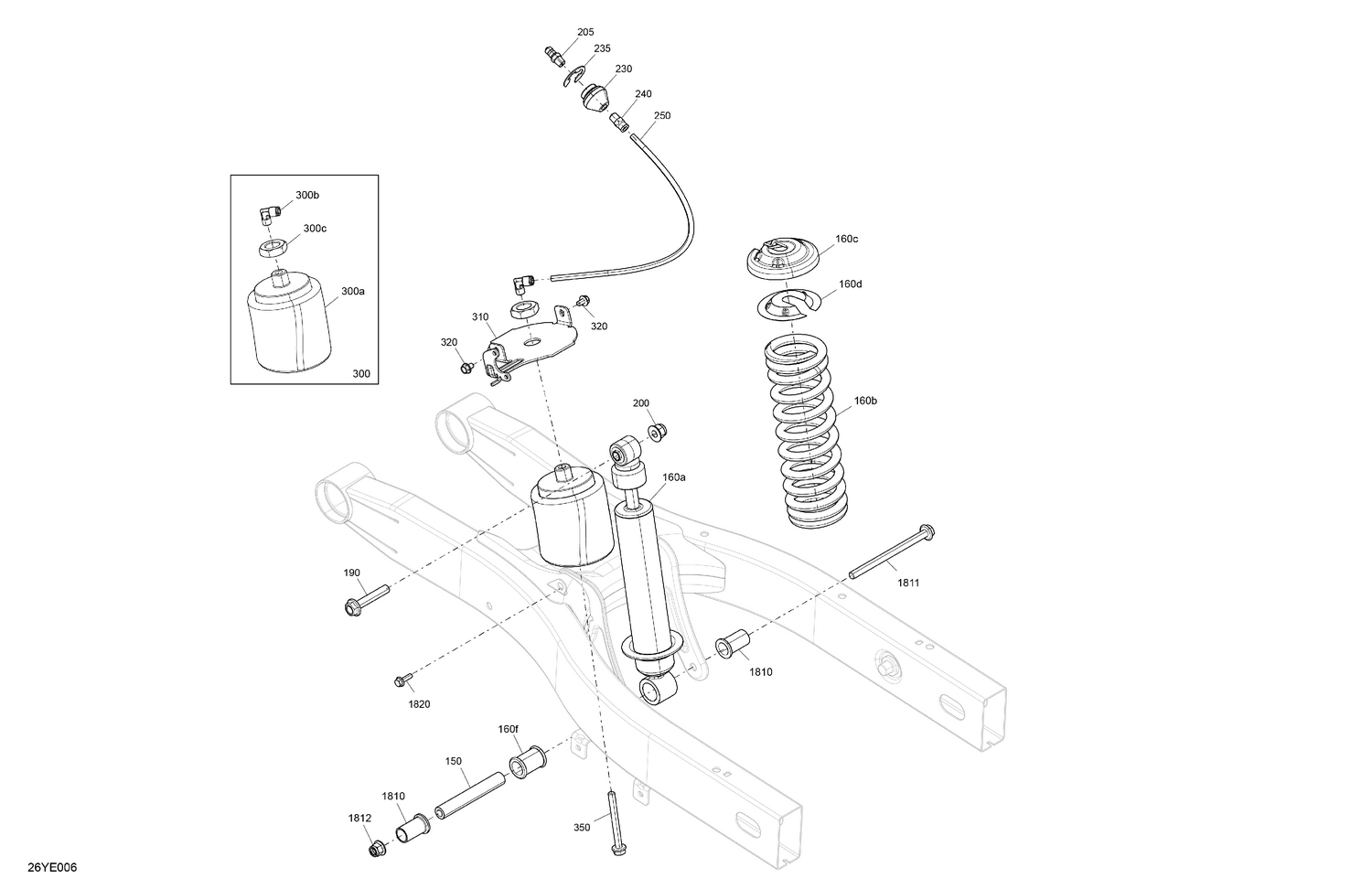

05- Suspension - Rear Shock
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 150 | 706000409 | Shock Absorber Shaft |
| 160a | 706001552 | Shock Absorber |
| 160b | 706001542 | Shock Absorber Spring |
| 160c | 503193781 | Spring Stopper |
| 160d | 503193782 | Cap |
| 160f | 503191609 | Urethane Cushion |
| 190 | 207605554 | Hex. Flange Screw M10 X 55 |
| 200 | 233201464 | Hex. Flange Elastic M10 x 1.5 |
| 205 | 706002797 | Air Valve |
| 230 | 706004028 | Pneumatic Connector |
| 235 | 293370123 | Circlip |
| 240 | 706000869 | Connector |
| 250 | 219704415 | Hose 4.32Mm 3000Mm Long |
| 300a | 219800175 | Air Damper Kit |
| 300b | 706001018 | Elbow 90° |
| 300c | 250100119 | Jam Nut M20 |
| 310 | 706001082 | Support Plate |
| 320 | 210261050 | Hex. Forming Screw M6 X 10 |
| 350 | 207687544 | Hex. Flange Screw M8 X 75 |
| 1810 | 706000410 | Spacer |
| 1811 | 230604034 | Hex. Flange Screw M10 X 140 |
| 1812 | 233201434 | Hex. Flange Elastic Nut M10 |
