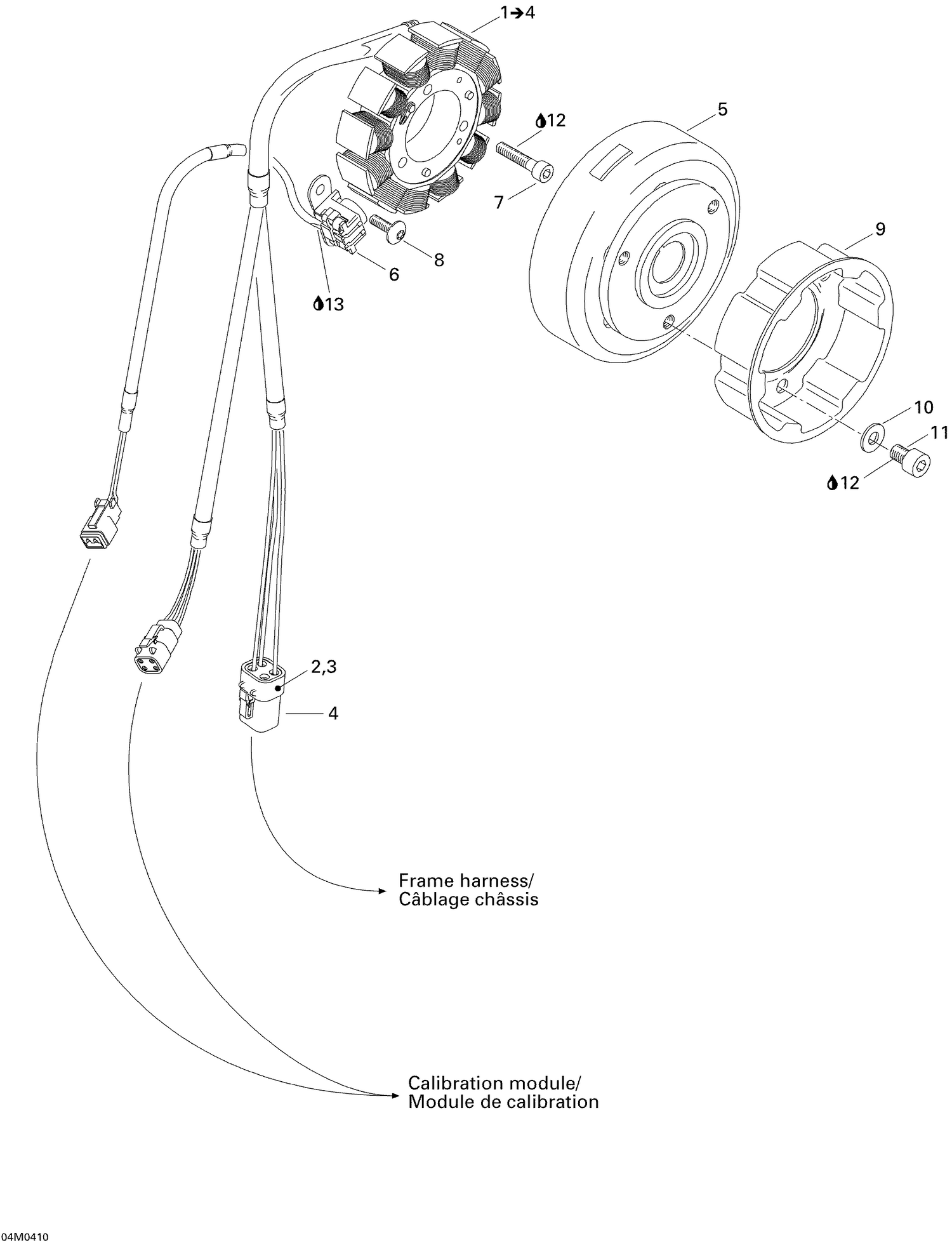

03- Magneto
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 515175567 | Female Terminal |
| 3 | 278001474 | Female Lock, 4 Circuits |
| 4 | 278001473 | Female Terminal Housing, 4 Circuits |
| 5 | 410922968 | Flywheel |
| 6 | 410922969 | Pick-Up Ass'y |
| 7 | 420840887 | SOCKET HEAD SCREW M6 X 30 - Call your local BRP dealership This part replaces 420840886. |
| 8 | 420640324 | Torx Screw M6 X 16 This part replaces 420640321. |
| 9 | 420852590 | Starting Pulley |
| 10 | 420827405 | Flat Washer |
| 11 | 420841520 | Socket Head Screw M8 X 12 |
| 12 | 293800060 | Loctite 243, 10 ml |
