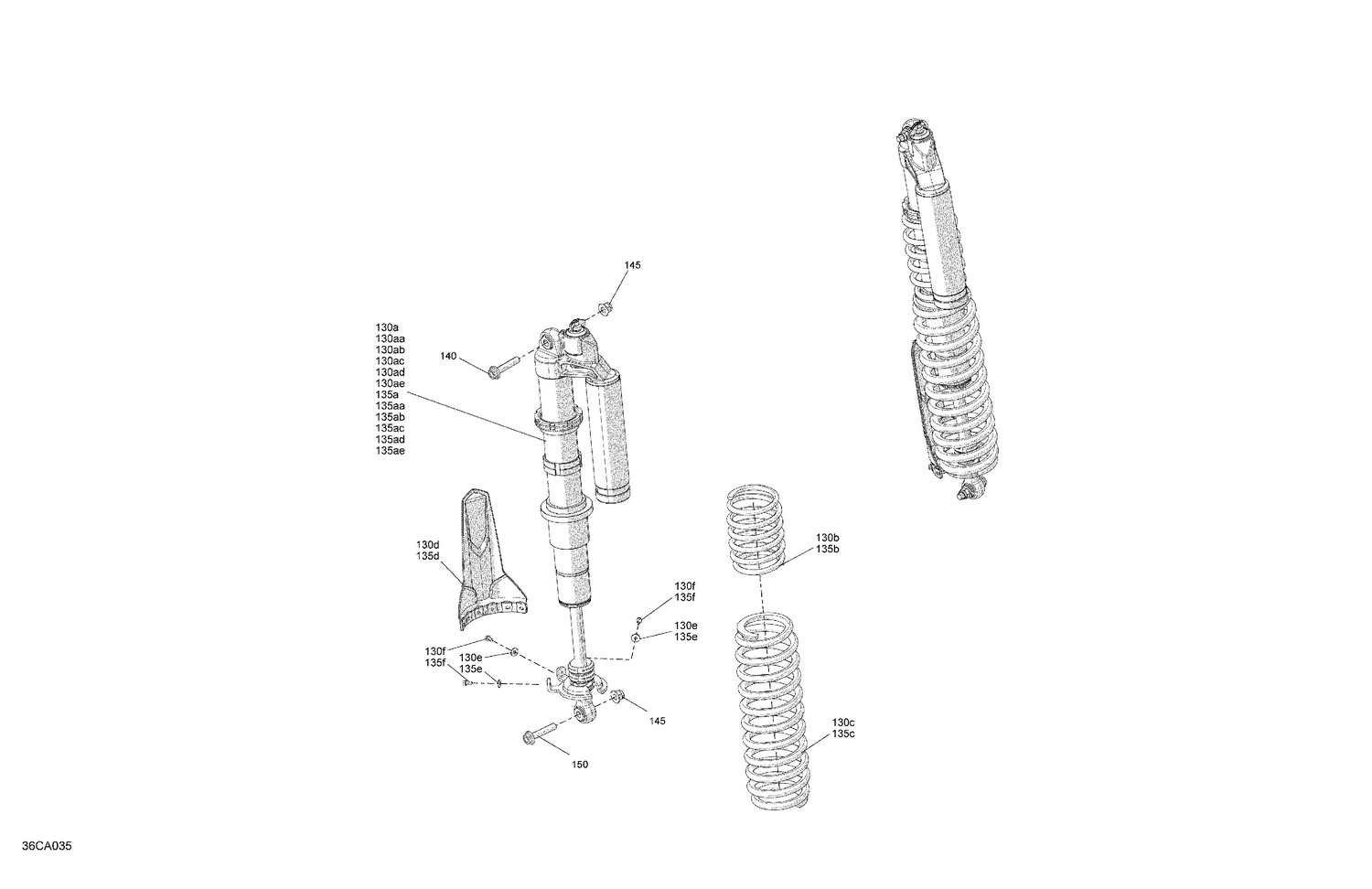

05- Suspension - Rear Shocks - RS
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 130a | 706003904 | LH Rear Shock Absorber |
| 130aa | 715900337 | Spherical Bearing |
| 130ab | 706004078 | Ball Joint This part replaces 715900482. |
| 130ac | 715900338 | O-Ring Bushing |
| 130ad | 715900480 | Circlip |
| 130ae | 715900481 | Reducer |
| 130d | 706202215 | Protector |
| 130e | 250200025 | Washer M5 |
| 130f | 210251150 | Hex Flange Screw M5 X 11 |
| 135a | 706003905 | RH Rear Shock Absorber |
| 135aa | 715900337 | Spherical Bearing |
| 135ab | 706004078 | Ball Joint This part replaces 715900482. |
| 135ac | 715900338 | O-Ring Bushing |
| 135ad | 715900480 | Circlip |
| 135ae | 715900481 | Reducer |
| 135d | 706202215 | Protector |
| 135e | 250200025 | Washer M5 |
| 135f | 210251150 | Hex Flange Screw M5 X 11 |
| 140 | 250000857 | Flange Screw M12 X 60 |
| 145 | 233221466 | Elastic Flange Nut M12 |
