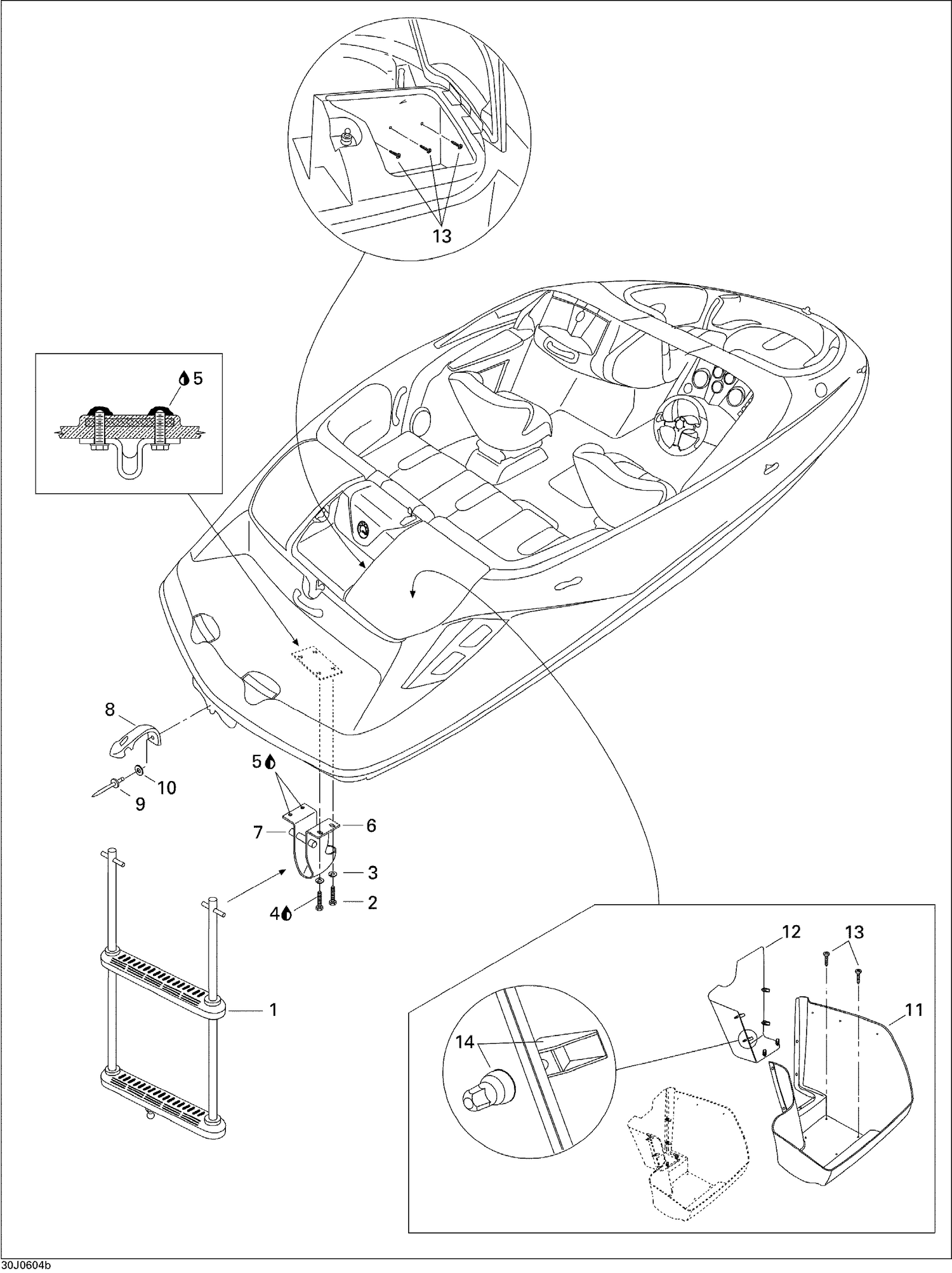

09- Lower Hull And Ladder
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 204061384 | LADDER, 2 STEPS - Call your local BRP dealership This part replaces 204060962. |
| 2 | 207163560 | Hex. Screw M6 X 35 |
| 3 | 234161601 | Lock Washer Helical M6 |
| 4 | 293800060 | Loctite 243, 10 ml |
| 5 | 296000309 | Silicone Sealant 51388, 300 ml |
| 6 | 204060141 | U-BRACKET - Call your local BRP dealership |
| 7 | 211300021 | ROLL PIN M8 X 55 - Call your local BRP dealership |
| 8 | 570027100 | Hood Latch |
| 9 | 293150013 | Pop Rivet 3/16" |
| 10 | 234052600 | Flat Washer 5 mm, Stainless |
| 11 | 204060963 | Rear Storage Bin |
| 12 | 204060964 | Rear Storage Bin Panel |
| 13 | 204100058 | Phillips Tapping Screw |
