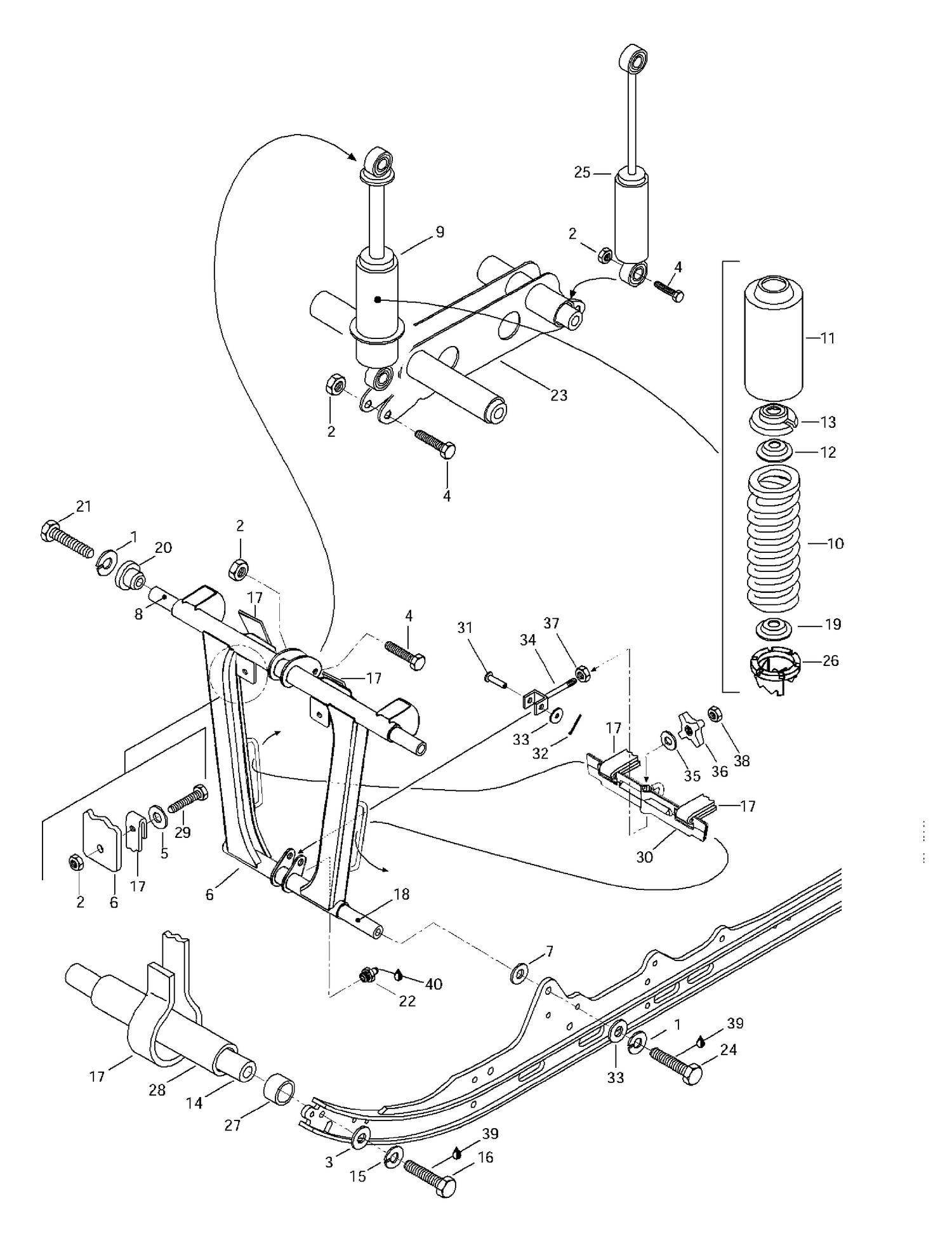

| Ref | Part Number | Description |
|---|
| 1 |
234100602 |
WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188. |
| 2 |
232581414 |
Hex. Elastic Stop Nut M8 This part replaces 228581045. |
| 3 |
234081410 |
Flat Washer 8 mm This part replaces 224081171. |
| 4 |
207084044 |
Hex. Screw M8 X 40 This part replaces 222084065. |
| 5 |
503183100 |
Washer This part replaces 503167800. |
| 6 |
503168000 |
Welded Front Arm |
| 7 |
503007900 |
Hard Washer |
| 8 |
503190387 |
SHAFT - Call your local BRP dealership This part replaces 503188938. |
| 9 |
414975700 |
Shock |
| 10 |
415070000 |
Center Shock Spring |
| 11 |
503193663 |
Protector This part replaces 517280900. |
| 12 |
706200785 |
Cap This part replaces 503141600. |
| 13 |
706200881 |
Spring Stopper This part replaces 503140600. |
| 14 |
503151600 |
Axle |
| 15 |
234181401 |
Lock Washer 8 mm This part replaces 224781140. |
| 16 |
207183044 |
Hex. Screw M8 X 30 This part replaces 222083065. |
| 17 |
503166400 |
Stopper Strap |
| 18 |
503152800 |
Axle Wheel |
| 19 |
503165100 |
GUIDE_SPRING - Call your local BRP dealership |
| 20 |
414894900 |
Cushion |
| 21 |
207006044 |
HEX. SCREW M10 X 60 - Call your local BRP dealership This part replaces 222006065. |
| 22 |
408200700 |
Grease Fitting |
| 23 |
503173300 |
Shock Support |
| 24 |
207103544 |
Hex. Screw M10 X 35 This part replaces 222003565. |
| 25 |
415040500 |
Shock |
| 26 |
503169000 |
Cam |
| 27 |
572080600 |
Spacer |
| 28 |
572059300 |
Plastic Spacer |
| 29 |
207182544 |
Hex. Screw M8 X 25 This part replaces 222082565. |
| 30 |
503166200 |
Stap Bracket |
| 31 |
415016200 |
Clevis Pin |
| 32 |
371801000 |
COTTER PIN - Call your local BRP dealership |
| 33 |
234001410 |
Flat Washer 10 mm This part replaces 224001211. |
| 34 |
503169300 |
Stopper |
| 35 |
224002251 |
FLAT WASHER - Call your local BRP dealership |
| 36 |
572034000 |
ADJUSTER KNOB - Call your local BRP dealership |
| 37 |
232006414 |
Hex. Nut M10 X 1.5 This part replaces 228001045. |
| 38 |
233601416 |
Elastic Locking Nut M10 X 1.5 This part replaces 228501045. |
| 39 |
293800005 |
Loctite 271, 10 ml This part replaces 413707400. |
