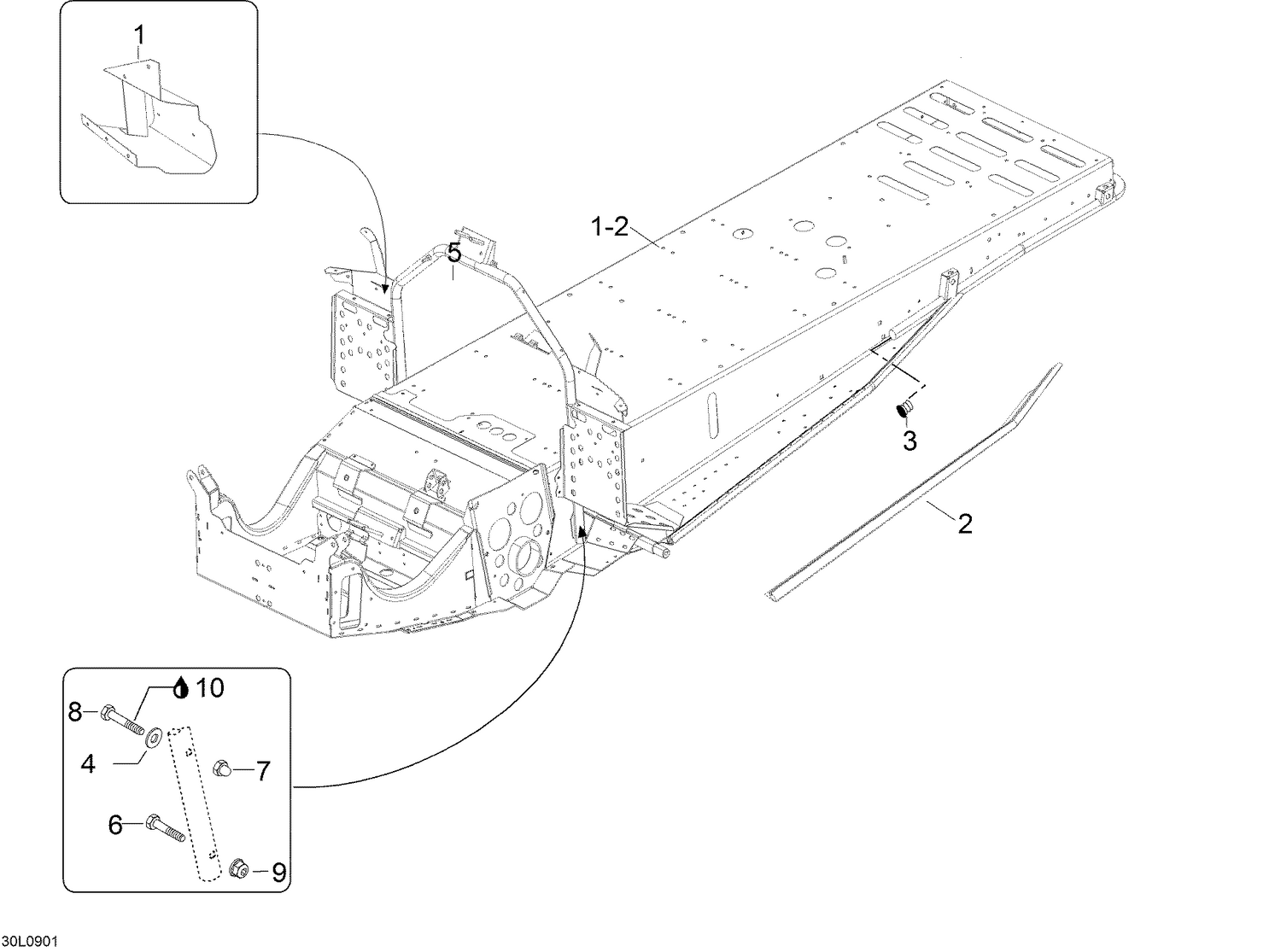

09- Frame _30L0901
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 605350839 | RH Toe Rest |
| 1 | 605350840 | LH TOE REST - Call your local BRP dealership |
| 2 | 605250773 | LH REINFORCEMENT - Call your local BRP dealership |
| 2 | 605250774 | RH REINFORCEMENT - Call your local BRP dealership |
| 3 | 28210 | Plug |
| 4 | 20003 | Washer A6,4 |
| 5 | 605151693 | Steering Support |
| 6 | 40003 | Hex. screw M6 x 35 |
| 7 | 33051 | Nut M6 |
| 8 | 40002 | Hex. screw M6 x 40 |
