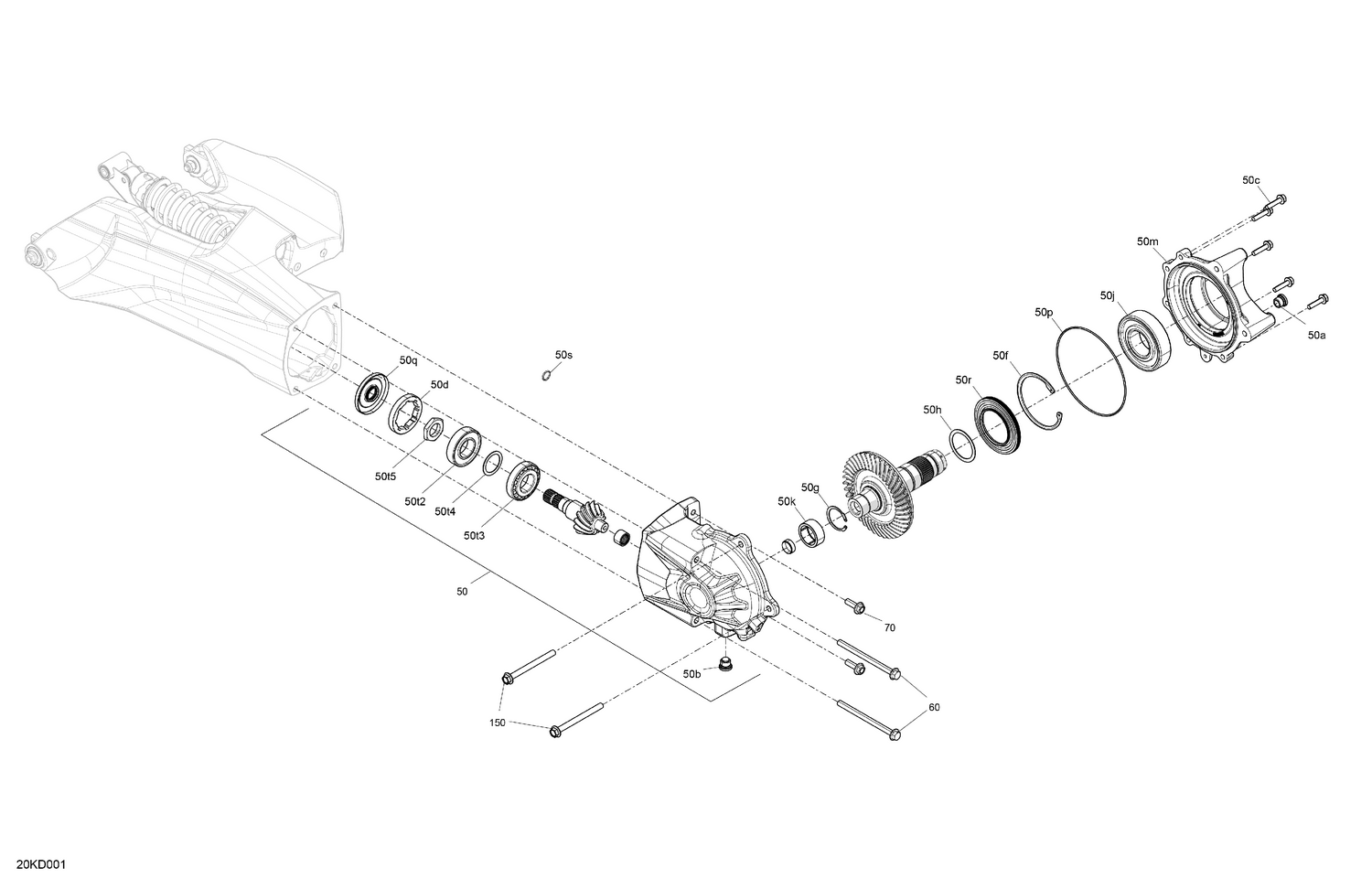

04- Drive - Final Drive Unit
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 50a | 705501889 | Fill Level Plug |
| 50b | 705502851 | Magnetic Plug Drain |
| 50c | 705502849 | Hex. Flange Screw M8 X 1.25 x 35 |
| 50d | 705401819 | Nut M75 X 1.5 |
| 50f | 705502840 | Retaining Ring OD 119mm |
| 50g | 705502841 | Retaining Ring OD 50.5mm |
| 50h | 705502843 | Shim 2.047po X 2.5po X 0.60po |
| 50j | 705502845 | Ball Bearing |
| 50k | 705502852 | Needle Bearing |
| 50m | 705502508 | Rear Cover Machined |
| 50p | 705501881 | Oil Seal iDIA 6.737 oDIA 6.943 |
| 50q | 705401827 | Oil Seal, Triple Lip 25 X 79 X 8 |
| 50r | 705502847 | Oil Seal, Single Lip 68 X 110 X 8 |
| 50s | 219800486 | O-Ring |
| 50t2 | 219800476 | Gear Helical 13 Teeth ass'y |
| 50t3 | 219800476 | Gear Helical 13 Teeth ass'y |
| 50t4 | 219800476 | Gear Helical 13 Teeth ass'y |
| 50t5 | 705401820 | Nut M27 X 1.5 |
| 60 | 230604056 | Hex. Flange Screw M10 X 140 |
| 70 | 250001080 | Screw-Hex.Flange M10 X 35 S.Grip |
