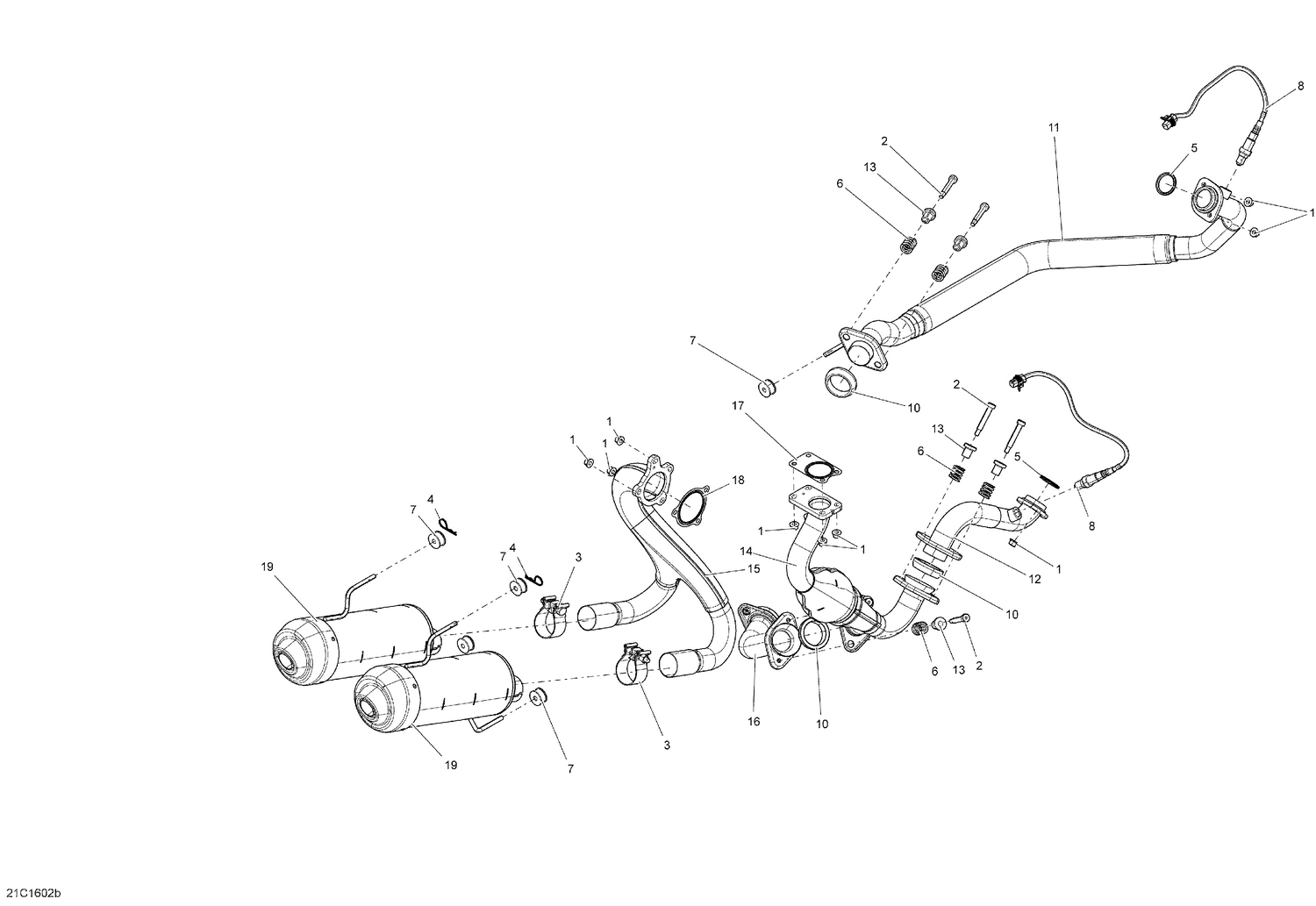

01- Exhaust System - Turbo
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 233081416 | Hex. Flange Nut M8 |
| 2 | 250000658 | Socket Head Screw M10 X 50 |
| 5 | 707600317 | Gasket |
| 6 | 707600682 | Spring |
| 7 | 707600702 | Anti-Vibration Rubber |
| 8 | 707600872 | Oxygen Sensor |
| 10 | 707601128 | Seal |
| 11 | 707601616 | FRONT HEAD PIPE - Call your local BRP dealership |
| 12 | 707602036 | REAR EXHAUST PIPE - Call your local BRP dealership This part replaces 707601617. |
| 13 | 707601254 | Bushing |
| 14 | 707601464 | Head Pipe |
| 15 | 707601465 | PIPE_EXHAUST OUT WELD - Call your local BRP dealership |
| 16 | 707601546 | PIPE_EXHAUST IN WELD - Call your local BRP dealership |
| 17 | 707601565 | Seal |
| 18 | 707601566 | Seal |
