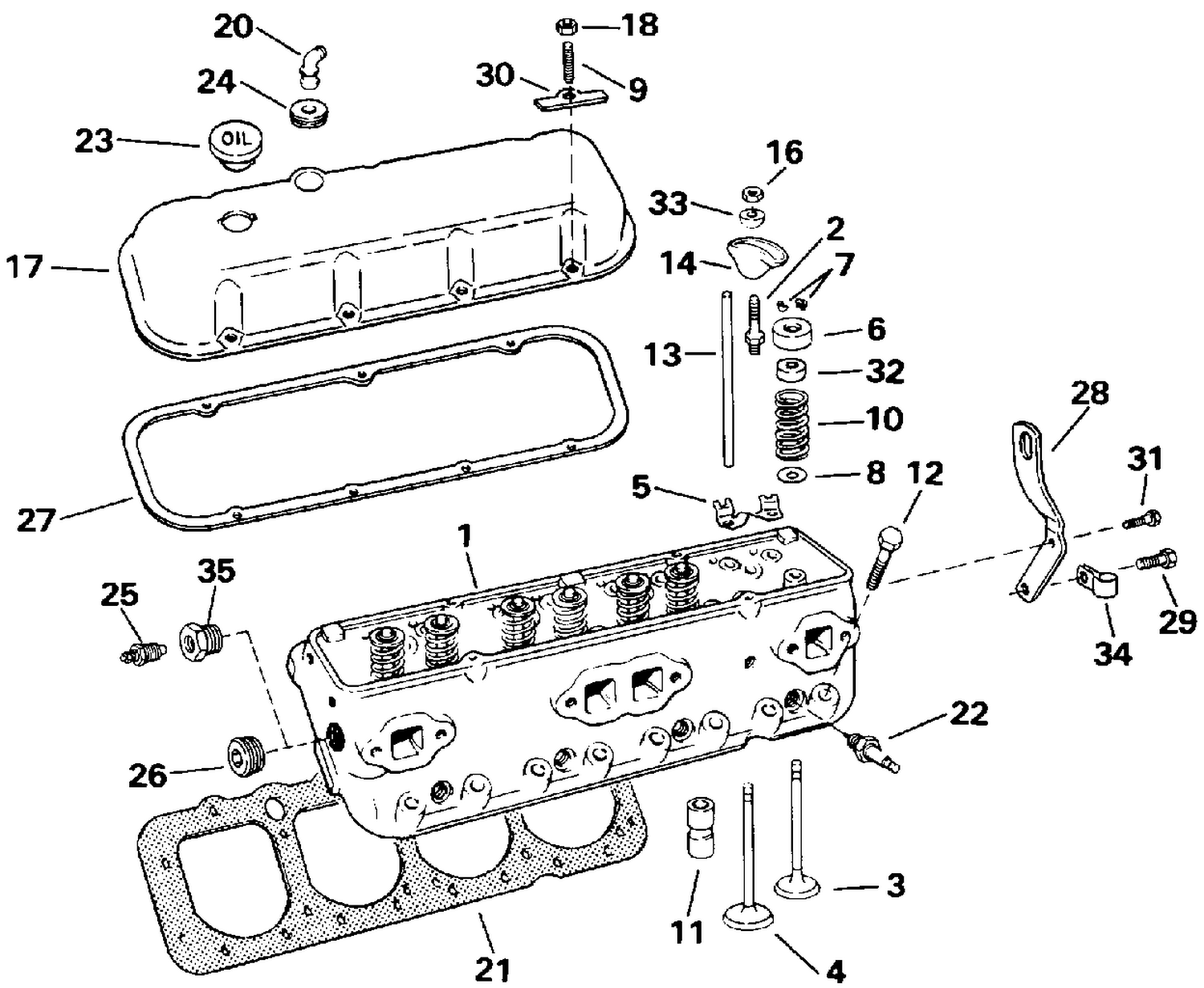

CYLINDER HEAD -744APERGD & 744APERGF MODELS

CYLINDER HEAD -744APERGD & 744APERGF MODELS

Parts (42)

RefPart NumberDescription
1 0986071 CYLINDER HEAD ASSY
2 0914844 STUD, Cylinder head
3 3853349 VALVE, Intake, standard This part replaces 0914840.
3 3853415 Valve This part replaces 0915033.
3 3853416 Valve This part replaces 0915034.
3 3853417 Valve This part replaces 0915035.
4 0915242 VALVE, Exhaust, 0.030 O/S
4 3853350 VALVE, Exhaust, standard This part replaces 0914841.
4 3855058 VALVE, Exhaust, 0.003 O.S. This part replaces 0915240.
4 3855059 VALVE, Exhaust, 0.015 O.S. This part replaces 0915241.
5 0914845 GUIDE, Push rod
6 0914711 CAP & SEAL
7 3853351 KEY, Valve stem This part replaces 0914843.
8 3853352 Shim This part replaces 0914846.
9 0912963 STUD, Valve cover
10 0986758 VALVE SPRING & DAMPER
11 3854099 Lifter Ay This part replaces 0986766.
12 3854766 BOLT, Cylinder head, long This part replaces 0914847.
12 3854767 BOLT, Cylinder head, short This part replaces 0914848.
13 0913698 PUSH ROD, Intake
13 0913699 PUSH ROD, Exhaust
14 0915255 ARM, Valve rocker This part replaces 0914884.
16 0914886 NUT, Rocker arm
17 0914880 VALVE COVE
18 3853206 NUT, Rear seal retainer This part replaces 0914417.
20 0311545 ELBOW
21 0914849 GASKET, Cylinder head
22 0979826 GASKET, Cylinder head
22 3854400 SPARK PLUG, Champion RV15YC4 This part replaces 0979827.
23 3853842 OIL CAP, Push-on This part replaces 0985084.
24 0909417 GROMMET, Valve cover
25 0171960 SENDER, Water temperature
26 0908601 PLUG, 1 in.
27 0914883 GASKET, Valve cover
28 3854377 BRACKET, Cylinder head This part replaces 0914543.
29 3853154 SCREW, Bracket to cylinder head This part replaces 0914349.
30 0914881 REINFORCEMENT, Outer
30 0914882 REINFORCEMENT, Inner
31 3853266 BOLT, Distributor This part replaces 0914544.
32 0914842 SEAL, Valve stem
33 0914885 BALL, Rocker arm
34 3853335 Clamp This part replaces 0914806.
