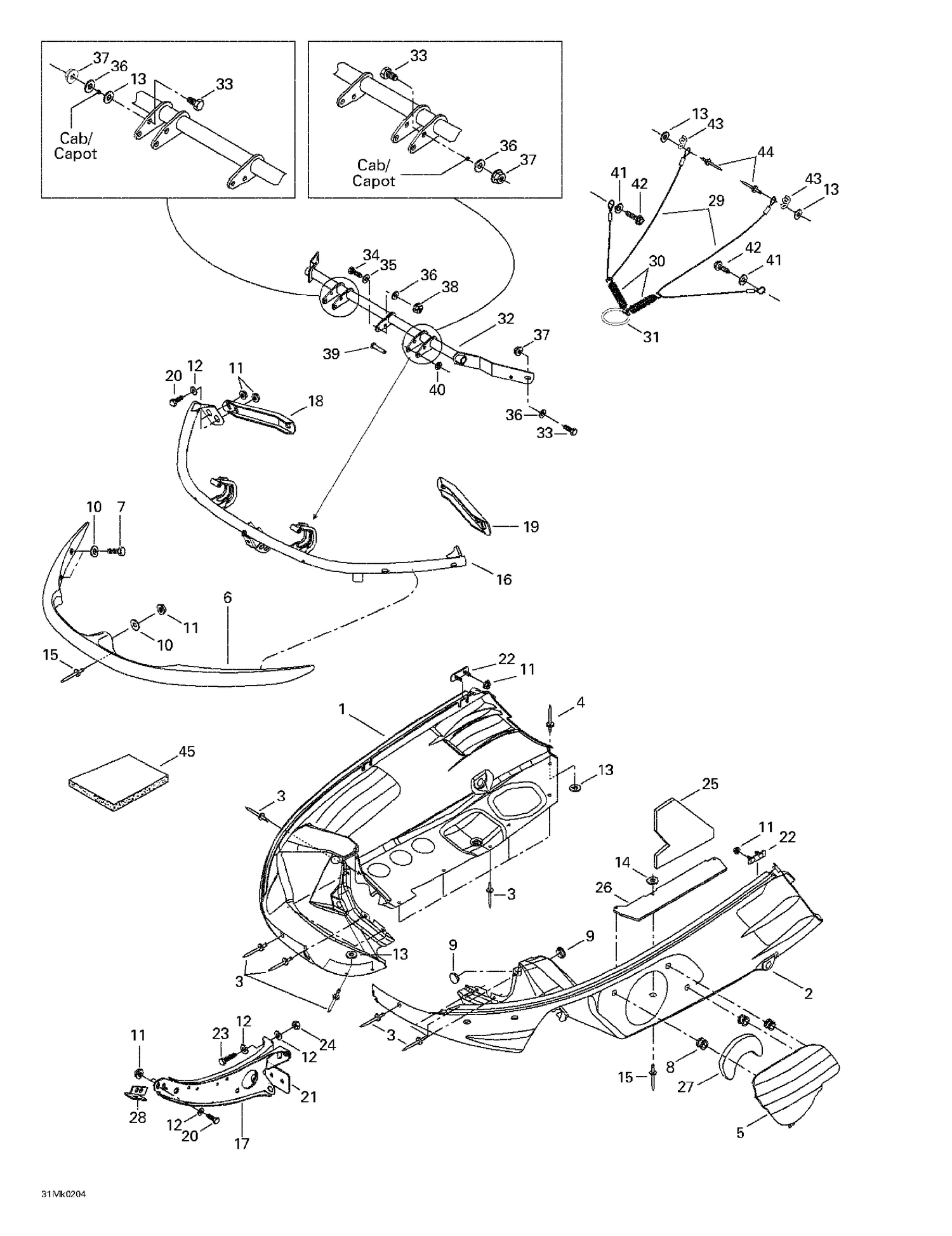

09- Bottom Pan
Parts (45)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 572087000 | Deep Black, RH Bottom Pan |
| 2 | 572087100 | Deep Black, LH Bottom Pan |
| 3 | 293150104 | Pop Rivet 3/16" This part replaces 390409600. |
| 4 | 390402300 | Pop Rivet 3/16" |
| 5 | 572098500 | DEEP BLACK, BOTTOM PAN DOOR - Call your local BRP dealership |
| 6 | 572087200 | Deep Black, Front Bumper |
| 7 | 207063044 | Hex. Screw M6 X 30 |
| 8 | 414036300 | Grommet |
| 9 | 414916600 | Black, Nylon Cap |
| 10 | 224061201 | Flat Washer |
| 11 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 12 | 224061121 | Flat Washer |
| 13 | 517124300 | Washer |
| 14 | 517225900 | Flat Washer |
| 15 | 293150104 | Pop Rivet 3/16" This part replaces 390907700. |
| 16 | 502006523 | Hinge Bracket |
| 17 | 502006549 | Center Support |
| 18 | 517288400 | RH Support |
| 19 | 517288500 | LH Support |
| 20 | 207162044 | Hex. Screw M6 X 20 |
| 21 | 517288600 | Plate |
| 22 | 517294300 | Bracket |
| 23 | 207066044 | Hex. Screw M6 X 60 |
| 24 | 232561414 | Elastic Stop Nut M6 |
| 25 | 415111300 | Foam, Bottom Pan |
| 26 | 517299500 | Protector |
| 27 | 415112800 | Foam, Door |
| 28 | 517302009 | Front Support |
| 29 | 415093900 | RETAINER CABLE - Call your local BRP dealership |
| 30 | 414185600 | Spring |
| 31 | 415058300 | RING - Call your local BRP dealership |
| 32 | 517302187 | Hinge |
| 33 | 207151644 | Hex. Screw M5 X 16 |
| 34 | 207141644 | HEX. SCREW M4 X 16 - Call your local BRP dealership |
| 35 | 391301000 | WASHER - Call your local BRP dealership |
| 36 | 420845330 | WASHER-LOCK SERRATED INT.EXT.M6 - Call your local BRP dealership This part replaces 420845270. |
| 37 | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
| 38 | 232541484 | Elastic Stop Nut M4 This part replaces 233241414. |
| 39 | 390004800 | RIVET-STEEL SOLID - Call your local BRP dealership |
| 40 | 389804300 | Push Nut |
| 41 | 391301600 | Washer |
| 42 | 365901100 | HEX. SCREW 12 X 3/4 - Call your local BRP dealership |
| 43 | 517262800 | Bracket |
| 44 | 390406500 | Pop Rivet 3/16" |
| 45 | 414632400 | Acoustic Foam |
