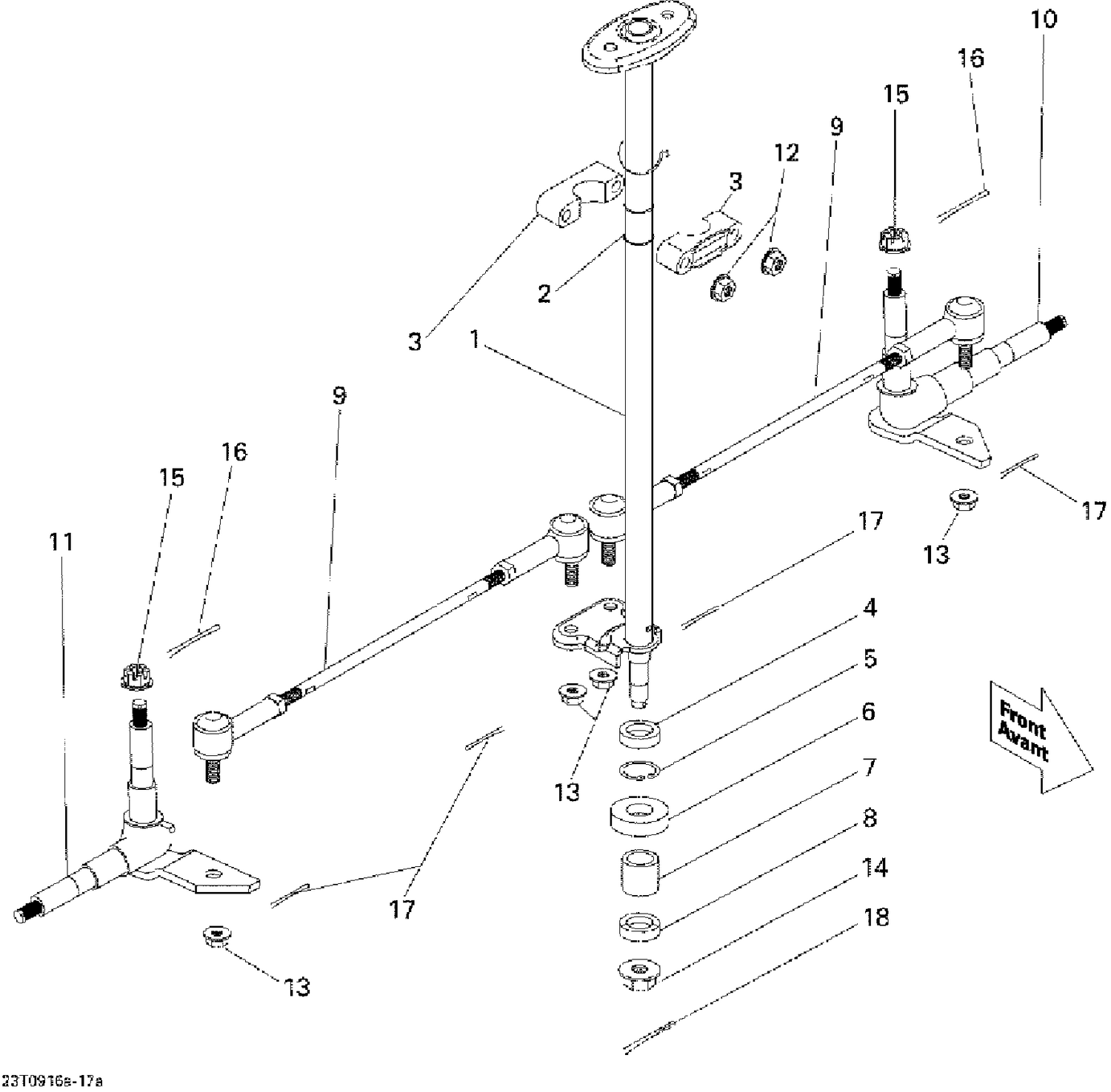

07- Steering
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | V53200DGF090 | Steering Column This part replaces V53200DGF050BK. |
| 2 | V53217MAA020 | Sleeve This part replaces V53217MAA000. |
| 3 | V53434MAA020BK | Steering Shaft Holder This part replaces V53434MAA000BK. |
| 4 | V92101MAA000 | Oil Seal |
| 5 | V9452032000 | C-Circlip This part replaces V90601MAA000. |
| 6 | A961006002ZZ | Radial Ball Bearing, 6002ZZ |
| 7 | V22112MAA010 | Collar This part replaces V22112MAA000. |
| 8 | V92102MAA000 | Oil Seal |
| 9 | V53180MAA020LL | Tie Rod Ass'y This part replaces V53180MAA000. |
| 10 | V51215MAA000 | LH Knuckle |
| 11 | V51210MAA000 | RH Knuckle |
| 12 | 232581414 | Hex. Elastic Stop Nut M8 |
| 13 | 232501416 | Elastic Flange Nut M10 This part replaces A9035010000. |
| 14 | 232571414 | NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership |
| 15 | V9035210000LL | Lock Nut This part replaces V9035210000. |
| 16 | V9420117020LL | Cotter Pin This part replaces V9420117020. |
| 17 | V9420125030 | Cotter Pin |
