Home / BRP / EVINRUDE / 1991 / 35 / 09- Bottom Pan

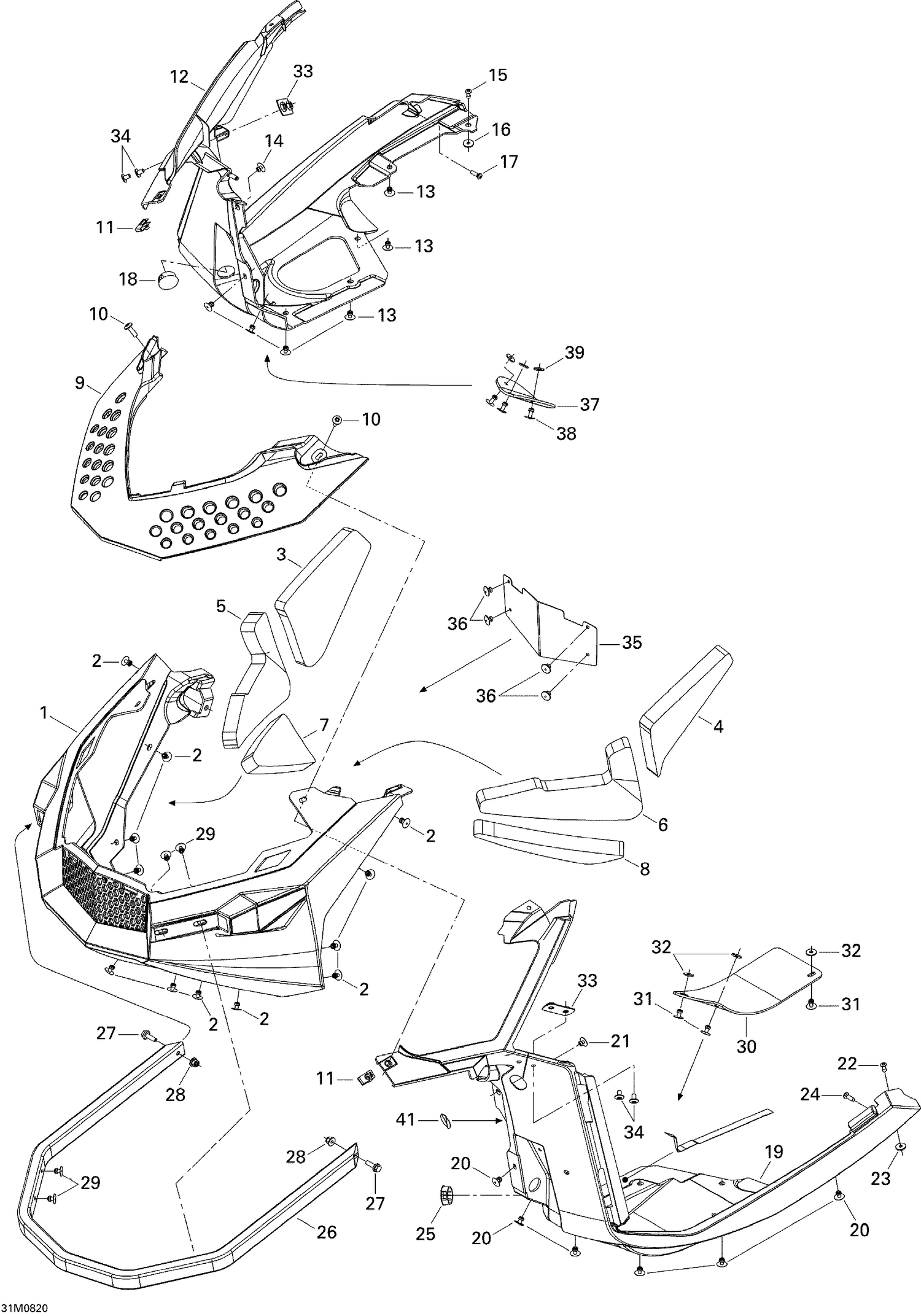

09- Bottom Pan

09- Bottom Pan

Parts (40)

RefPart NumberDescription
1 502006971 Black, Front Bottom Pan This part replaces 502006825.
2 293150104 Pop Rivet 3/16"
3 502007210 RH Foam Upper This part replaces 502006829.
4 502007211 LH Foam Upper This part replaces 502006830.
5 502007212 RH Middle Foam This part replaces 502006906.
6 502007213 LH Middle Foam This part replaces 502006907.
7 502007214 RH Lower Foam This part replaces 502006908.
8 502007215 LH Lower Foam This part replaces 502006909.
9 502007068 Deep Black Bottom Pan Cap This part replaces 502006827.
10 250000722 Torx Screw M6 X 20 This part replaces 250000128.
11 250100198 Panel Nut M6 X 1.0 This part replaces 250000048.
12 502006831 Black, RH Bottom Pan This part replaces 502006934.
13 293150104 Pop Rivet 3/16"
14 293150103 Pop Rivet 3/16"
15 390402300 Pop Rivet 3/16"
16 517124300 Washer
17 250000720 Torx Screw K50 X 16 This part replaces 250000146.
18 414916600 Black, Nylon Cap
19 502006832 Deep Black LH Bottom Pan This part replaces 502006890.
20 293150104 Pop Rivet 3/16"
21 293150103 Pop Rivet 3/16"
22 390402300 Pop Rivet 3/16"
23 517124300 Washer
24 250000720 Torx Screw K50 X 16 This part replaces 250000146.
25 414916600 Black, Nylon Cap
26 502007116 Black Front Bumper This part replaces 502006833.
27 207662044 Hex. Flange Screw M6 X 20
28 233261414 Hex. Flange Elastic Nut M6 x 1.0
29 293150104 Pop Rivet 3/16"
30 502006888 GUARD PLATE - Call your local BRP dealership
31 293150104 Pop Rivet 3/16"
32 517124300 Washer
33 502006949 Plate
34 250000995 Torx-truss M/s M6 X 10 This part replaces 250000210.
35 502006933 PAN BOTTOM PLATE - Call your local BRP dealership
36 293150103 Pop Rivet 3/16"
37 502006935 Snow Deflector
38 293150104 Pop Rivet 3/16"
39 517124300 Washer
40 219704476 Gasket, Neoprene 2000Mm Long This part replaces 219704372.
