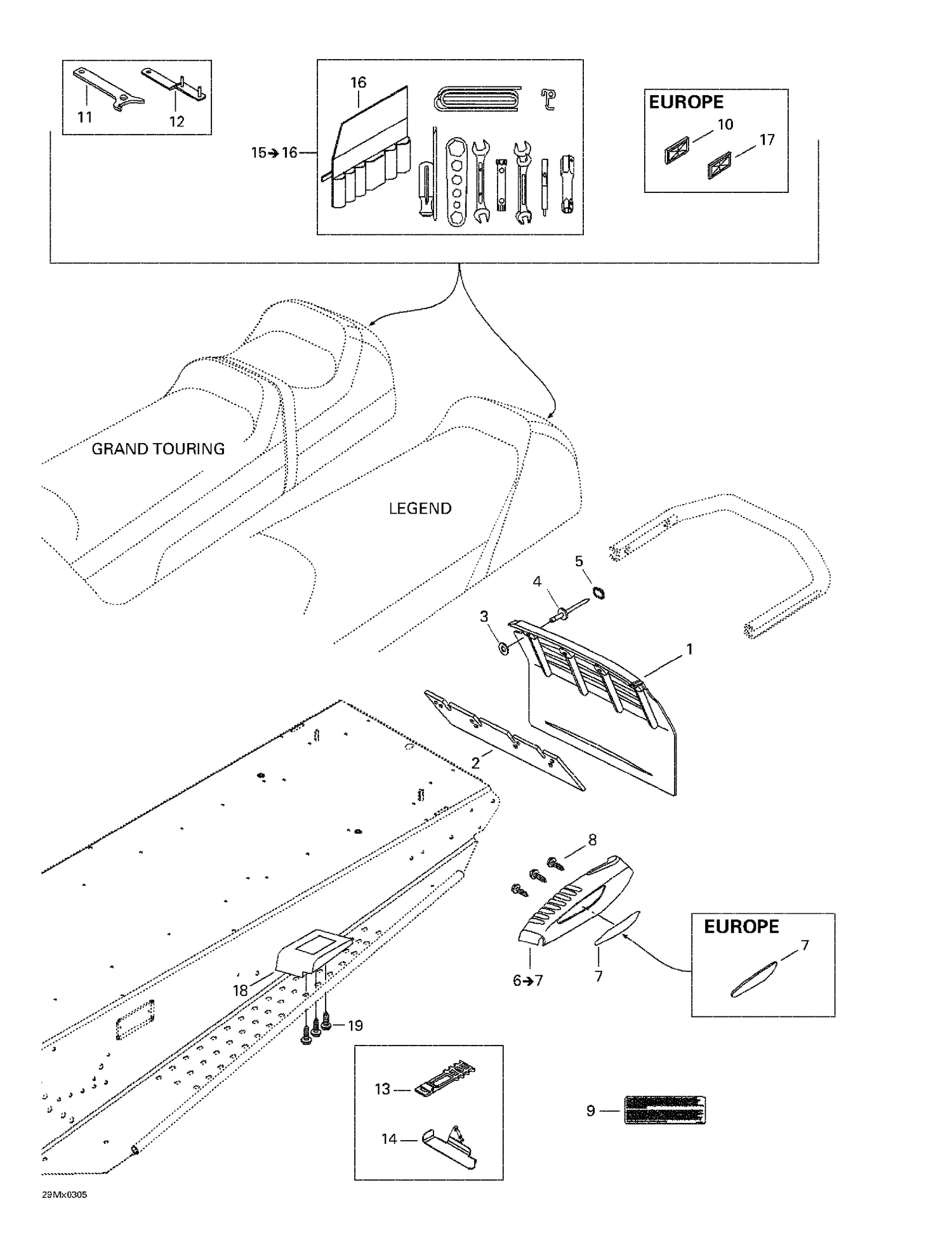

09- Frame And Accessories
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 520000223 | Snow Guard, Canada/Us |
| 2 | 572108200 | REINFORCEMENT - Call your local BRP dealership |
| 3 | 517225900 | Flat Washer |
| 4 | 293150087 | Pop Rivet 3/16” This part replaces 293150087. |
| 5 | 415073300 | Cap |
| 7 | 516000237 | RH Reflector, Red |
| 8 | 243141630 | Hex. Plastic Screw M4.8 X 16 This part replaces 243141640. |
| 9 | 516001681 | Pending Label |
| 11 | 529000035 | Adjustment Wrench This part replaces 529032900. |
| 12 | 520000126 | Adjustment Wrench |
| 13 | 570069700 | LATCH - Call your local BRP dealership |
| 14 | 518321999 | Tool Kit Support |
| 16 | 520000047 | Tool Bag |
| 516000238 | LH | Reflector, Red 516000238 |
| 516000238 | Réflecteur | GA, Rouge 516000238 |
