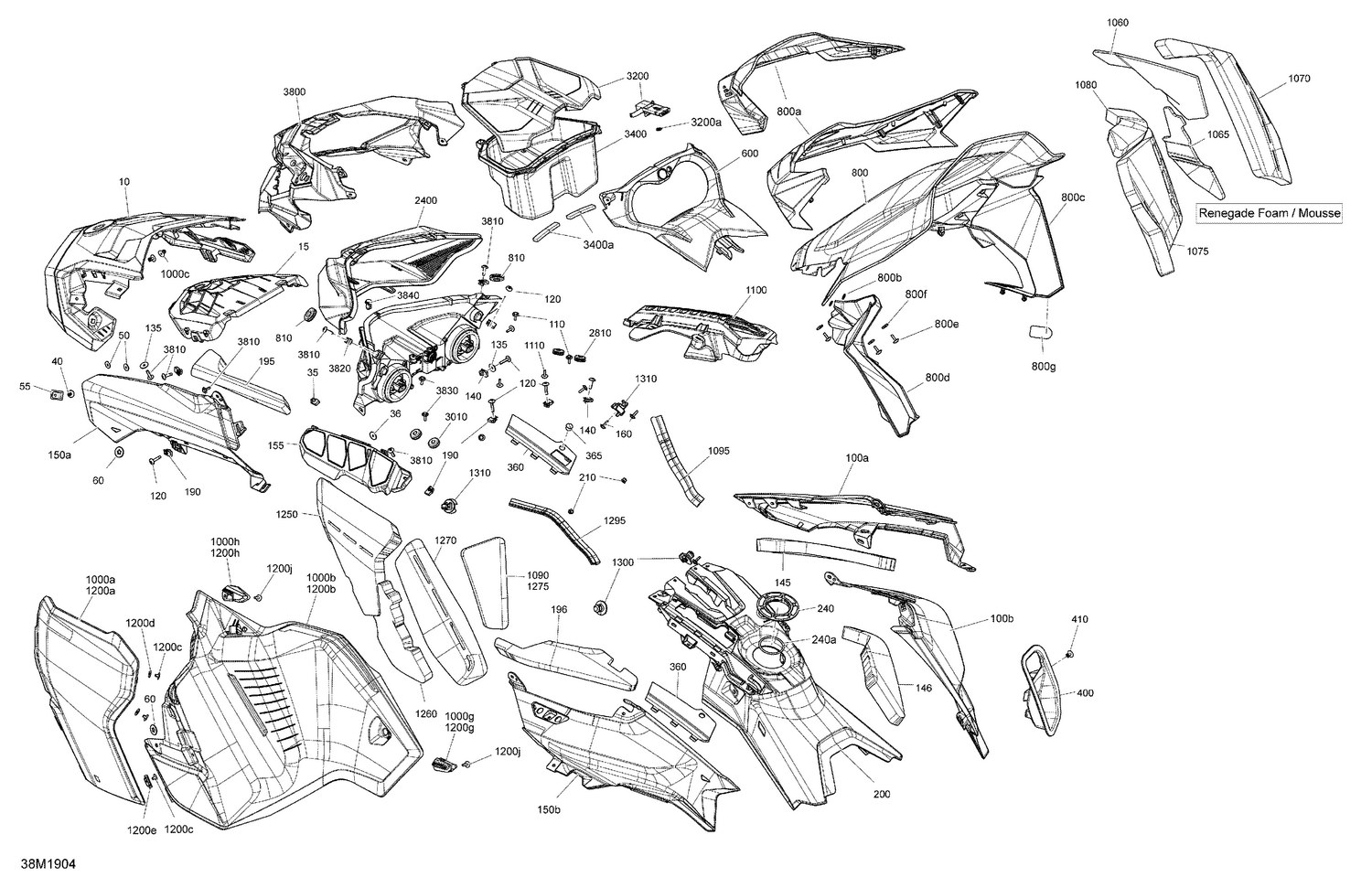

09- Hood - Package X
Parts (56)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 517306284 | Deep Black, Center Hood |
| 15 | 517306424 | Center Hood Grille |
| 35 | 250000958 | Panel Nut M5 X 0.8 |
| 36 | 250200166 | Washer |
| 40 | 293150104 | Pop Rivet 3/16" |
| 50 | 517124300 | Washer |
| 55 | 517305109 | Rivet Plate |
| 60 | 508000853 | Push Nut |
| 110 | 250000725 | Screw M4 X 16 |
| 120 | 250000528 | Torx Screw M5 X 20 |
| 135 | 250200166 | Washer |
| 140 | 250000958 | Panel Nut M5 X 0.8 |
| 145 | 517305763 | RH Front Hood Foam |
| 146 | 517306001 | RH Hood Foam |
| 155 | 517306470 | LH Hood Trim |
| 160 | 250000725 | Screw M4 X 16 |
| 170 | 250000528 | Torx Screw M5 X 20 |
| 180 | 250000587 | Torx Screw M5 X 26 |
| 185 | 250200166 | Washer |
| 190 | 250000958 | Panel Nut M5 X 0.8 |
| 195 | 517305764 | LH Front Hood Foam |
| 196 | 517306002 | LH Hood Foam |
| 200 | 517306830 | Rear Console |
| 210 | 233251434 | Flange Elastic Nut M5 |
| 230 | 250000958 | Panel Nut M5 X 0.8 |
| 240 | 517306602 | Console Nut |
| 240a | 706002839 | O-Ring |
| 360 | 517306582 | LH Front Console |
| 365 | 572051500 | Cap |
| 400 | 517306302 | Reverse Lever Trim |
| 410 | 293150104 | Pop Rivet 3/16" |
| 1000g | 517305773 | RH Rear Latch |
| 1000h | 517305979 | RH Front Latch |
| 1060 | 517306461 | Foam |
| 1065 | 517306495 | Foam |
| 1070 | 517306462 | Foam |
| 1095 | 219704371 | Neoprene Seal 3000 mm Long This part replaces 517307001. |
| 1100 | 517308292 | RH Hood Grille Ass'y This part replaces 517306307. |
| 1110 | 250000725 | Screw M4 X 16 |
| 1250 | 517306463 | Foam |
| 1260 | 517306464 | Foam |
| 1270 | 517306465 | Foam |
| 1275 | 517306496 | LH Rear Panel Foam |
| 1295 | 219704371 | Neoprene Seal 3000 mm Long This part replaces 517307001. |
| 1300 | 517305985 | Rear Stud |
| 1310 | 517305988 | Front Stud |
| 2400 | 517305752 | Headlamp |
| 2400a | 415130081 | Bulb |
| 2810 | 517307161 | Grommet This part replaces 517302841. |
| 3010 | 517307161 | Grommet This part replaces 517302841. |
| 3200a | 732610072 | Push Nut |
| 3400a | 517305157 | Seal Joint |
| 3800 | 517306301 | Headlamp Fairing |
| 3810 | 250000528 | Torx Screw M5 X 20 |
| 3820 | 250000958 | Panel Nut M5 X 0.8 |
| 3830 | 250000725 | Screw M4 X 16 |
