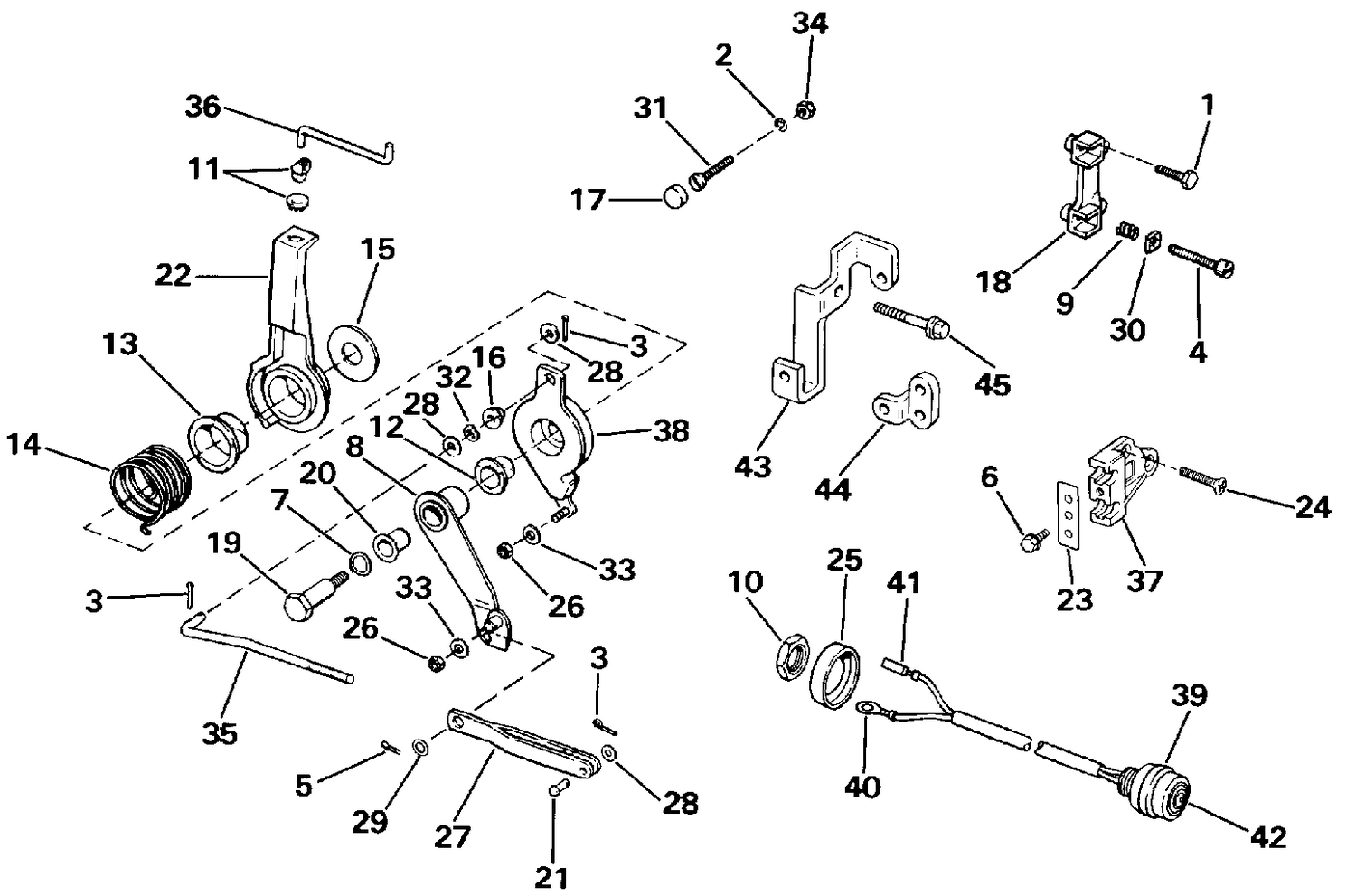

| Ref | Part Number | Description |
|---|
| 1 |
0302288 |
BOLT |
| 4 |
0306337 |
SCREW, Adjustment |
| 7 |
0908060 |
BOW WASHER, Shoulder screw |
| 8 |
0393545 |
BELLCRANK ASSY., Shift |
| 11 |
0395448 |
BALL & SOCKET ASSY |
| 12 |
0314002 |
BUSHING |
| 13 |
0314003 |
BSHING, Spark lever |
| 14 |
0314094 |
LINK, Throttle lever to cam |
| 15 |
0314098 |
WASHER, Throttle lever |
| 17 |
0314416 |
BUMBER, Advance screw |
| 18 |
0316664 |
BRACKET, Adjustment |
| 19 |
0318192 |
SHDLR. SCREW, Throttle lever |
| 20 |
0318193 |
BUSHING |
| 22 |
0319318 |
LEVER, Spark adavance |
| 24 |
0324315 |
SCREW, Anchor block |
| 26 |
0328567 |
LINK, Bellcrank |
| 27 |
0328567 |
LINK, Bellcrank |
| 31 |
0328722 |
SCREW, Spark adjust |
| 32 |
0328734 |
BOW WASHER |
| 33 |
0328737 |
RONDELLE, levier de sens de marche et manette des gaz |
| 35 |
0329889 |
LINK Throttle lever to cam |
| 36 |
0330275 |
LINK, Spark advance |
| 37 |
0332683 |
ANCHOR BLOCK |
| 38 |
0387800 |
LEVER, Throttle |
| 43 |
0332572 |
STARTER LOCKOUT BRACKET |
| 44 |
0332571 |
STARTER LOCKOUT CONN. |
| 0397629 |
0397629 |
REMOTE CONTROL KIT |
