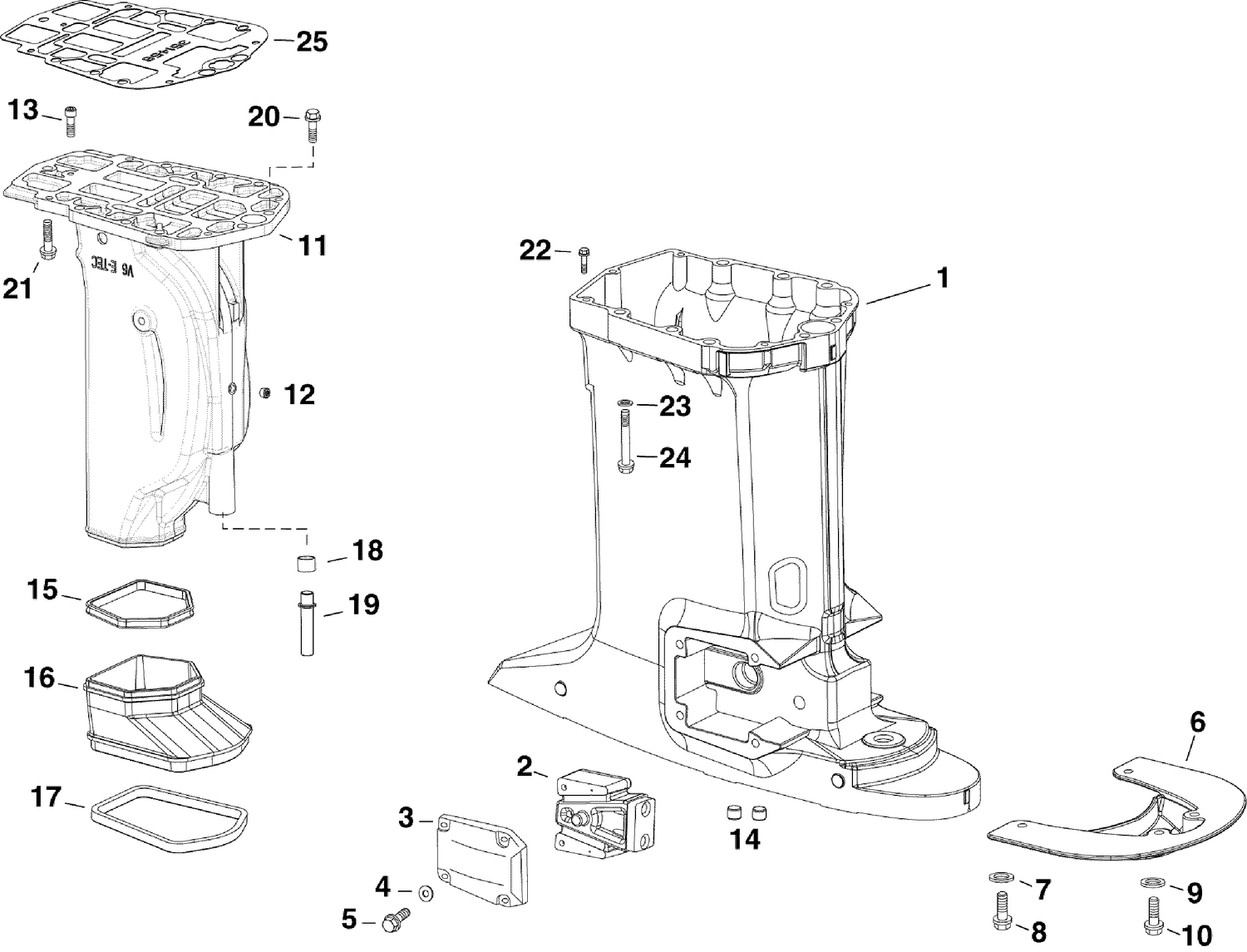

EXHAUST HOUSING
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 0434632 | MONTURE CAOUTCHOUC, inférieur |
| 3 | 0338741 | COVER, Mount bracket lower |
| 5 | 0341013 | SCREW, Cover |
| 11 | 5007767 | EXHAUST HOUSING, Inner, upper |
| 13 | 0352824 | SCREW, Inner to outer housing, rear |
| 15 | 0320936 | JOINT, boîtier échappement, inférieur |
| 17 | 0320961 | JOINT, boîtier d'engrenages vers carter intérieur |
| 20 | 0309484 | SCREW |
| 22 | 0352946 | SCREW, C/C to adapter |
| 24 | 0356803 | SCREW, Adapter to cylinder, long This part replaces 0352947. |
