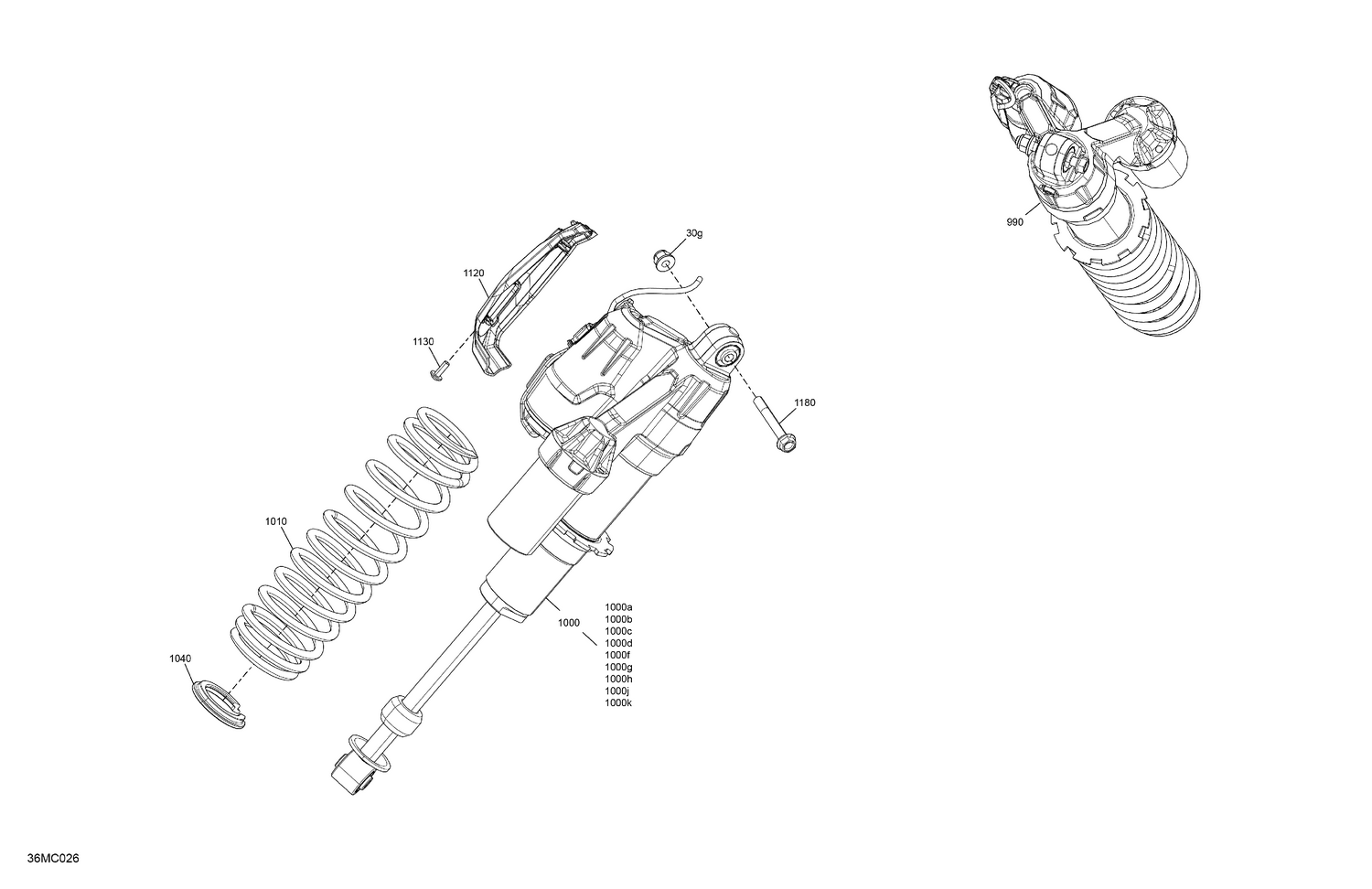

05- Suspension - Front Shock
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 990 | 505074749 | RH Front Shock Absorber |
| 1000b | 415093807 | O-Ring |
| 1000c | 415093806 | Piston Ring |
| 1000d | 505070399 | Screw |
| 1000f | 505070400 | O-Ring |
| 1000g | 715900076 | Circlip - Call your local BRP dealership |
| 1000h | 415093804 | O-Ring |
| 1000j | 415093810 | Bolt |
| 1000k | 415038700 | O-Ring |
| 1000m | 415130165 | Base Valve |
| 1010 | 505075194 | Deep Black, Spring |
| 1040 | 503194270 | Spring Stopper |
| 1120 | 503196017 | Connector Guard |
| 1130 | 250000742 | Torx Screw M5 X 14 |
| 1180 | 250000824 | Hex. Flange Screw M8 X 58 |
