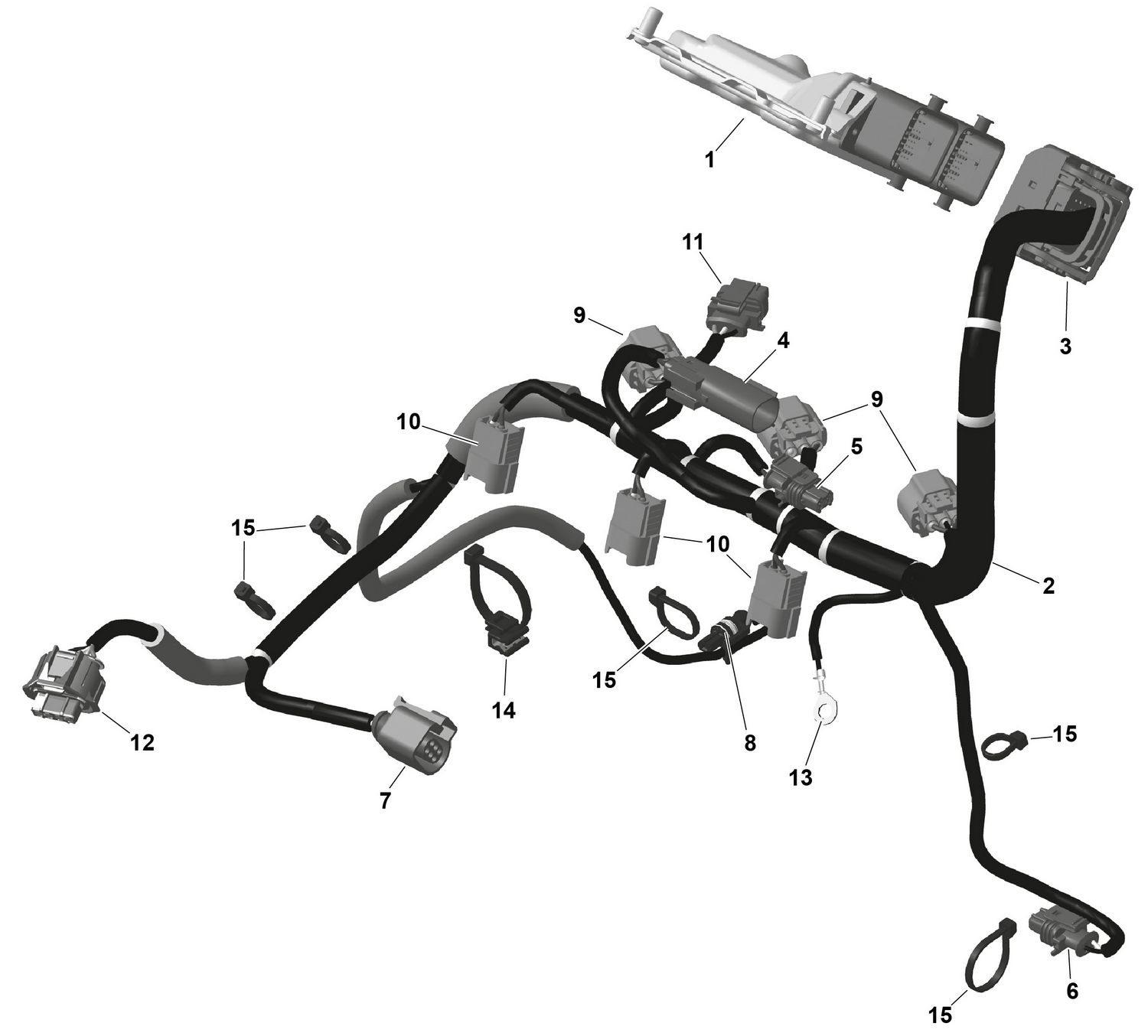

01- ROTAX - Engine Harness And Electronic Module
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 420264428 | Wiring Harness Ass'y |
| 3 | XXX | Not Available As Spare Parts |
| 4 | 515178347 | Male Housing Connector 4 Pins |
| 5 | 278001005 | Female Housing, 2 Circuits |
| 6 | 278001005 | Female Housing, 2 Circuits |
| 7 | 515177406 | Female Housing |
| 8 | 278001012 | Male Housing, 1 Circuit |
| 9 | 515176176 | Female Terminal Housing, 3 Circuits |
| 10 | 278003197 | Housing |
| 11 | 515176410 | Male Connector |
| 12 | 278000992 | Ground With Capacitor |
| 13 | 515178347 | Male Housing Connector 4 Pins |
| 14 | 420951655 | Tie-Rap With Mount |
