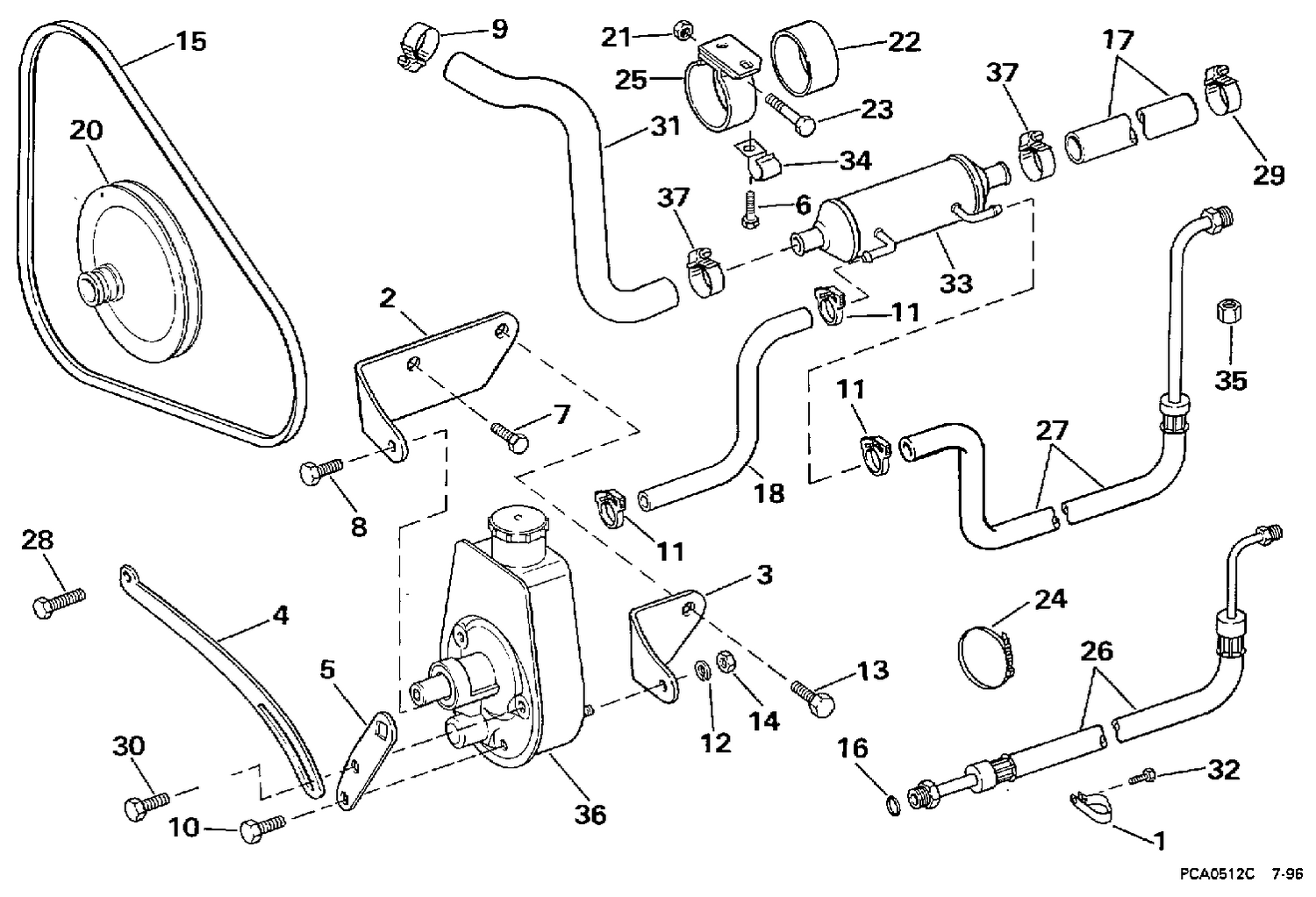

| Ref | Part Number | Description |
|---|
| 1 |
3852837 |
CLAMP, Hoses to cylinder head |
| 2 |
3852500 |
BRACKET, Steering pump, front |
| 3 |
3852501 |
BRACKET, Steering pump, rear |
| 4 |
3853328 |
BRACE, Steering pump |
| 5 |
3853327 |
BRACE, Belt adjustment |
| 6 |
3853557 |
SCREW, Brace to alterntr bracket |
| 7 |
3853557 |
SCREW, Brace to alterntr bracket |
| 8 |
3853405 |
SCREW, Adjustment bracket |
| 9 |
3850422 |
CLAMP, Water hose inlet |
| 10 |
3853405 |
SCREW, Adjustment bracket |
| 12 |
3852496 |
LOCK WASHER, Bracket to pump |
| 13 |
3853256 |
GASKET, Manifold to head |
| 14 |
3852498 |
NUT, Pump to bracket, rear |
| 15 |
3853331 |
BELT, Power steering pump |
| 16 |
3855005 |
COVER & INSERT This part replaces 3852397. |
| 17 |
3852305 |
HOSE, Gimbal to oil cooler |
| 18 |
3852574 |
HOSE, Cooler to pump, return |
| 20 |
3853804 |
PULLEY, Steering pump |
| 21 |
3852079 |
BRACKET, Oil cooler |
| 22 |
3853236 |
SLEEVE, Ignition coil |
| 25 |
3852218 |
BRACKET, Oil cooler |
| 26 |
3853809 |
HOSE, Pump to valve, pressure |
| 27 |
3853810 |
HOSE, Valve to oil cooler, return |
| 28 |
3853399 |
SCREW, Brace to alternator |
| 29 |
3853786 |
CLAMP INSTRUMENT CABLE |
| 30 |
3853406 |
SCREW, Brace to pump |
| 31 |
3855484 |
Kit This part replaces 3855438. |
| 32 |
3853557 |
SCREW, Brace to alterntr bracket |
| 33 |
3851921 |
OIL COOLER |
| 35 |
3853315 |
FITTING, Steering hose plug |
| 36 |
3850491 |
Pump Ay This part replaces 3850492. |
