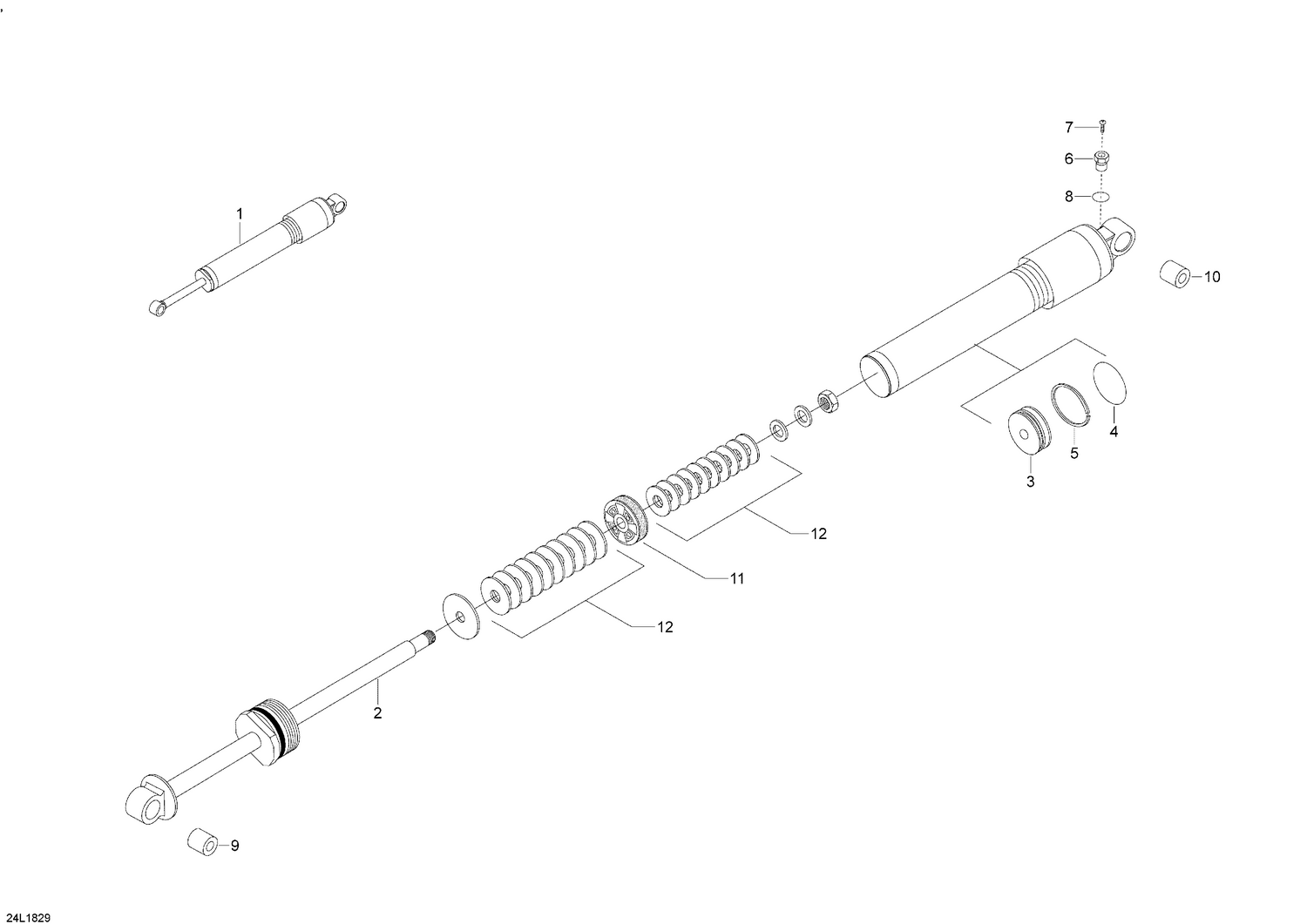

07- Front Shocks

07- Front Shocks

Parts (75)

RefPart NumberDescription
1 505073555 Front Shock
2 Not Available As Spare Part - Rod Ass'y
3 Not Available As Spare Part - Floating Piston
4 414888312 O-Ring
5 503189308 Piston Ring
6 505070398 Air Valve
7 505070399 Screw
8 505070400 O-Ring
9 230055 Rubber Bushing
10 619300028 Rubber Bushing
11 415128848 Piston (2 X 0,3-1) (C36)
11 619300071 Piston 36 mm, 3 x 0,3 Slits
11 619300108 Piston 36 mm, 0 x 0,3 Slits
11 619300109 Piston 36 mm, 4 x 0,3 Slits
11 619300110 Piston 36 mm, 6 x 0,3 Slits
11 619300111 Piston 36 mm, 5 x 0,3 Slits
11 619300161 Piston 36 mm, 2 x 0,3 slits
12 230016 Shim 36 mm, 18 x 0,254
12 230017 Shim 36 mm, 20 x 0,254
12 230018 Shim 36 mm, 22 x 0,114
12 230019 Shim 36 mm, 22 x 0,254
12 230021 Shim 36 mm, 24 x 0,114
12 230022 Shim 36 mm, 24 x 0,152
12 230023 Shim 36 mm, 24 x 0,203
12 230024 Shim 36 mm, 26 x 0,114
12 230025 Shim 36 mm, 28 x 0,114
12 230026 Shim 36 mm, 28 x 0,254
12 619300058 Shim 36 mm, 17 x 0,254
12 619300068 Shim 36 mm, 18 x 0,114
12 619300075 Shim 36 mm, 12 x 0,152
12 619300076 Shim 36 mm, 13 x 0,114
12 619300077 Shim 36 mm, 13 x 0,152
12 619300078 Shim 36 mm, 13 x 0,203
12 619300079 Shim 36 mm, 13 x 0,254
12 619300080 Shim 36 mm, 14 x 0,114
12 619300081 Shim 36 mm, 14 x 0,152
12 619300082 Shim 36 mm, 14 x 0,203
12 619300083 Shim 36 mm. 14 X 0,254
12 619300084 Shim 36 mm, 16 x 0,114
12 619300085 Shim 36 mm, 17 x 0,114
12 619300086 Shim 36 mm, 17 x 0,152
12 619300087 Shim 36 mm, 17 x 0,203
12 619300088 Shim 36 mm, 19 x 0,114
12 619300089 Shim 36 mm, 19 x 0,152
12 619300090 Shim 36 mm, 19 x 0,203
12 619300091 Shim 36 mm, 19 x 0,254
12 619300092 Shim 36 mm, 21 x 0,152
12 619300093 Shim 36 mm, 21 x 0,203
12 619300094 Shim 36 mm, 21 x 0,254
12 619300095 Shim 36 mm, 24 x 0,254
12 619300096 Shim 36 mm, 28 x 0,152
12 619300098 Shim 36 mm, 22 x 0,203
12 619300099 Shim 36 mm, 26 x 0,254
12 619300102 Shim 36 mm, 28 x 0,203
12 619300114 Shim 36 mm, 16 x 0,152
12 619300115 Shim 36 mm, 15 x 0,152
12 619300116 Shim 36 mm, 16 x 0,254
12 619300117 Shim 36 mm, 12 x 0,203
12 619300118 Shim 36 mm, 15 x 0,254
12 619300119 Shim 36 mm, 16 x 0,203
12 619300120 Shim 36 mm, 12 x 0,254
12 619300121 Shim 36 mm, 15 x 0,114
12 619300122 Shim 36 mm, 15 x 0,203
12 619300123 Shim 36 mm, 18 x 0,152
12 619300124 Shim 36 mm, 18 x 0,203
12 619300125 Shim 36 mm, 20 x 0,114
12 619300126 Shim 36 mm, 20 x 0,152
12 619300127 Shim 36 mm, 20 x 0,203
12 619300128 Shim 36 mm, 21 x 0,114
12 619300129 Shim 36 mm, 22 x 0,152
12 619300130 Shim 36 mm, 26 x 0,152
12 619300131 Shim 36 mm, 26 x 0,203
12 619300132 Shim 36 mm, 30 x 0,203
12 619300162 Shim 36 mm, 12 x 0,114
12 619300167 Shim 36 mm, 30 x 0,152
