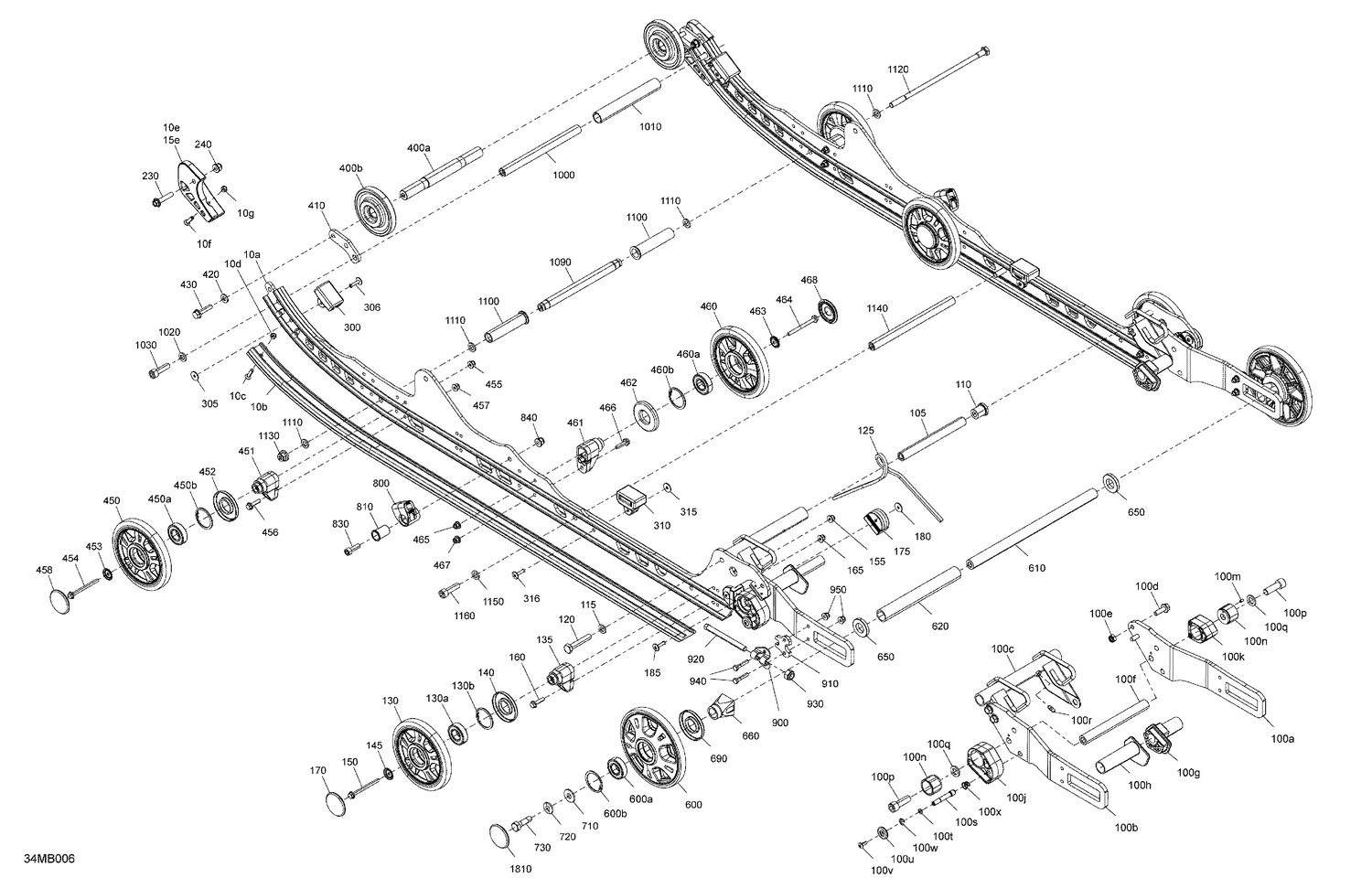

| Ref | Part Number | Description |
|---|
| 10a |
503195575 |
Rail Suspension 154 |
| 10b |
503192618 |
Black Slider, 154" |
| 10c |
208562531 |
Phillips Screw M6 X 25 |
| 10d |
232561434 |
Elastic Stop Nut M6 |
| 10e |
503192609 |
LH Protector |
| 10f |
208562531 |
Phillips Screw M6 X 25 |
| 10g |
232561434 |
Elastic Stop Nut M6 |
| 15e |
503192610 |
RH Protector |
| 100a |
503195759 |
Black, RH Pivot Support Long |
| 100b |
503195760 |
Black, LH Pivot Support Long |
| 100c |
503192647 |
Runner Pivot |
| 100d |
207682544 |
Hex. Flange Screw M8 X 25 |
| 100e |
232581414 |
Hex. Elastic Stop Nut M8 |
| 100f |
503191608 |
Cam Axle |
| 100g |
503191190 |
RH Spring Cam |
| 100h |
503191668 |
LH Spring Cam |
| 100j |
503192426 |
LH Block |
| 100k |
503192427 |
RH Block |
| 100m |
250400005 |
Dowel Pin 4 X 8 Mm - Call Your Local BRP Dealership |
| 100n |
503189488 |
Block Guide |
| 100p |
205523544 |
Socket Head Screw M12 X 35, Scotch Grip |
| 100q |
503189148 |
Washer |
| 100r |
408200700 |
Grease Fitting |
| 100s |
503192437 |
Rode |
| 100t |
234051410 |
Flat Washer M5 |
| 100u |
503192438 |
Handle |
| 100v |
250000742 |
Torx Screw M5 X 14 |
| 100w |
293370068 |
Circlip |
| 100x |
503192436 |
Compression Spring |
| 105 |
503191279 |
Lower Shaft |
| 110 |
503189324 |
Bushing |
| 115 |
503192496 |
Washer |
| 120 |
250000605 |
Hex. Screw S.Grip M10 X 55 |
| 125 |
503194624 |
Spring |
| 130a |
503190396 |
Ball Bearing |
| 130b |
415129371 |
Retaining Ring |
| 135 |
503193894 |
Casted Support |
| 140 |
503190434 |
Labyrinth Seal |
| 145 |
503191820 |
Wheel Cup M6 |
| 150 |
250000944 |
Hex. Flange Screw M6 X 70 |
| 155 |
233261466 |
Hex. Flange Elastic Nut M6 |
| 160 |
250000945 |
Hex. Flange Screw M6 X 25 |
| 165 |
233261466 |
Hex. Flange Elastic Nut M6 |
| 170 |
503192771 |
Black, Wheel Cap |
| 175 |
503191291 |
Rubber Stopper |
| 180 |
503191273 |
Washer |
| 185 |
293150224 |
Pop Rivet 3/16 |
| 230 |
207684044 |
Hex. Flange Screw M8 X 40 |
| 240 |
233281466 |
Elastic Flange Nut M8 |
| 300 |
503190576 |
Rubber Stopper |
| 305 |
503191273 |
Washer |
| 306 |
293150224 |
Pop Rivet 3/16 |
| 310 |
503193504 |
Rubber Stopper |
| 315 |
503191273 |
Washer |
| 316 |
293150224 |
Pop Rivet 3/16 |
| 400a |
503192644 |
Front Wheel Axle |
| 400b |
503192611 |
Black, Wheel Ass'y, 100 mm |
| 410 |
503192612 |
Plate |
| 420 |
503192494 |
Washer |
| 430 |
250000986 |
Hex. Flange Screw M8 X 35 |
| 450a |
503190396 |
Ball Bearing |
| 450b |
415129371 |
Retaining Ring |
| 451 |
503193894 |
Casted Support |
| 452 |
503190434 |
Labyrinth Seal |
| 453 |
503191820 |
Wheel Cup M6 |
| 454 |
250000944 |
Hex. Flange Screw M6 X 70 |
| 455 |
233261466 |
Hex. Flange Elastic Nut M6 |
| 456 |
250000945 |
Hex. Flange Screw M6 X 25 |
| 457 |
233261466 |
Hex. Flange Elastic Nut M6 |
| 458 |
503192771 |
Black, Wheel Cap |
| 460a |
503190396 |
Ball Bearing |
| 460b |
415129371 |
Retaining Ring |
| 461 |
503193894 |
Casted Support |
| 462 |
503190434 |
Labyrinth Seal |
| 463 |
503191820 |
Wheel Cup M6 |
| 464 |
250000944 |
Hex. Flange Screw M6 X 70 |
| 465 |
233261466 |
Hex. Flange Elastic Nut M6 |
| 466 |
250000945 |
Hex. Flange Screw M6 X 25 |
| 467 |
233261466 |
Hex. Flange Elastic Nut M6 |
| 468 |
503192771 |
Black, Wheel Cap |
| 600a |
503190396 |
Ball Bearing |
| 600b |
415129371 |
Retaining Ring |
| 610 |
503190429 |
Rear Axle |
| 620 |
503191736 |
Rear Spacer, Long |
| 650 |
503190432 |
Washer |
| 660 |
503190428 |
Rear Wheel Spacer |
| 690 |
503190434 |
Labyrinth Seal |
| 710 |
503191910 |
Washer |
| 720 |
234201474 |
Conical Spring Washer 10 mm |
| 730 |
250000817 |
Hex Screw With Nilon Patch, M10 X 35 |
| 800 |
861805547 |
Spring Support Kit |
| 810 |
503196055 |
Bushing |
| 830 |
205082554 |
Socket Screw M8 X 25 |
| 840 |
233281466 |
Elastic Flange Nut M8 |
| 900 |
503192583 |
Tensioner |
| 910 |
503193250 |
Spacer |
| 920 |
230100054 |
Hex Screw M10 x 100 |
| 930 |
233601466 |
Elastic Locking Nut M10 |
| 940 |
207063054 |
Hex. Cap Screw M6 X 30 |
| 950 |
233261466 |
Hex. Flange Elastic Nut M6 |
| 1000 |
503192613 |
Axle Strap |
| 1010 |
503196943 |
Spacer This part replaces 503192678. |
| 1020 |
503192496 |
Washer |
| 1030 |
205503554 |
Socket Head Screw M10 X 35 |
| 1090 |
503193435 |
Pivot Axle |
| 1100 |
503195825 |
Spacer |
| 1110 |
503192496 |
Washer |
| 1120 |
503193227 |
Bolt M10 X 251MM |
| 1130 |
233201466 |
Flange Elastic Nut M10 |
| 1140 |
503191260 |
Axle Strap |
| 1150 |
503192496 |
Washer |
| 1160 |
205503554 |
Socket Head Screw M10 X 35 |
