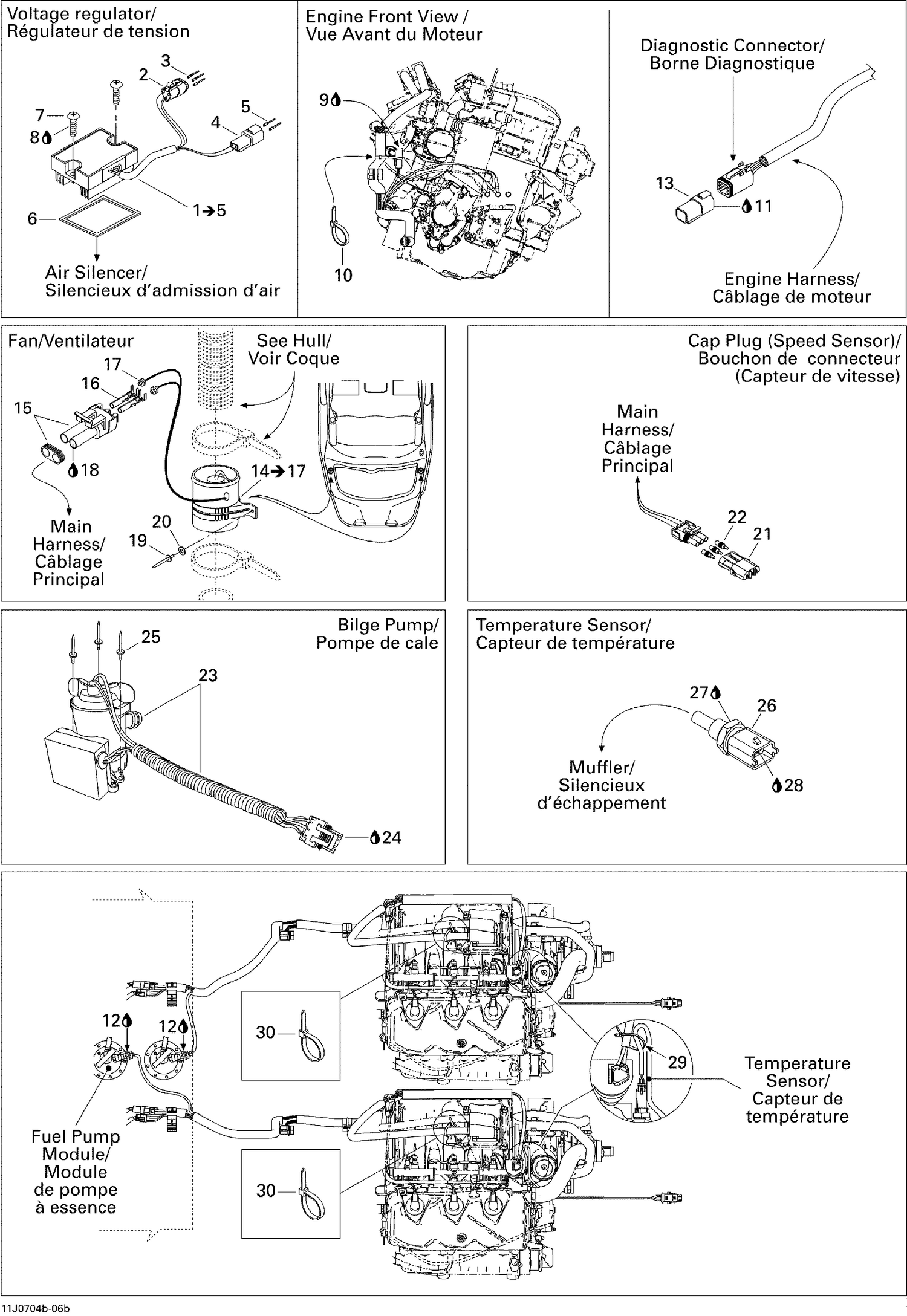

| Ref | Part Number | Description |
|---|
| 2 |
278002375 |
CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership This part replaces 409207400. |
| 3 |
278000632 |
Female Terminal |
| 4 |
409206900 |
Male Housing, 2 Circuits |
| 5 |
515175567 |
Female Terminal |
| 6 |
293250123 |
SEAL - Call your local BRP dealership |
| 7 |
208663060 |
PHILLIPS SCREW M6 X 30 - Call your local BRP dealership |
| 8 |
293800005 |
Loctite 271, 10 ml |
| 9 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 10 |
414115200 |
Tie-Rap 180 mm |
| 11 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 12 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 13 |
278002704 |
Diagnostic Connector This part replaces 278002148. |
| 15 |
278000220 |
Male Connector, 2 Circuits |
| 16 |
278000223 |
Female Terminal |
| 17 |
278000218 |
Wire Seal |
| 18 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 19 |
293150008 |
Pop Rivet 3/16" This part replaces 293150011. |
| 20 |
234052600 |
Flat Washer 5 mm, Stainless |
| 21 |
278000281 |
Female Terminal Housing, 3 Circuits |
| 22 |
278000216 |
Wire Seal |
| 23 |
204471176 |
Bilge Pump With Screen |
| 24 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 25 |
293150029 |
RIVET_POP 5/32 - Call your local BRP dealership |
| 26 |
278002895 |
Temperature Sensor This part replaces 278001016. |
| 28 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 29 |
293750002 |
Tie Wrap 142 mm |
