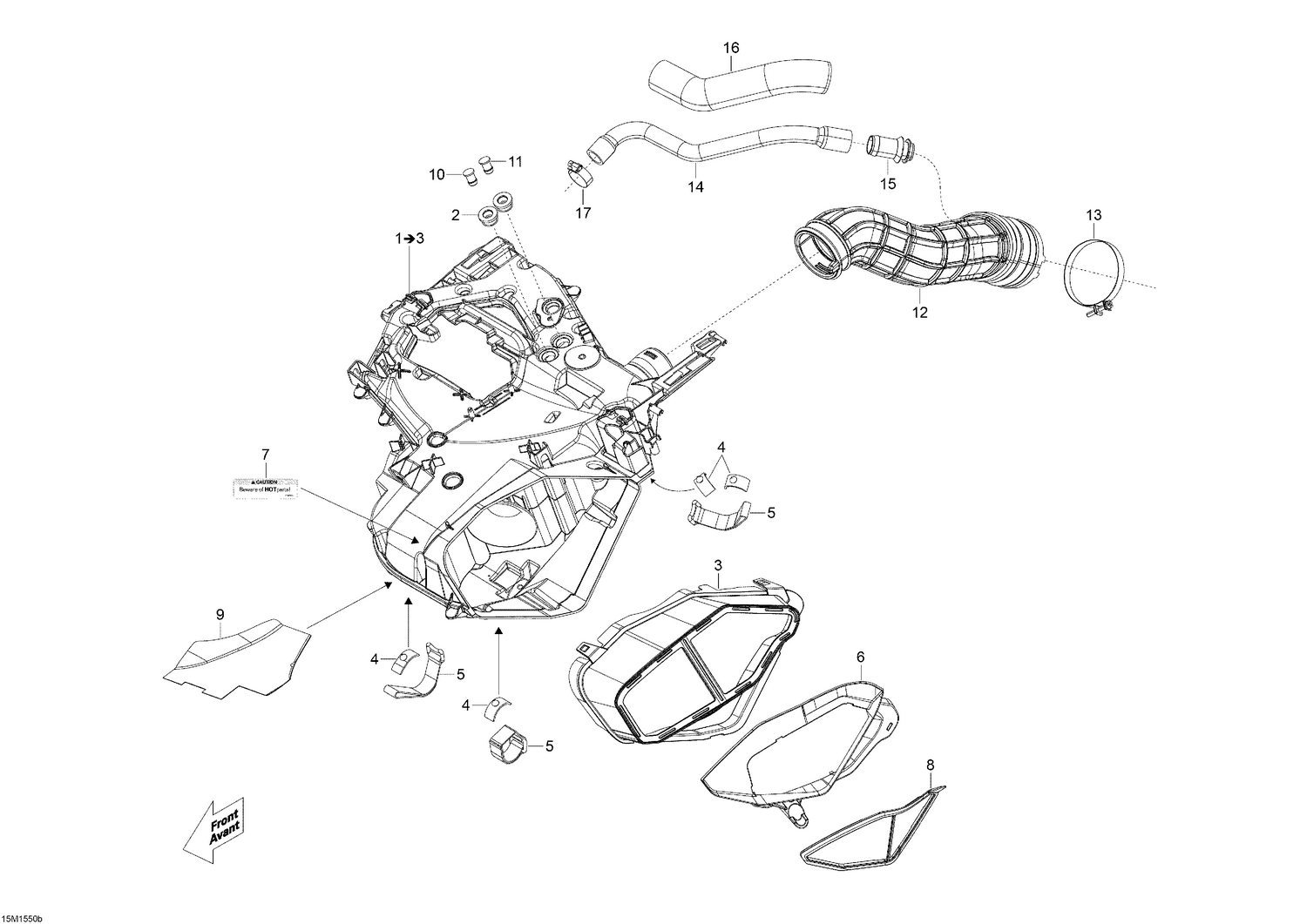

02- Air Intake System (iTC) _15M1550b
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 508000574 | Grommet |
| 3 | 508000595 | Air Intake Filter |
| 4 | 508000537 | Stopper |
| 5 | 508000820 | Velcro Strip This part replaces 508000532. |
| 6 | 508001021 | Adapter This part replaces 508000687. |
| 7 | 516004651 | Caution Label, Air Intake |
| 8 | 508000609 | Air Filter |
| 9 | 508000622 | Reflective Sheet |
| 10 | 572092900 | Cap |
| 11 | 572092900 | Cap |
| 12 | 508000773 | Air Intake Hose |
| 13 | 293650229 | Gemi Clamp |
| 14 | 508000774 | Formed Vent Hose |
| 15 | 273000234 | Breather Valve |
| 16 | 508000648 | Tube Isolator |
