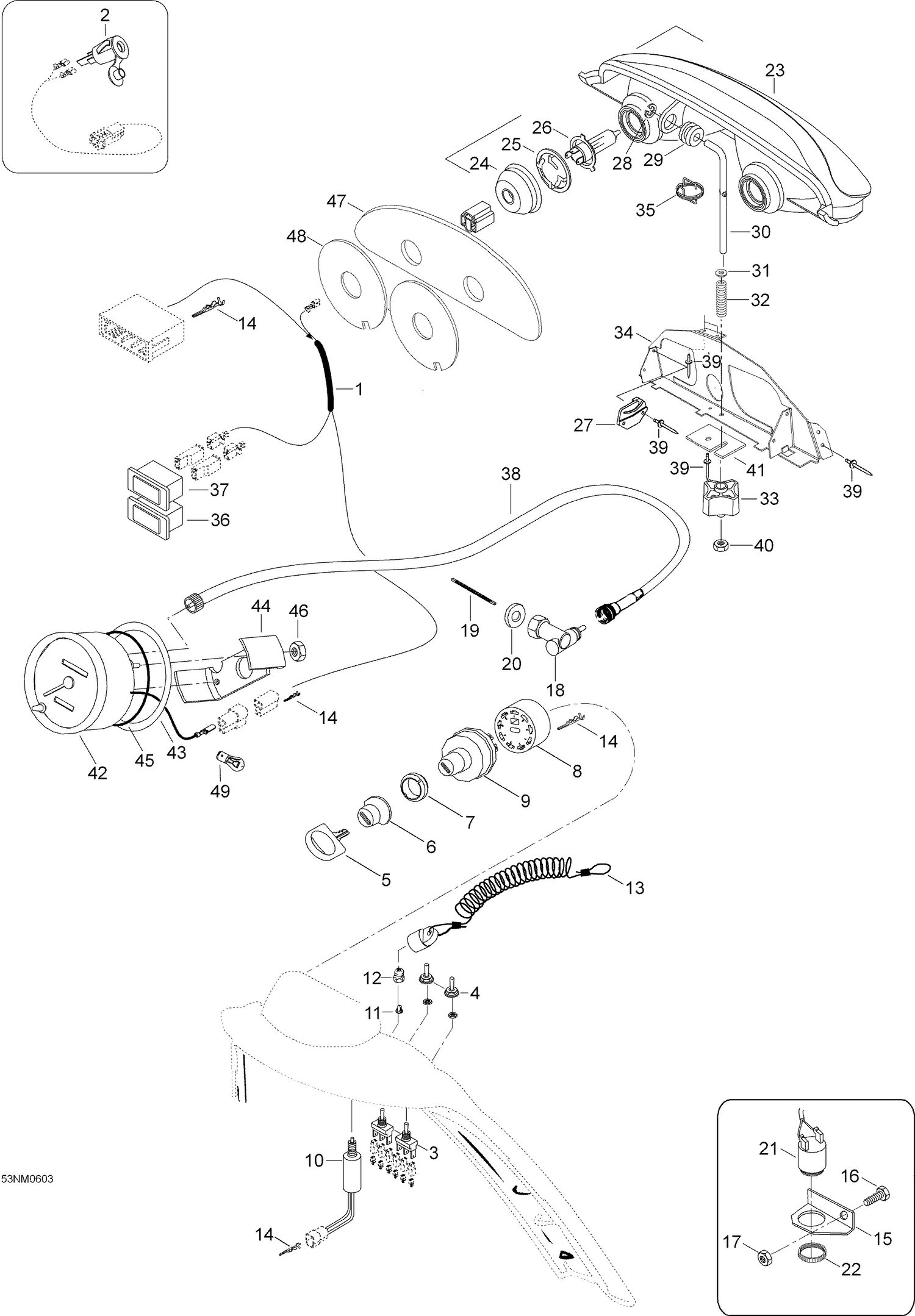

| Ref | Part Number | Description |
|---|
| 1 |
5348360 |
Wiring harness, headlamp |
| 2 |
42026 |
Flush Mounted Socket |
| 3 |
410107300 |
Switch |
| 4 |
515175281 |
Cover |
| 5 |
415129350 |
BLANK KEY - Call your local BRP dealership This part replaces 414991700. |
| 6 |
570013700 |
Boot |
| 7 |
410112100 |
FACE NUT - Call your local BRP dealership |
| 8 |
572150700 |
FEMALE TERMINAL HOUSING, 9 CIRCUITS - Call your local BRP dealership |
| 9 |
42019 |
Ignition switch |
| 10 |
515175653 |
Brake Switch This part replaces 515175571. |
| 11 |
570151100 |
Plunger Cap |
| 12 |
515145900 |
Switch Nut |
| 13 |
515178283 |
Cap Ass'y This part replaces 515151500. |
| 14 |
605642628 |
CONNECTOR - Call your local BRP dealership This part replaces 42603. |
| 15 |
549459 |
ALARM RETAINER - Call your local BRP dealership |
| 16 |
40029 |
Hex. screw M6 x 16 |
| 17 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 18 |
35021 |
Drive angle |
| 19 |
45075 |
Insert cable |
| 20 |
5444186 |
Seal - Call your local BRP dealership |
| 21 |
414792102 |
Back up alarm |
| 22 |
414805101 |
PLASTIC NUT - Call your local BRP dealership |
| 23 |
Not |
Available As Spare Part - Headlamp |
| 24 |
410607100 |
PROTECTOR CAP - Call your local BRP dealership |
| 25 |
410608300 |
BULB HOLDER - Call your local BRP dealership |
| 26 |
515176274 |
Halogen Bulb, 60/55 W, 12 V This part replaces 410504401. |
| 27 |
517289300 |
R.H. headlamp support |
| 27 |
517289400 |
L.H. headlamp support |
| 28 |
732610072 |
Push Nut |
| 29 |
415100800 |
Grommet - Call your local BRP dealership |
| 30 |
5448100 |
Adjuster rod |
| 31 |
20003 |
Washer A6,4 |
| 32 |
415100600 |
SPRING - Call your local BRP dealership |
| 33 |
515175548 |
Handle - Call your local BRP dealership |
| 34 |
5248092 |
HEADLIGHT PLATE - Call your local BRP dealership |
| 35 |
5445737 |
SUPPORT SPRING - Call your local BRP dealership |
| 36 |
410109600 |
Pilot lamp (Headlamp) |
| 37 |
410109500 |
Pilot lamp (Oil level) |
| 38 |
5344162 |
Speedometer wire |
| 39 |
36005 |
Rivet |
| 40 |
33010 |
Lock Nut M6 (1=10Pcs) |
| 41 |
5448320 |
Locking plate |
| 42 |
605152889 |
Speedometer, white |
| 43 |
517258500 |
Washer |
| 44 |
414806500 |
Holder |
| 45 |
414807100 |
O-ring |
| 46 |
233251434 |
Flanged Elastic Nut M5 This part replaces 33062. |
| 47 |
5247817 |
FOAM - Call your local BRP dealership |
| 48 |
5447818 |
PLASTIC PLATE - Call your local BRP dealership |
