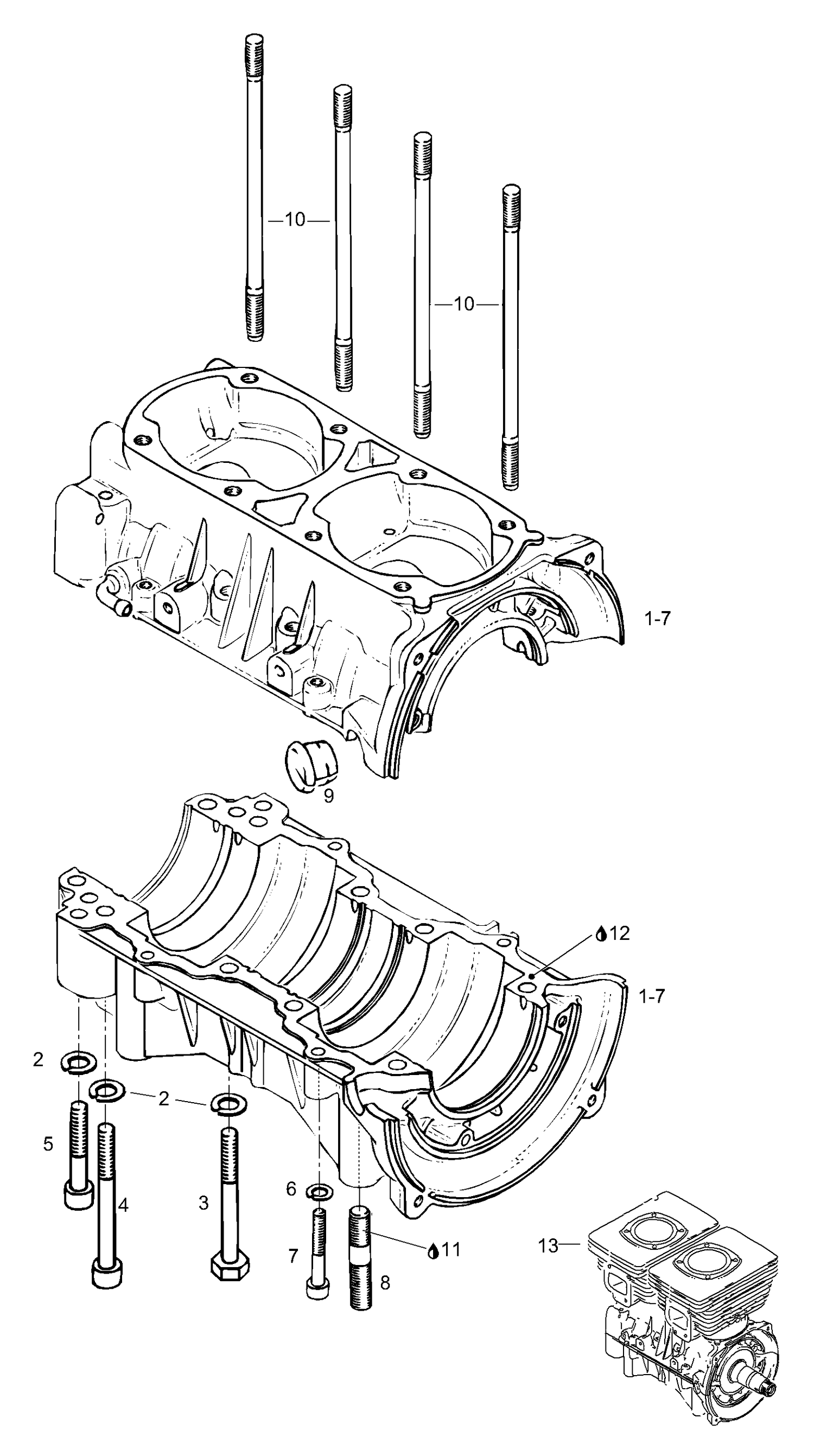

05- Crankcase
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 20014 | Spring washer |
| 3 | 420841201 | Screw M8x70 |
| 4 | 420841831 | ALLEN SCREW M8 X 75 - Call your local BRP dealership |
| 5 | 420841566 | ALLEN SCREW M8 X 50 - Call your local BRP dealership |
| 6 | 20052 | Spring washer |
| 7 | 420241816 | SOCKET HEAD SCREW M6 X 40 - Call your local BRP dealership |
| 8 | 420940190 | Stud |
| 9 | 420860962 | Cable grommet |
| 10 | 420841149 | STUD M8 X 167 - Call your local BRP dealership |
| 11 | 293800060 | Loctite 243, 10 ml This part replaces 420899785. |
| 12 | 420899784 | Loct 574/orange/50 |
