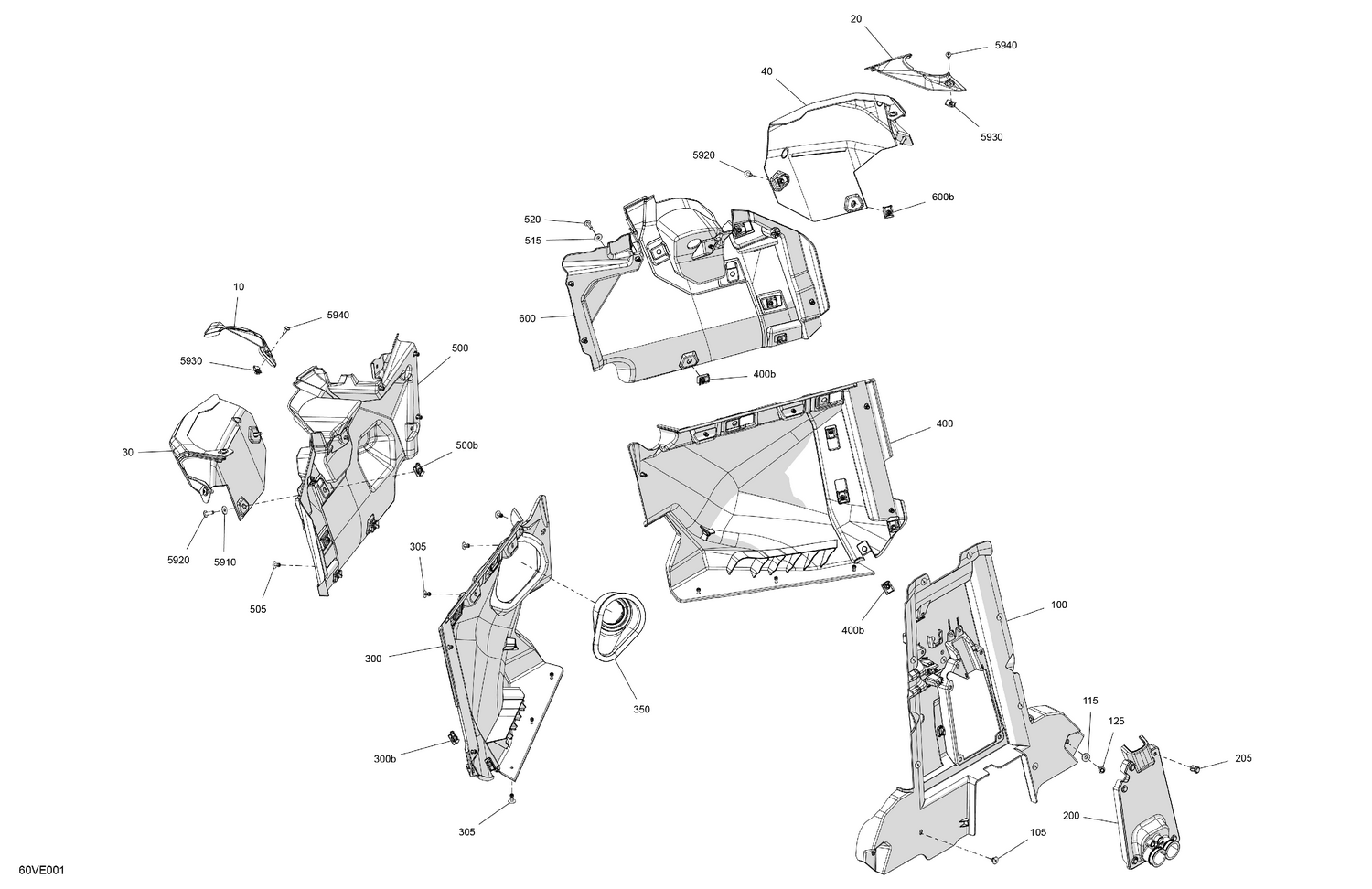

07- Cab Interior - Firewall
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 707901084 | LH Front Cage Trim |
| 20 | 707901085 | RH Front Cage Trim |
| 30 | 707901062 | LH Front Cover |
| 40 | 707901063 | RH Front Cover |
| 100 | 707900906 | Central Front Baffle |
| 105 | 293150292 | Black, Pop Rivet 3/16 X ,550 |
| 115 | 234062670 | Stainless Steel Flat Washer |
| 125 | 250000959 | Screw PT Type K-50 X 16 |
| 200 | 707900907 | Grommet |
| 205 | 293150230 | Tuflok Plastic Rivet |
| 300b | 250100208 | Panel Nut M6 X 1.0 |
| 305 | 293150306 | Black, Ornit Rivet 3/16 X ,800 |
| 350 | 707900942 | Steering Column Trim |
| 400b | 250100208 | Panel Nut M6 X 1.0 |
| 500b | 250100208 | Panel Nut M6 X 1.0 |
| 505 | 293150292 | Black, Pop Rivet 3/16 X ,550 |
| 515 | 234062670 | Stainless Steel Flat Washer |
| 520 | 250000722 | Torx Screw M6 X 20 |
| 600b | 250100208 | Panel Nut M6 X 1.0 |
| 5910 | 234062670 | Stainless Steel Flat Washer |
| 5920 | 250000722 | Torx Screw M6 X 20 |
| 5930 | 250000958 | Panel Nut M5 X 0.8 |
