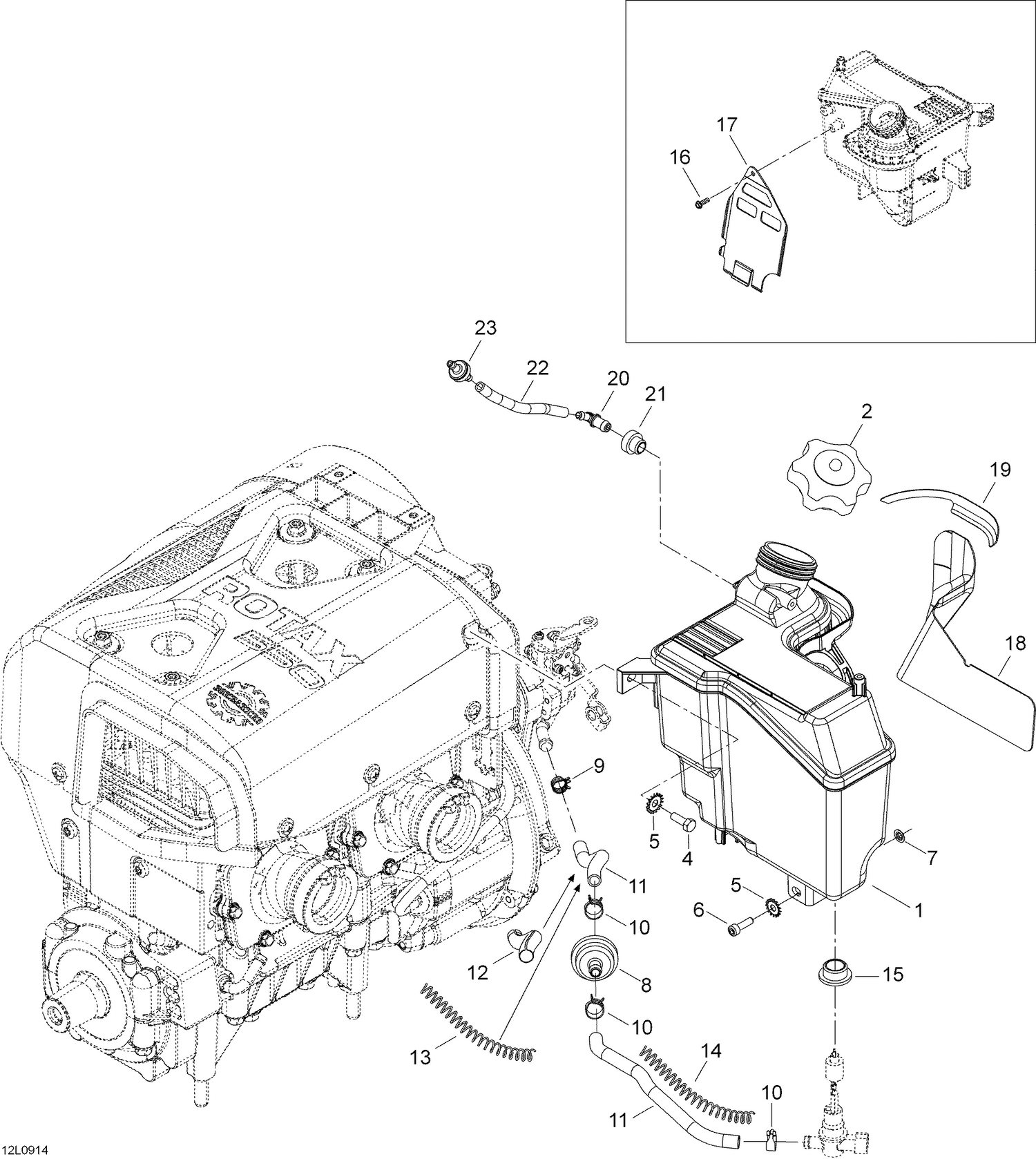

| Ref | Part Number | Description |
|---|
| 1 |
519000073 |
INJECTION OIL TANK - Call your local BRP dealership |
| 2 |
519000033 |
CAP - Call your local BRP dealership |
| 4 |
40870 |
HEX. TAPING SCREW - Call your local BRP dealership |
| 5 |
20017 |
Serrated lock washer 6mm |
| 6 |
40052 |
Allen sc. M6 x 20 DIN912m8.8Zne(1=10pcs) - Call your local BRP dealership |
| 7 |
732610072 |
Push Nut |
| 8 |
414536500 |
Oil filter |
| 9 |
414420700 |
Universal Spring Clamp |
| 10 |
414415200 |
Clamp |
| 11 |
39046 |
Hose |
| 12 |
409901800 |
Tubing |
| 13 |
519000064 |
SPRING - Call your local BRP dealership |
| 14 |
519000125 |
SPRING - Call your local BRP dealership |
| 15 |
570023000 |
Insulated ring |
| 16 |
241151640 |
Screw K50 x 16 |
| 17 |
509000257 |
DEFLECTOR - Call your local BRP dealership |
| 18 |
519000054 |
REFLECTIVE SHEET - Call your local BRP dealership |
| 19 |
519000072 |
REFLECTIVE SHEET - Call your local BRP dealership |
| 20 |
414580700 |
Male Connector |
| 21 |
513032908 |
Grommet |
| 22 |
415080200 |
HOSE, POLYURETHANE - Call your local BRP dealership |
