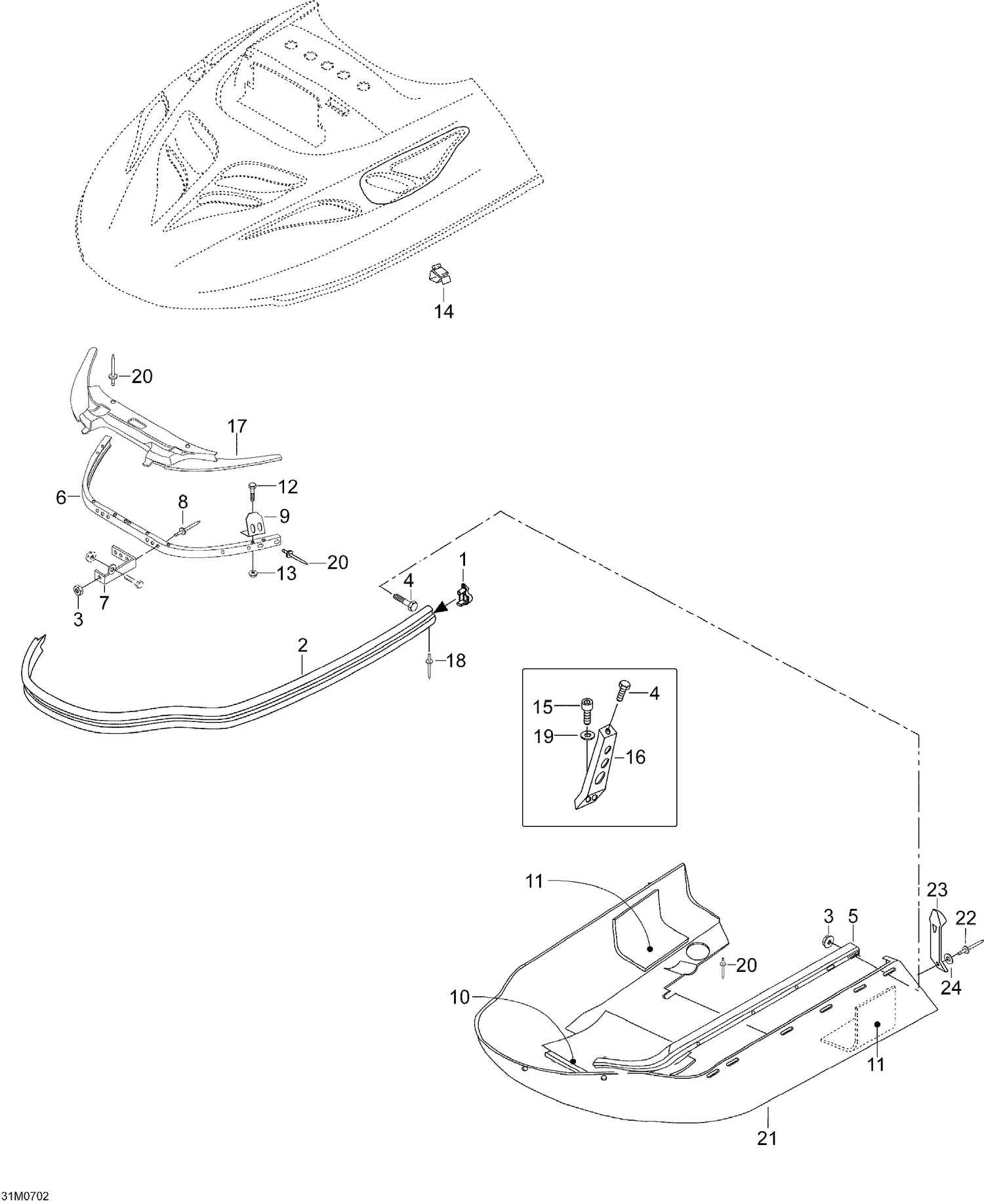

09- Bottom Pan WT 600
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 1 | M549096L | LH Cap |
| 1 | M549096R | RH Cap |
| 2 | M5242798 | Front Bumper |
| 3 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 This part replaces M33200. |
| 4 | M40078 | Vis *Screw |
| 5 | M5242803 | LH Hood Guide |
| 5 | M5242804 | RH Hood Guide |
| 7 | M5342234 | Hinge |
| 7 | M5342345 | Hinge |
| 8 | 36108 | Rivet This part replaces M36083. |
| 9 | M5443217 | Hood Guide |
| 10 | M5345088 | Acoustic Foam |
| 11 | M5345089 | Foam Acoustic |
| 12 | M40247 | Screw M5 X 16 |
| 13 | M33062 | NUT M5 - Call your local BRP dealership |
| 14 | 414227300 | Clip |
| 15 | M40332 | SCREW - Call your local BRP dealership |
| 16 | M5342509 | SUPP.-BUMPER - Call your local BRP dealership |
| 17 | 605252352 | COVER - Call your local BRP dealership |
| 18 | M36097 | RIVET - Call your local BRP dealership |
| 19 | 234161471 | Lock Washer M6, Black |
| 20 | M36036 | Black, Rivet |
| 21 | 605152310 | BOTTOM PAN - Call your local BRP dealership |
| 22 | 36009 | Rivet This part replaces M36009. |
| 23 | 5342952 | Hood Latch This part replaces M5342952. |
