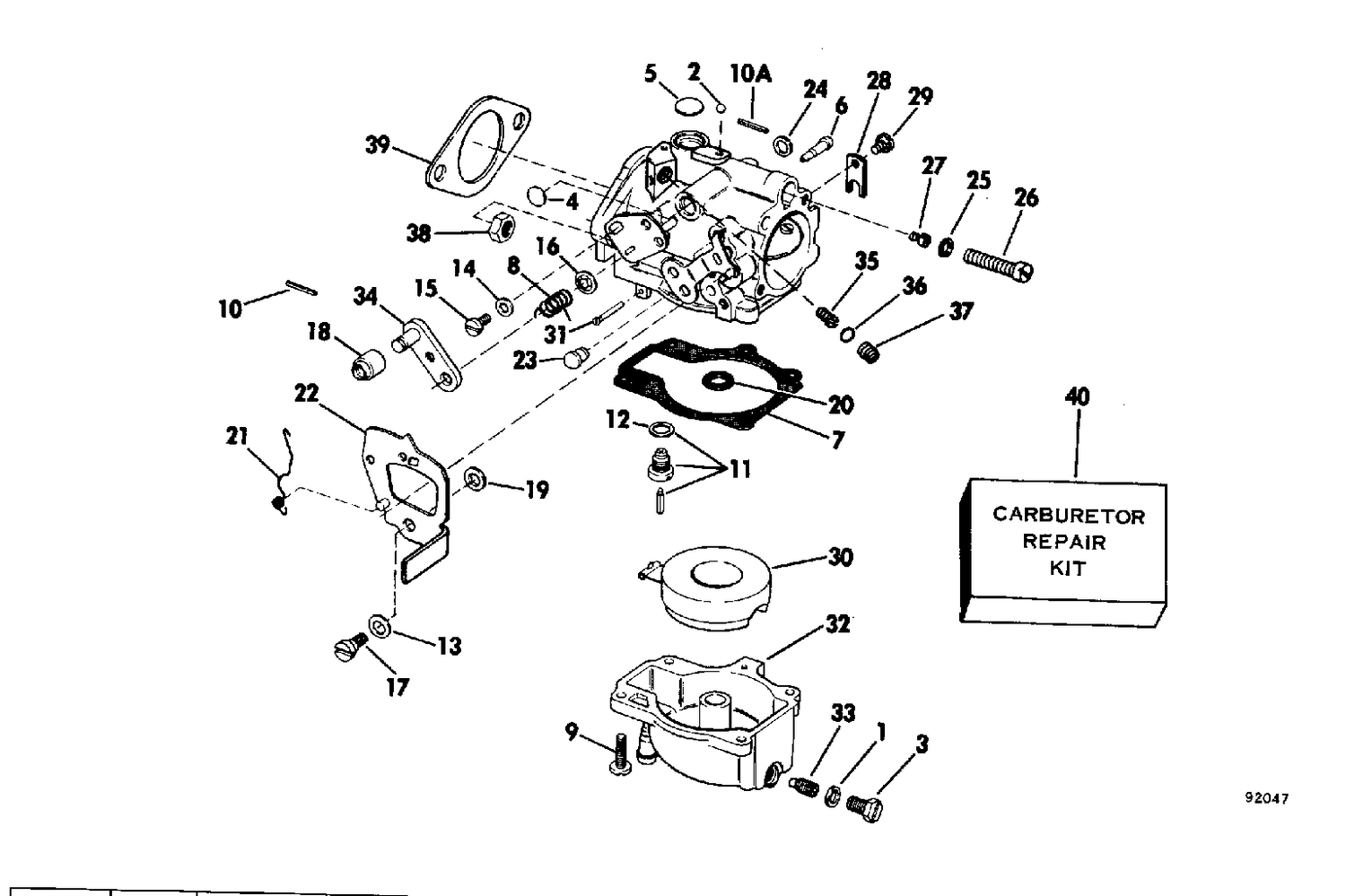

| Ref | Part Number | Description |
|---|
| 3 |
0307832 |
PLUG, Screw |
| 10 |
0307901 |
ROLL PIN |
| 22 |
0387908 |
LEVER AND PIN ASSY |
| 27 |
0318832 |
O-RING, No. 35 |
| 28 |
0314906 |
CLIP |
| 32 |
0387590 |
FLOAT CHAMBER |
| 35 |
0325869 |
ORIFICE NO 57, 20 inch transom |
| 35 |
0327689 |
ORIFICE, No 67 This part replaces 0325836. |
| 37 |
0317501 |
SCREW PLUG, Orifice |
| 38 |
0316355 |
BUT, Carburetor mounting |
| 39 |
0325092 |
GASKET |
| 0387906 |
0387906 |
CARBURETOR ASSEMBLY, Middle |
| 0387907 |
0387907 |
CARBURETOR ASSEMBLY, Upper & lower |
| 0389239 |
0389239 |
CARBURETOR ASSY, Middle |
| 0389240 |
0392574 |
CARBURETOR ASSEMBLY, Upper & lower This part replaces 0389240. |
| 0389241 |
0389241 |
CARBURETOR ASSEMBLY,Middle,20"transom |
| 0389242 |
0392576 |
CARBURETOR ASSEMBLY, Upper & lower This part replaces 0389242. |
