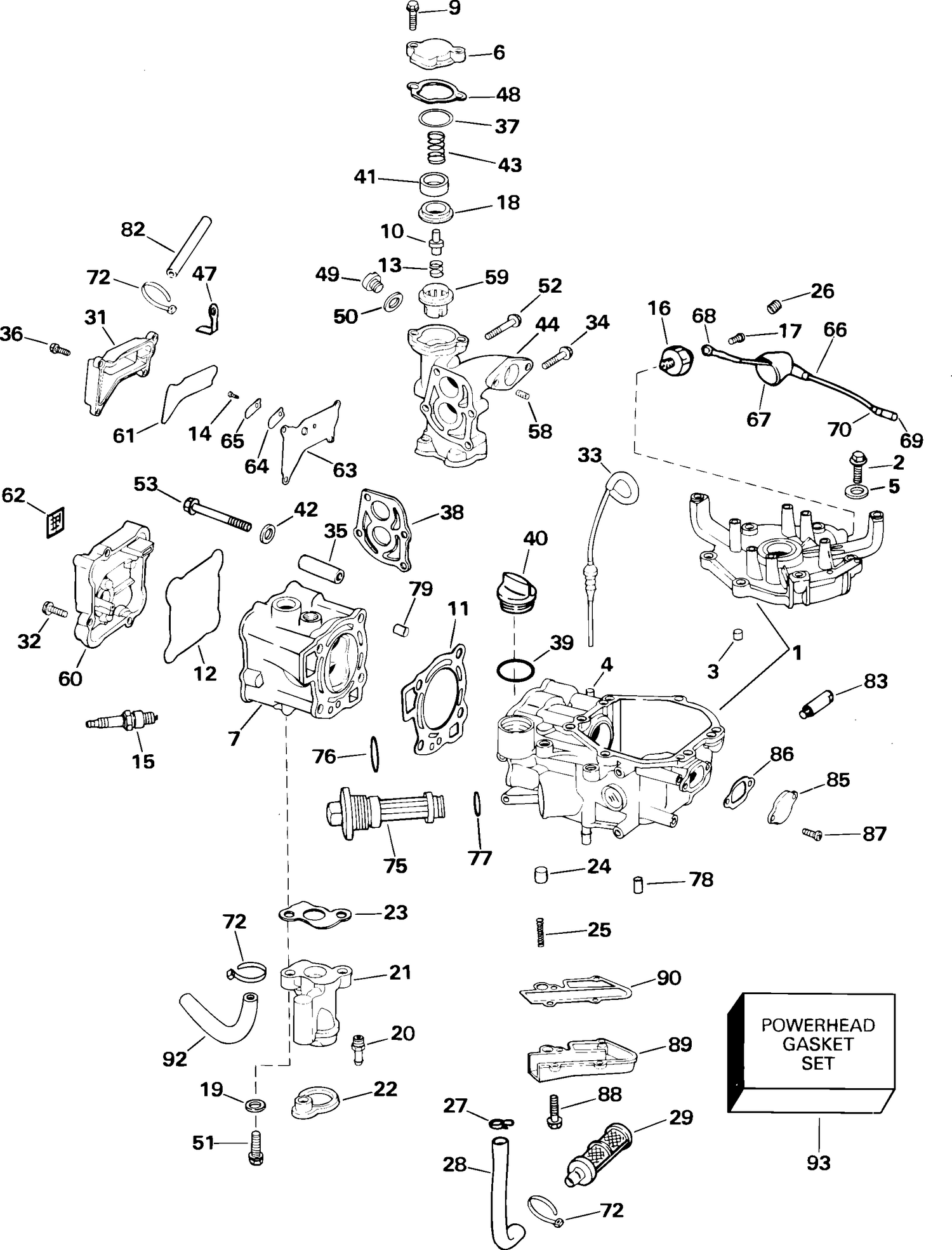

| Ref | Part Number | Description |
|---|
| 6 |
0440195 |
COVER, Thermostat |
| 7 |
0440159 |
CYLINDER HEAD & SEAT ASSY. |
| 9 |
0446099 |
CLAVETTE, poulie vers arbre à cames |
| 10 |
0436195 |
ENSEMBLE THERMOSTAT |
| 11 |
0441801 |
GASKET, Cylinder head |
| 12 |
0441021 |
GASKET, Plate |
| 14 |
0446009 |
SCREW, Reed stop |
| 15 |
0449537 |
SPARK PLUG, Champion, RP10HC |
| 16 |
0445037 |
MANOSTAT D'HUILE |
| 18 |
0437694 |
ENSEMBLE MEMBRANE & COUPELLE |
| 19 |
0446078 |
WASHER, Exhaust tube |
| 20 |
0441193 |
NIPPLE, Exhaust tube |
| 21 |
0441244 |
TUBE ASSY., Exhaust |
| 22 |
0446074 |
SEAL, Exhaust tube |
| 23 |
0441295 |
GASKET, Exhaust tube to cyl. head |
| 24 |
0446081 |
RELIEF VALVE |
| 25 |
0446080 |
SPRING, Relief valve |
| 26 |
0341193 |
PLUG, Cylinder head |
| 27 |
0446311 |
CLAMP, Oil hose to housing |
| 28 |
0446085 |
HOSE, Oil suction |
| 31 |
0441121 |
COVER ASSY., Breather |
| 32 |
0446099 |
CLAVETTE, poulie vers arbre à cames |
| 33 |
0440174 |
DIPSTICK, Oil |
| 34 |
0441161 |
SCREW, Intake to cylinder head |
| 35 |
0441073 |
DEFLECTOR, Water passage |
| 36 |
0446008 |
VIS, reniflard vers culasse |
| 38 |
0441294 |
GASKET, Intake manifold |
| 39 |
0446111 |
O-RING, Oil fill plug |
| 40 |
0446110 |
PLUG, Oil fill |
| 41 |
0441268 |
SPACER, Spring retainer |
| 42 |
0446121 |
WASHER, Cylinder head to block |
| 43 |
0446477 |
SPRING, Pressure relief |
| 44 |
0441063 |
INTAKE MANIFOLD |
| 47 |
0330151 |
CLAMP, Harness to oil tank boss |
| 48 |
0441066 |
GASKET, Thermostat cover |
| 51 |
0446314 |
SCREW, Exhaust tube to cyl. head |
| 52 |
0441162 |
SCREW, Intake to cylinder head |
| 53 |
0446119 |
SCREW, Cyl. head to cyl. block |
| 58 |
0446122 |
STUD, Intake manifold |
| 60 |
0441124 |
COVER, Cylinder head |
| 61 |
0441006 |
SEAL, Cover, breather |
| 62 |
0441200 |
MESH, Breather |
| 63 |
0441008 |
PLATE |
| 64 |
0441014 |
REED, Breather |
| 65 |
0441018 |
STOP, Reed |
| 66 |
0445044 |
COVER & LEAD ASSY. |
| 72 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 75 |
0449534 |
FILTER & O-RING ASSY. |
| 78 |
0446107 |
PIN, Dowel, bracket to crankcase |
| 83 |
0446283 |
EXTENSION |
| 85 |
0441042 |
PLATE |
| 86 |
0441084 |
GASKET, Plate |
| 88 |
0441163 |
SCREW, Relief valve cover |
| 89 |
0441057 |
COVER, Relief valve |
| 90 |
0441086 |
GASKET, Cover |
| 92 |
0441131 |
HOSE, Exhaust tube to sump |
