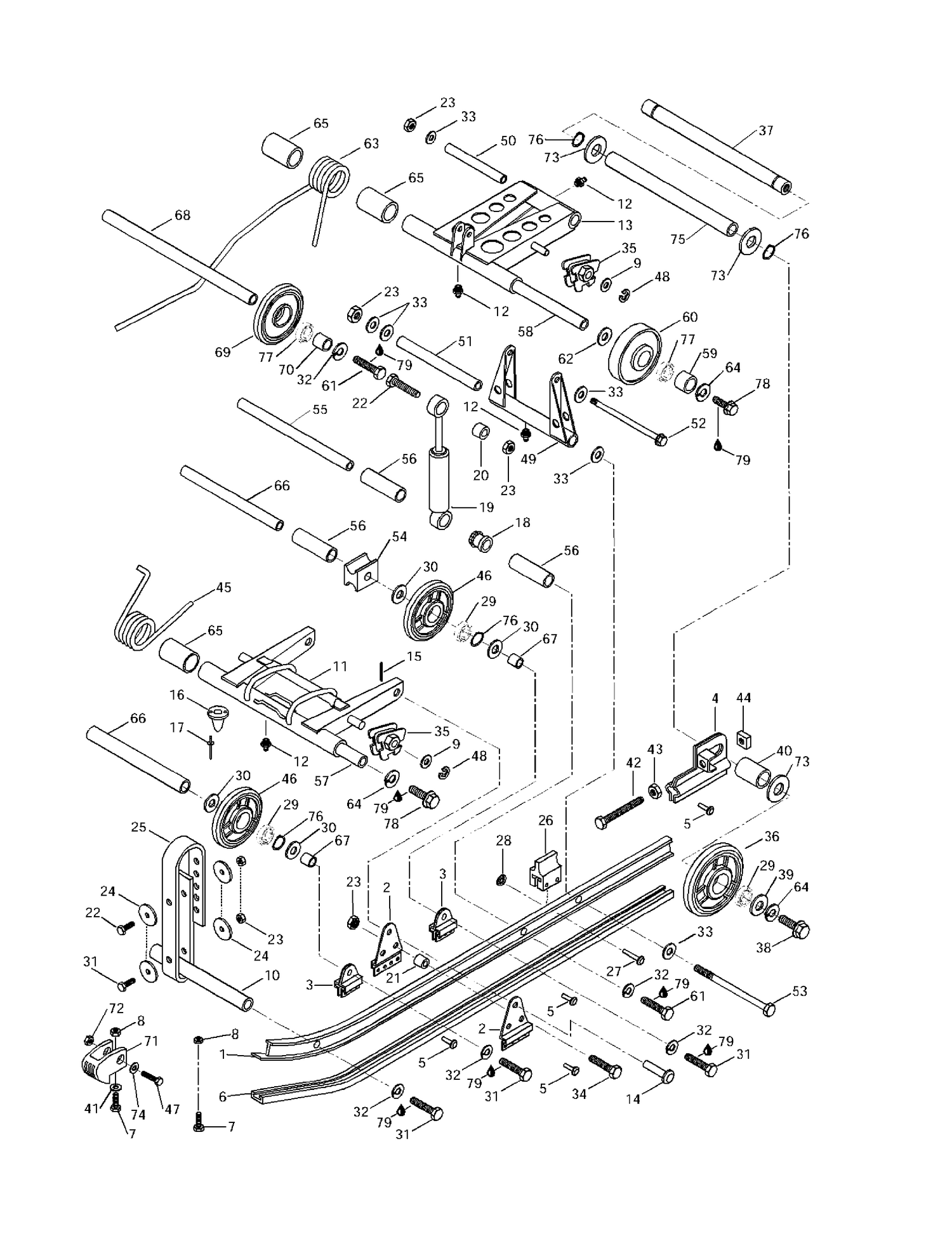

| Ref | Part Number | Description |
|---|
| 1 |
503161700 |
Runner |
| 2 |
503149800 |
FRONT ARM SUPPORT - Call your local BRP dealership |
| 3 |
503145000 |
Support |
| 4 |
503161400 |
RH ADJUSTMENT PLATE - Call your local BRP dealership |
| 5 |
390906200 |
FLAT HEAD STEEL RIVET - Call your local BRP dealership |
| 6 |
503189239 |
Runner This part replaces 560314400. |
| 7 |
207053044 |
Hex. Screw M5 X 30 This part replaces 222053065. |
| 8 |
233251434 |
Flange Elastic Nut M5 This part replaces 228751045. |
| 9 |
234001410 |
Flat Washer 10 mm This part replaces 224001211. |
| 10 |
503143400 |
Cross-Shaft |
| 11 |
503145300 |
Paint Front Arm |
| 12 |
408200700 |
Grease Fitting |
| 13 |
503143500 |
Paint Rear Arm |
| 14 |
414191500 |
Clevis Pin |
| 15 |
371800200 |
Cotter Pin |
| 16 |
570032900 |
Rubber Stopper |
| 17 |
390402000 |
Pop Rivet 3/16" |
| 18 |
572030700 |
BUSHING - Call your local BRP dealership |
| 19 |
414802100 |
Shock |
| 20 |
414802600 |
CUSHION - Call your local BRP dealership |
| 21 |
503038300 |
Spacer |
| 22 |
207083544 |
Hex. Screw M8 X 35 This part replaces 222083565. |
| 23 |
232581414 |
Hex. Elastic Stop Nut M8 This part replaces 228581045. |
| 24 |
517078700 |
WASHER - Call your local BRP dealership |
| 25 |
570025700 |
Stopper Strap |
| 26 |
570047900 |
FRONT RUBBER STOPPER - Call your local BRP dealership |
| 27 |
390004800 |
RIVET-STEEL SOLID - Call your local BRP dealership |
| 28 |
389804300 |
Push Nut |
| 29 |
293350115 |
Ball Bearing This part replaces 405404500. |
| 30 |
414919200 |
Cushion |
| 31 |
207183044 |
Hex. Screw M8 X 30 This part replaces 222083065. |
| 32 |
234181401 |
Lock Washer 8 mm This part replaces 224781140. |
| 33 |
234081410 |
Flat Washer 8 mm This part replaces 224081171. |
| 34 |
207084044 |
Hex. Screw M8 X 40 This part replaces 222084065. |
| 35 |
572030900 |
RH ADJUST CAM - Call your local BRP dealership |
| 36 |
570044300 |
Idler Wheel 155 |
| 37 |
503162400 |
REAR AXLE - Call your local BRP dealership |
| 38 |
250000019 |
Hex. Screw With Nylon This part replaces 732601002. |
| 39 |
503183300 |
Washer This part replaces 503164300. |
| 40 |
503189809 |
Outer Spacer This part replaces 503161000. |
| 41 |
517225900 |
Flat Washer |
| 42 |
732601003 |
Hex. Screw M10 x 75 |
| 43 |
232006414 |
Hex. Nut M10 X 1.5 This part replaces 228001045. |
| 44 |
732610059 |
Square Nut M10 |
| 45 |
414880400 |
RH Paint Spring |
| 46 |
570014000 |
Idler Wheel 135 |
| 47 |
207063044 |
Hex. Screw M6 X 30 This part replaces 222063065. |
| 49 |
503144100 |
PAINT PIVOT ARM - Call your local BRP dealership |
| 50 |
503144300 |
Upper Axle, Pivot Arm |
| 51 |
503144400 |
LOWER PIVOT ARM - Call your local BRP dealership |
| 52 |
732601197 |
Bolt M8, Short |
| 53 |
503192440 |
Bolt M8 X 248mm This part replaces 732601198. |
| 54 |
572034300 |
Spring Support |
| 55 |
503144500 |
CROSS SHAFT - Call your local BRP dealership |
| 56 |
572035600 |
Plastic Bushing |
| 57 |
503144600 |
Front Cross Shaft |
| 58 |
503144700 |
Rear Cross Shaft |
| 59 |
503144800 |
Spacer |
| 60 |
415005600 |
Idler Wheel 144 |
| 61 |
207182544 |
Hex. Screw M8 X 25 This part replaces 222082565. |
| 62 |
503144900 |
Washer |
| 63 |
414880200 |
RH PAINT SPRING - Call your local BRP dealership |
| 64 |
234100602 |
WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188. |
| 65 |
572039400 |
BUSHING - Call your local BRP dealership |
| 66 |
503145100 |
Axle Center |
| 67 |
503144200 |
SPACER - Call your local BRP dealership |
| 68 |
503095600 |
Cross Shaft |
| 69 |
572035400 |
IDLER WHEEL - Call your local BRP dealership |
| 70 |
503082700 |
Spacer |
| 71 |
572054000 |
Runner Protector |
| 72 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 228761045. |
| 73 |
504108200 |
SHIM - Call your local BRP dealership |
| 74 |
224061121 |
Flat Washer |
| 75 |
503162000 |
CENTER SPACER - Call your local BRP dealership |
| 76 |
371901700 |
CIRCLIP - Call your local BRP dealership |
| 77 |
405404600 |
Ball Bearing |
| 78 |
207103544 |
Hex. Screw M10 X 35 This part replaces 222003565. |
| 414880300 |
LH |
PAINT SPRING - Call your local BRP dealership 414880300 |
| 414880300 |
Ressort |
GA Peint - Appelez votre concessionnaire BRP local 414880300 |
| 414880500 |
LH |
PAINT SPRING - Call your local BRP dealership 414880500 |
| 414880500 |
Ressort |
Peint GA - Appelez votre concessionnaire BRP local 414880500 |
| 503161500 |
LH |
ADJUSTMENT PLATE - Call your local BRP dealership 503161500 |
| 503161500 |
Plaque |
De réglage GA - Appelez votre concessionnaire BRP local 503161500 |
| 572030800 |
Came |
De Réglage GA - Appelez votre concessionnaire BRP local 572030800 |
| 572030800 |
LH |
ADJUST CAM - Call your local BRP dealership 572030800 |
