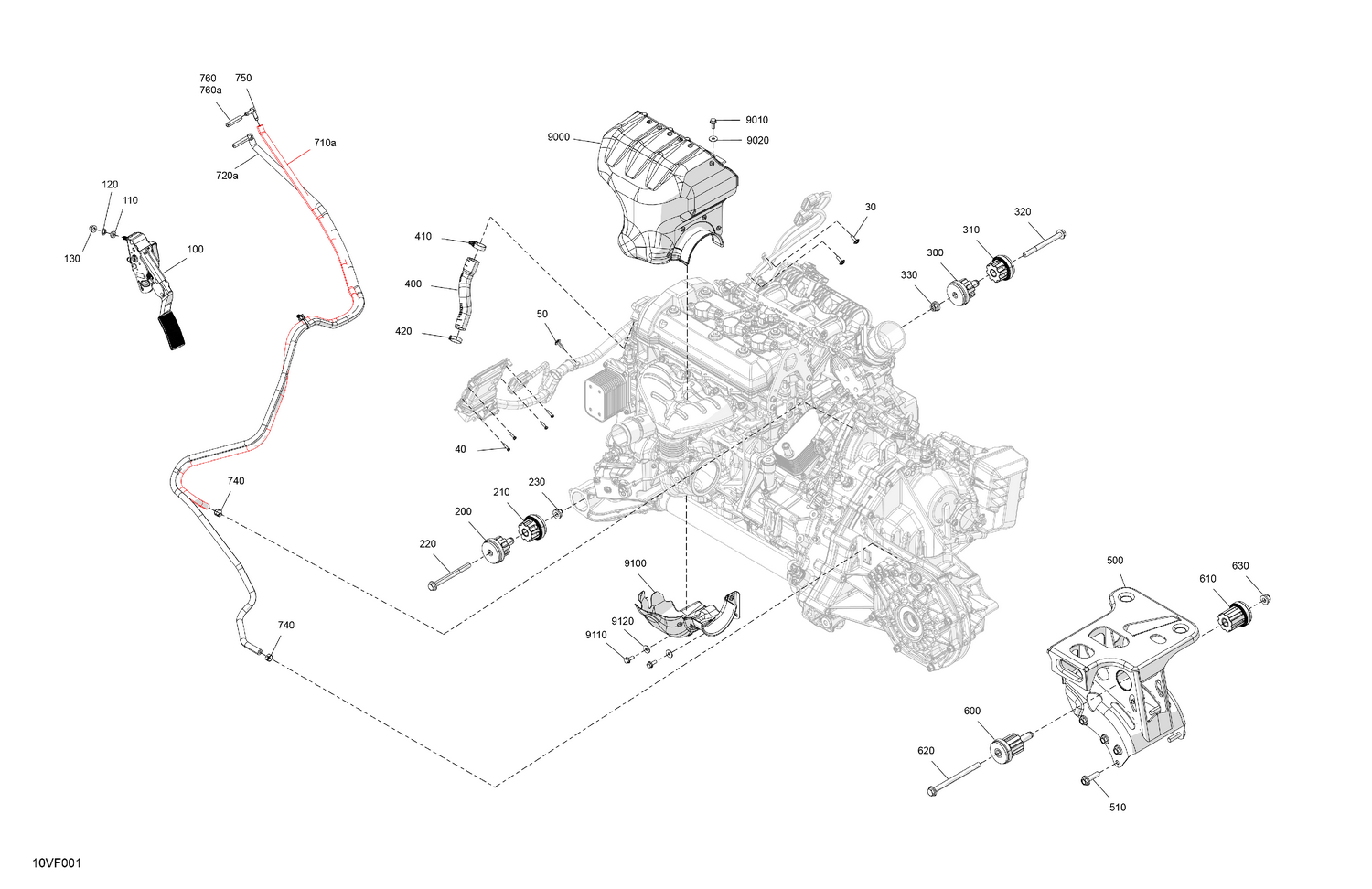

02- Engine - System
Parts (34)
| Ref | Part Number | Description |
|---|---|---|
| 30 | 250000959 | Screw PT Type K-50 X 16 |
| 40 | 241141660 | Hex. Flange Screw K40 X 16 |
| 50 | 250000959 | Screw PT Type K-50 X 16 |
| 100 | 707003505 | Accelerator Pedal |
| 110 | 707001990 | Bushing |
| 120 | 250100031 | Push Nut |
| 130 | 233081416 | Hex. Flange Nut M8 |
| 200 | 707002950 | Vibration Damper |
| 210 | 707003042 | Vibration Damper |
| 220 | 230601046 | Hex Flange Screw DIN.6921 |
| 230 | 233201436 | Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 300 | 707002950 | Vibration Damper |
| 310 | 707003042 | Vibration Damper |
| 320 | 230601046 | Hex Flange Screw DIN.6921 |
| 330 | 233201436 | Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 400 | 707002834 | Crankcase Hose |
| 410 | 293650284 | Gear Clamp |
| 420 | 509000442 | Oeticker Gear Clamp, 25.6-706R |
| 500 | 707002713 | Rear Engine Support |
| 510 | 207503544 | Hex. Flange Screw M10 X 35 |
| 600 | 707003043 | Vibration Damper |
| 610 | 707002955 | Vibration Damper |
| 620 | 230604056 | Hex. Flange Screw M10 X 140 |
| 630 | 233201436 | Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 710a | 219704547 | Hose 6,35 Mm Id 4000Mm Long |
| 720a | 219704547 | Hose 6,35 Mm Id 4000Mm Long |
| 740 | 293650042 | Oetiker Clamp |
| 750 | 293710223 | Pipe Elbow Fitting |
| 760a | XXX | Not Available As Spare Parts |
| 9000 | 420975104 | Upper Heat Shield |
| 9010 | 207661644 | Hex. Flange Screw M6 X 16 |
| 9020 | 234062410 | Flat Washer 6 mm |
| 9100 | 420975106 | Lower Heat Shield |
| 9110 | 207661644 | Hex. Flange Screw M6 X 16 |
