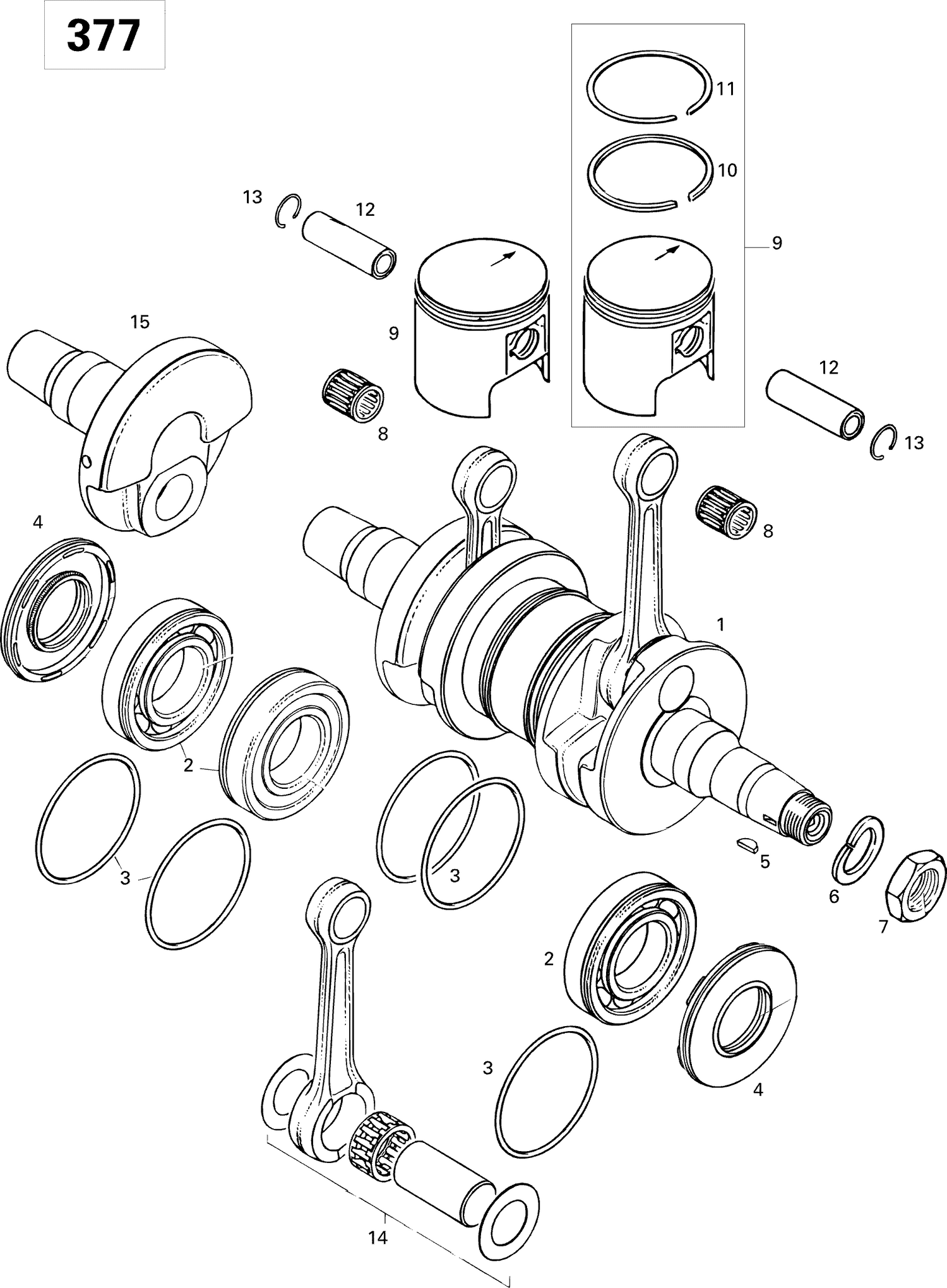

01- Crankshaft And Pistons 377
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420887245 | Crankshaft Ass’y |
| 2 | 420832584 | Bearing_Ball This part replaces 420832231. |
| 3 | 293300022 | O-Ring, 64 mm X 2 mm This part replaces 420250165. |
| 4 | 420831952 | Oil Seal This part replaces 420831950. |
| 5 | 420246055 | Woodruff Key |
| 6 | 420945759 | Lock Washer, 22 mm |
| 7 | 420842239 | Hex. Nut, M22 X 1.5 This part replaces 420842230. |
| 8 | 420932904 | Needle Bearing |
| 10 | 420915890 | Rectangular Ring 62.0 mm |
| 10 | 420915891 | Rectangular Ring 62.25 mm |
| 10 | 420915892 | Rectangular Ring 62.5 mm |
| 11 | 420215210 | Semi-Trapez Ring 62.0 mm |
| 11 | 420215211 | Semi-Trapez Ring 62.25 mm |
| 11 | 420215212 | Semi-Trapez Ring 62.5 mm |
| 12 | 420916260 | GUDGEON PIN - Call your local BRP dealership |
| 13 | 420945735 | Piston Circlip |
| 14 | 420996334 | Rod repair kit |
